COMPONENTS TESTING

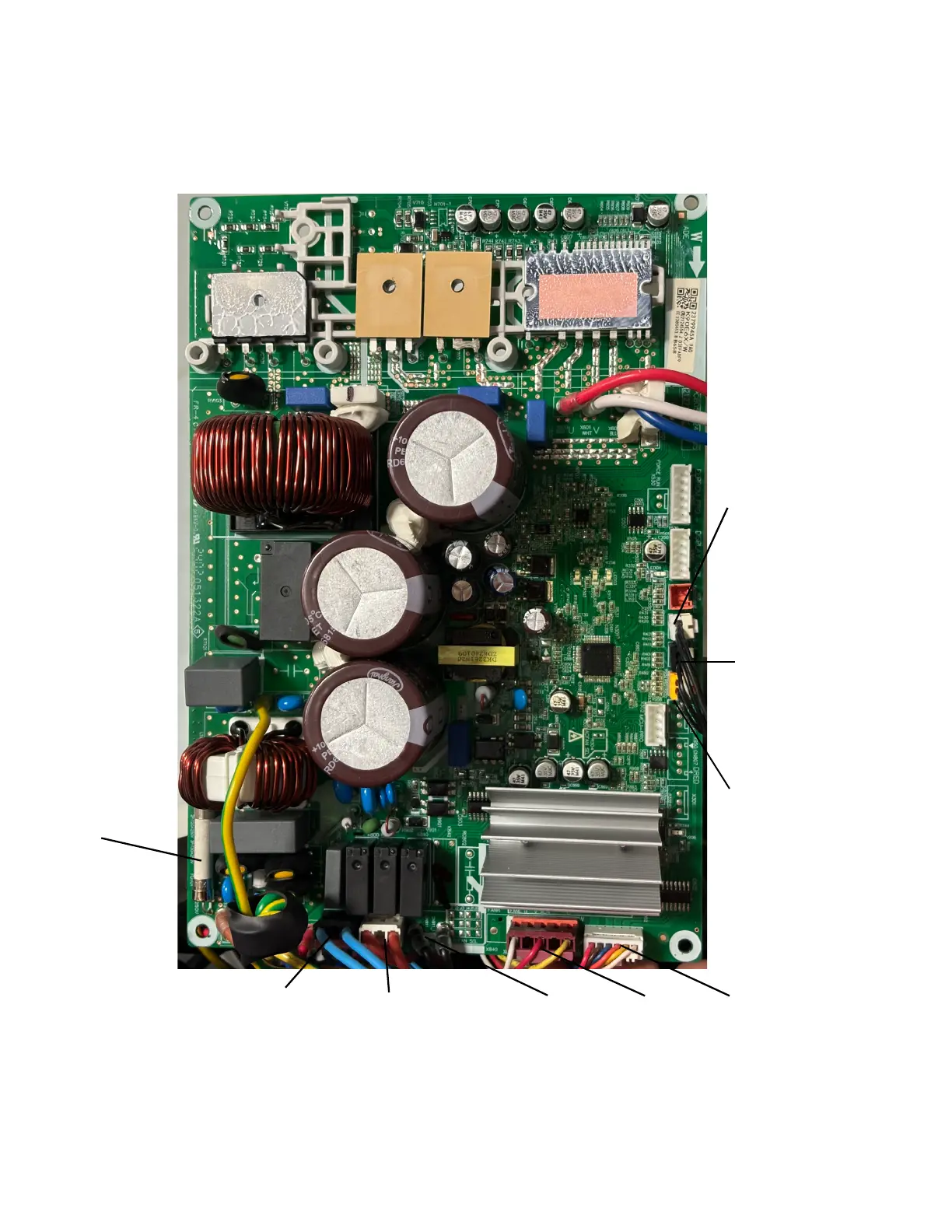

Outdoor Unit - Main PCB ID
FPHSR18A3B
Yellow connector
CN904
Outdoor Ambient
Temp Sensor
Black Connector
CN 905
Condenser Coil
Temp Sensor
White Connector
CN 907
Compressor Discharge
Temp Sensor
L1 (Brown)
Ground (Ylw/Grn)
L2 (Blue)
SI (Red)
CN 910
Compressor Heater
(Orange Wires)
CN 906
Reversing Valve
(Blue Wires)
CN 911
Basepan Heat
(Black wires)
CN 909
Outdoor
Fan Motor
CN 952
EEV
FUSE
