COMPONENTS TESTING

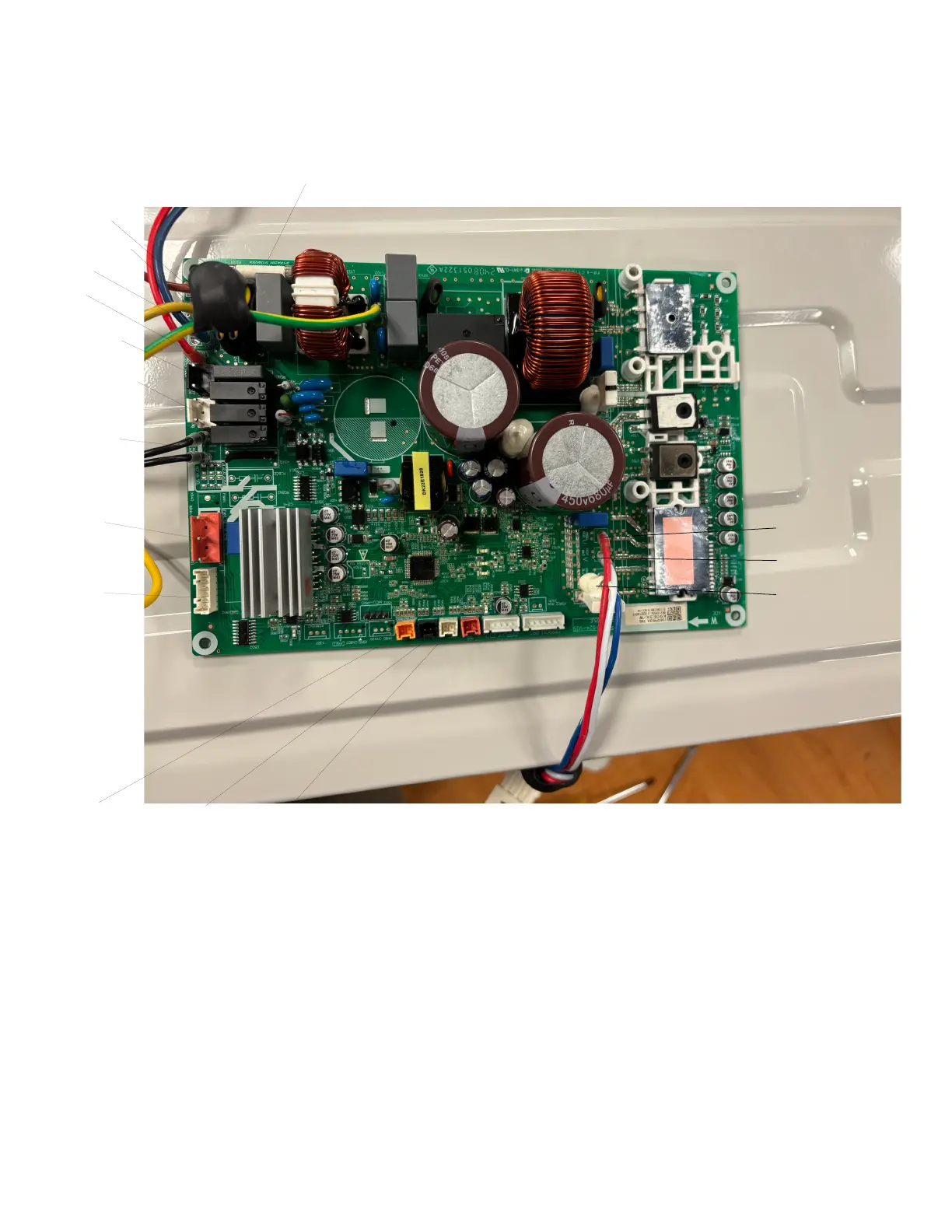

Outdoor Unit - Main PCB ID
FPHSR09A3B, FPHSR12A3B
U
V
W
Out to Compressor
L1 (Brown)
Ground (Ylw/Grn)
L2 (Blue)
SI (Red)
CN 910
Compressor Heater
(Orange Wires)
CN 906
Reversing Valve
(Blue Wires)
CN 911
Basepan Heat
(Black wires)
CN 909
Outdoor
Fan Motor
Yellow connector
CN904
Outdoor Ambient
Temp Sensor
Black Connector
CN 905
Condenser Coil
Temp Sensor
White Connector
CN 907
Compressor Discharge
Temp Sensor
Fuse 9-12k T15A 250V 18k T20A 250V 24-36k T30A250V
CN 952
EEV
