Friedrich FPHW093B - Fphsr24 A3 B

85 PB
COMPONENTS TESTING

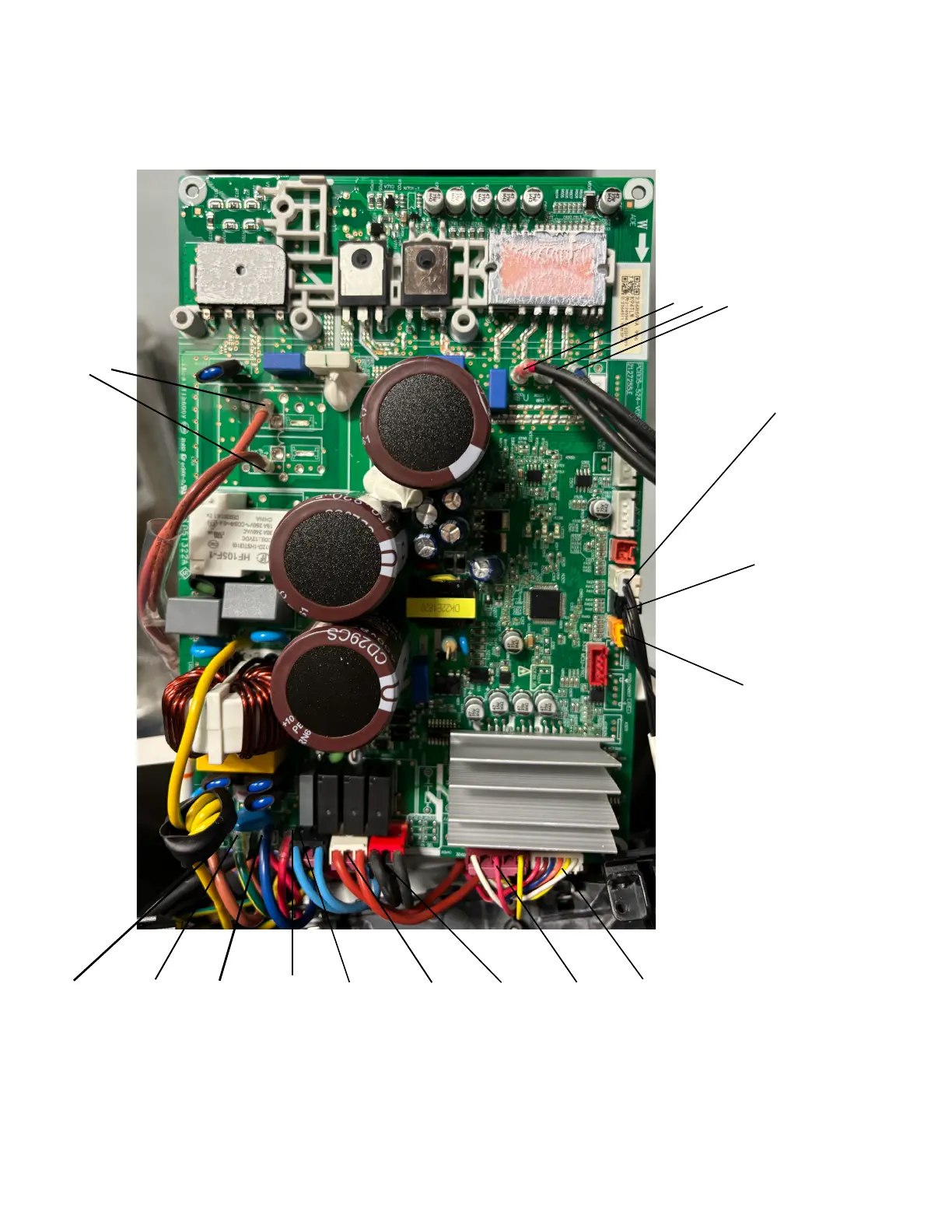

Outdoor Unit - Main PCB ID
FPHSR24A3B
U V W
Reactor
White Connector
CN 907
Compressor Discharge
Temp Sensor
Black Connector
CN- 905
Condensor Coil
Temp Sensor
Yellow Connector
CN 904
Outdoor Ambient
Temp Sensor
L1 (brown Ground
L2 (Blue)
SI (Red) Reversing
Valve
CN 906
Compressor
Heater
CN 910
Basepan
Heater
CN 911
Outdoor
Fan
Motor
CN 909
EEV
CN 952
