Bumper assembly:
I. Support the Robomow on its rear bumper but be careful not to damage any of its exposed
internal parts. Make sure the front metal strip is properly located all the way around, as
illustrated in Figure 4.2.10.6.
J. Take the new front bumper and apply the soap and water solution on all holding protrusions.
Place the new front bumper in its general location, as illustrated in Figure 4.2.10.7.

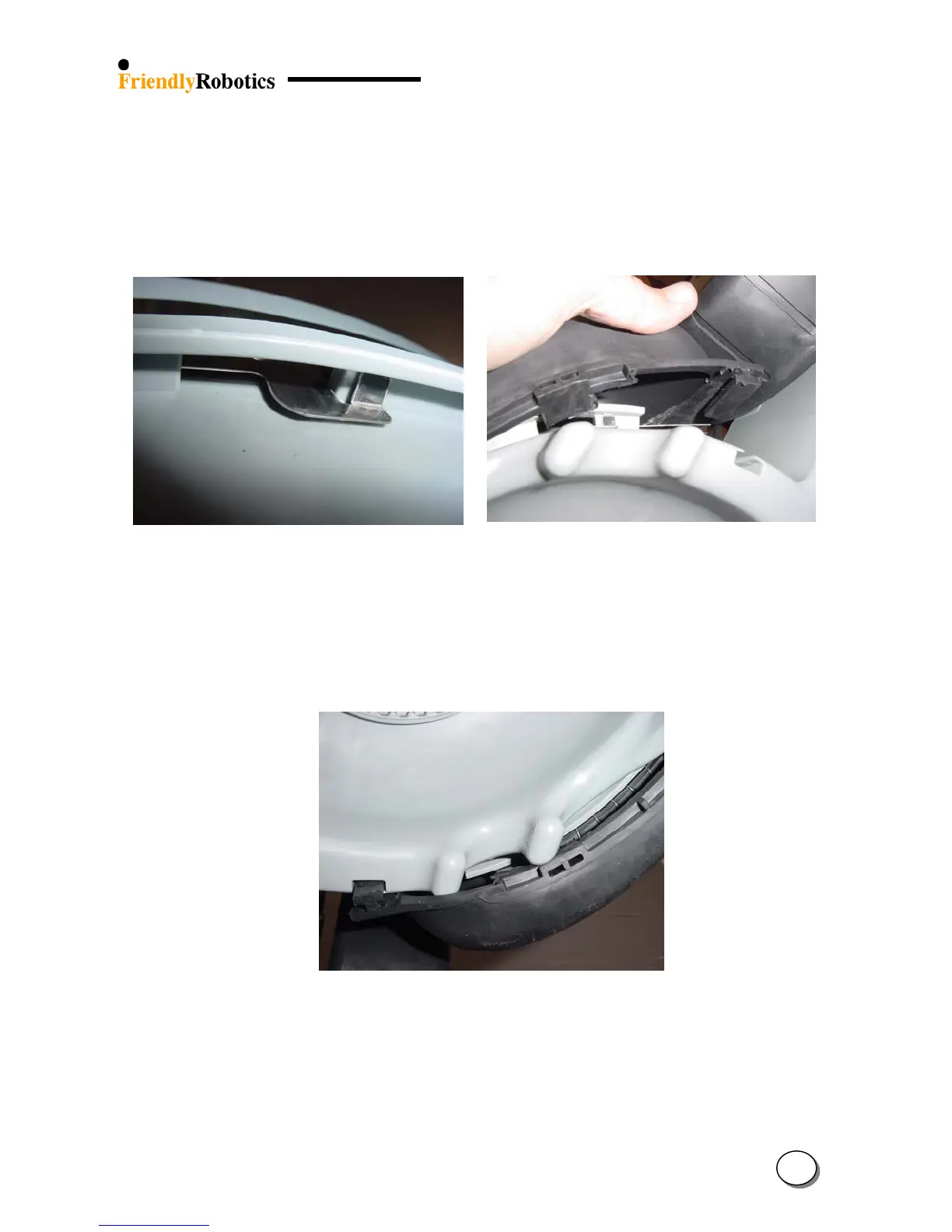

Figure 4.2.10.6 Figure 4.2.10.7
Properly located front metal strip Placement of the front bumper in
its general location
Figure 4.2.10.8
Insertion of the
T’ holder
K. At first, insert the top ‘T’ holder into its place in one side, as illustrated in Figure 4.2.10.8.
Repeat this step for the ‘T’ holder on the second side.
L. Place both bumper cables above the upper edge of the bumper.
4
