Plastic rib

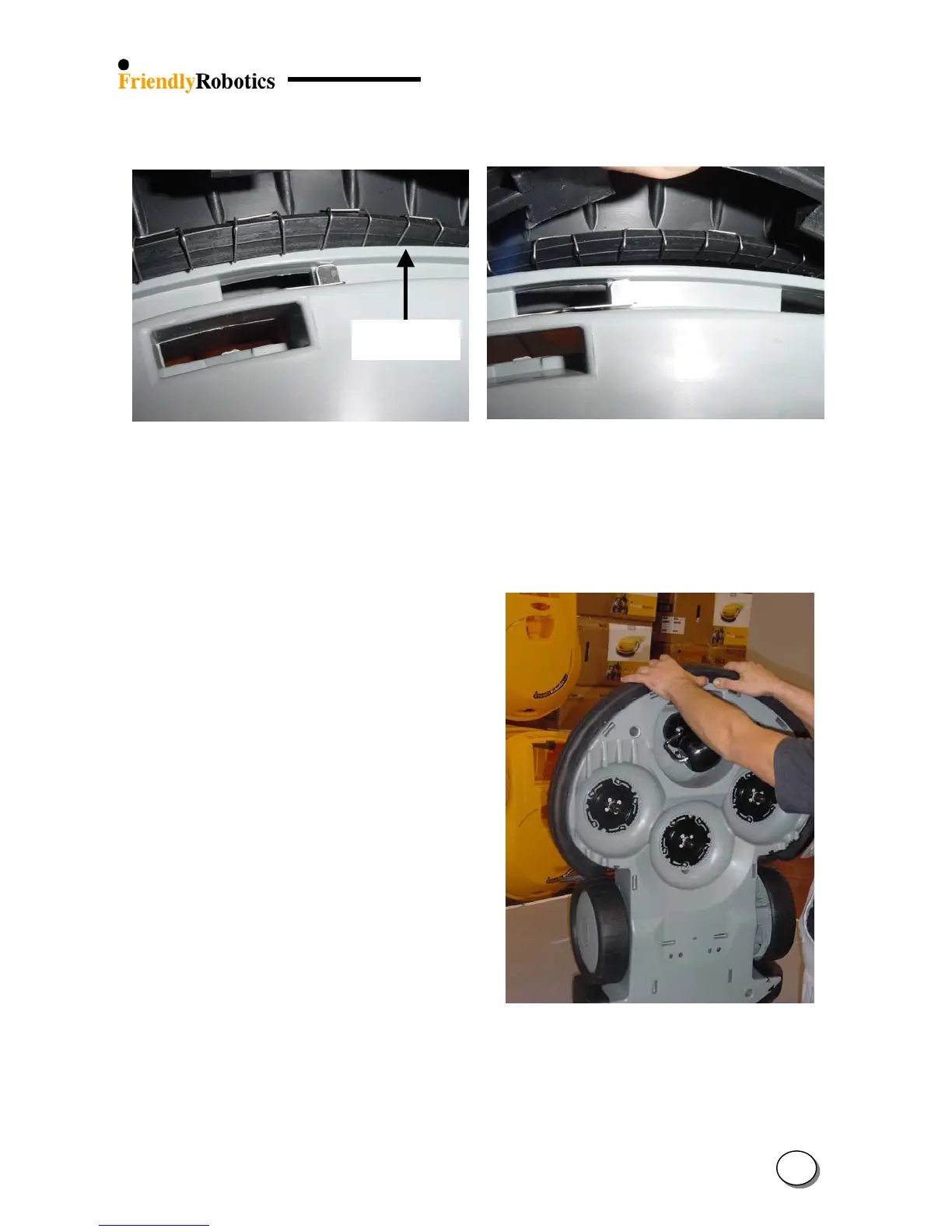

M. Make sure the bumper’s rubber rib with the metal spring is not caught under the plastic rib that
holds the metal strip, as illustrated in Figures 4.2.10.9 and 4.2.10.10
Figure 4.2.10.9 Figure 4.2.10.10
Improperly seated contact spring Placement of the front bumper in
N. Identify the underside of the holding protrusions as illustrated in Figure 4.2.10.11. Use both of
your thumbs and press it into its rectangular hole in the gray plastic base, as illustrated in
Figure 4.2.10.11.
Figure 4.2.10.11
Thumb pressing of the
rotrusion
O. Repeat step N for all the protrusions along the entire length of the bottom edge of the front
bumper.
P. Verify that all protrusions went all the way through the rectangular hole by pulling back on the
bumper’s top edge, as illustrated in Figure 4.2.10.12.
