1.1.3 Robomow internal views
4
Front right
Wire sensor
SPP0018A
Right Mowing
Motor
MSB0065B
Front left
Wire sensor
SPP0018A
Drive Motor
SPP0008B
Thermistor Kit
SPP0020A
Rear right
Wire sensor
SPP0018A
Rear left
Wire sensor
SPP0018A
Cover-base seal ring
GEN0182A
Ground
clearance limiter
GEN0202A
Main Board
SPP0019B
Drop-off Board
SPP0005B
Battery contacts
(RL side)
SPP0014A
Front wheel stopper
GEN0207A
& Spring GEN0208A
Odometer board R
ESBC024C
Center
Mowing Motor
MSB0065B
Odometer board L
ESBC025C
17
21
22
27
&
28
17
82
12
12
Left Mowing
Motor
MSB0065B
12
23
24
25
18
19
20
17
17

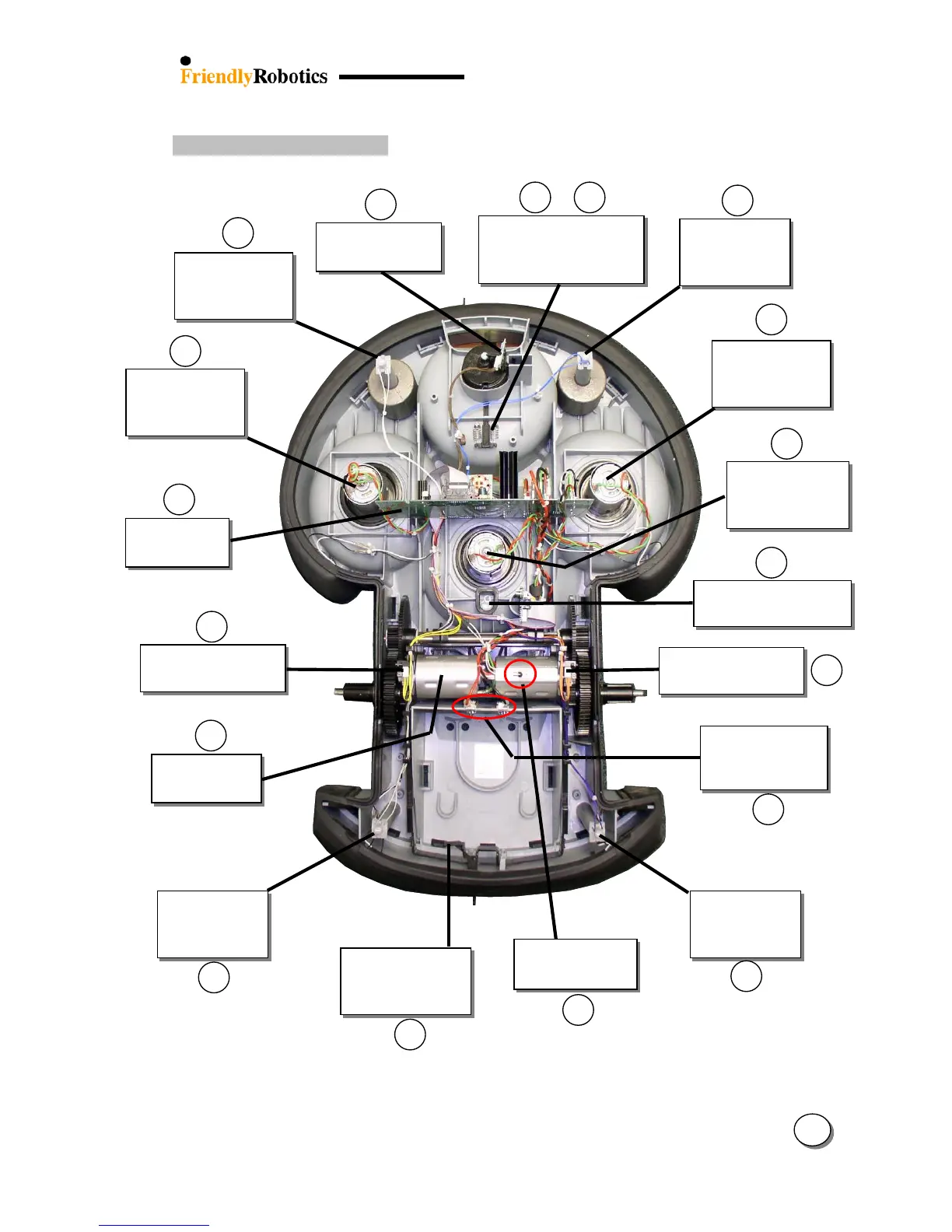

Figure 1.1.3 Internal view
