On Board Hardware
Resource
 4 x LED (Green)
 1 x Power LED (Red)
 1 x Audio(WM8960)
 1 x Ethernet(DM9000)
Power
 4.7V to 5.6V (support sleep mode)
PCB Dimension
 Six layered board
 Dimension: 74 x 55 x 11(mm)

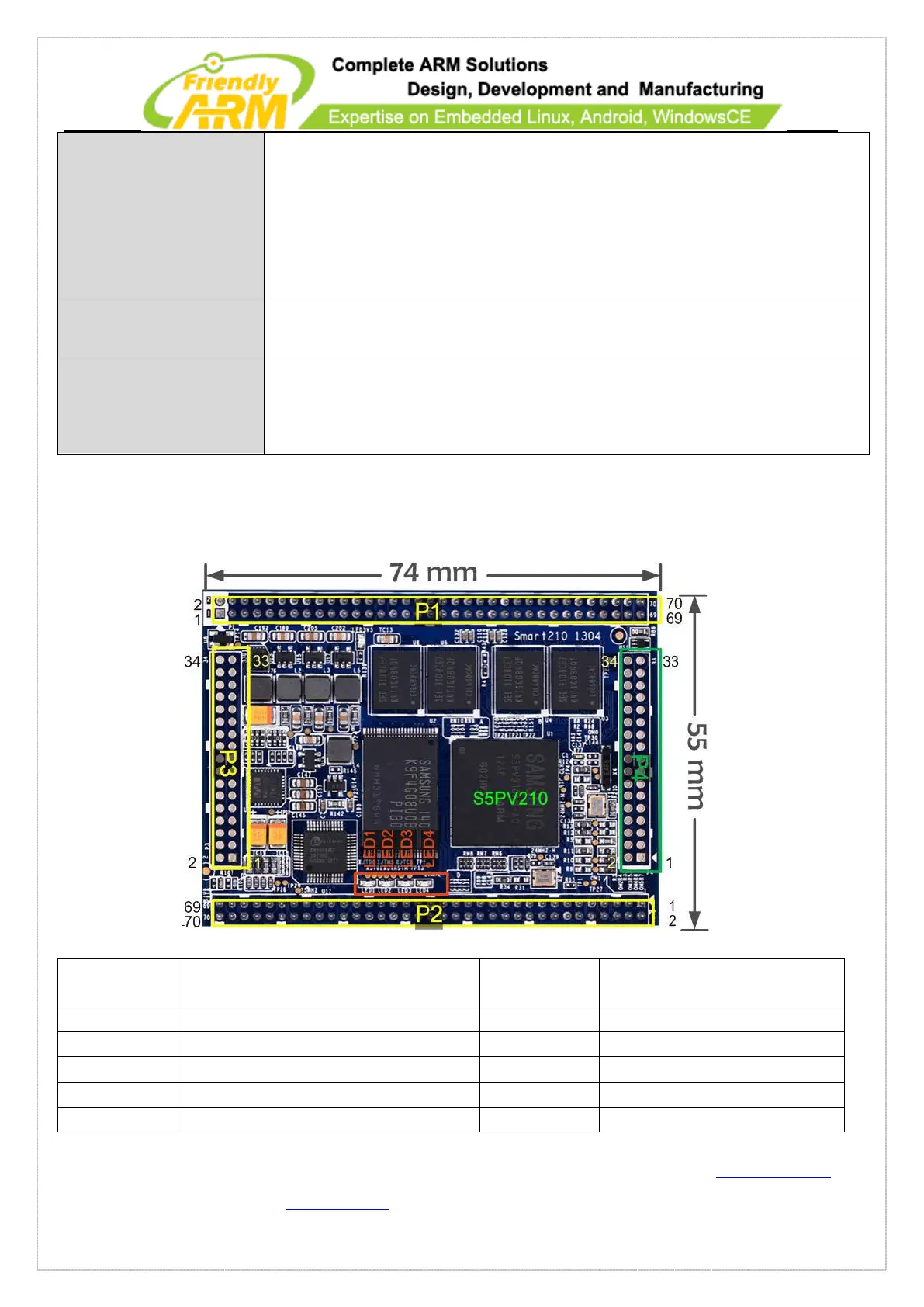

1.2.2 Smart210 CPU Board Pin Spec
P1
Spec
P1
Spec
P1.1
5VDC Input
P1.2
GND
P1.3
VDD_RTC
P1.4
WIFI0_RESET_GPIO
P1.5
Manual Reset Input(Active Low)
P1.6
WIFI0_PD_GPIO
P1.7
XmmcCMD0
P1.8
Xmmc2CMD
P1.9
XmmcCLK0
P1.10
Xmmc2CLK
