21
VD16
22
VD17
23
VD18
24
VD19
25
VD20
26
VD21
27
VD22
28
VD23
29
GND
30
PWM1/GPD0_1
31
XEINT10/GPH1_2
32
nRSTOUT
33
VDEN
34
VSYNC
35
HSYNC
36
VCLK
37
I2CSCL2
38
XEINT14/GPH1_6
39
I2CSDA2
40
XEINT15/GPH1_7
41
GND
Note: the S5PV210 has three I2Cs and here we use I2C2.
Please refer to the schematics in the shipped CD for the exact connection details between each pin
and CPU. The information provided here is for reference

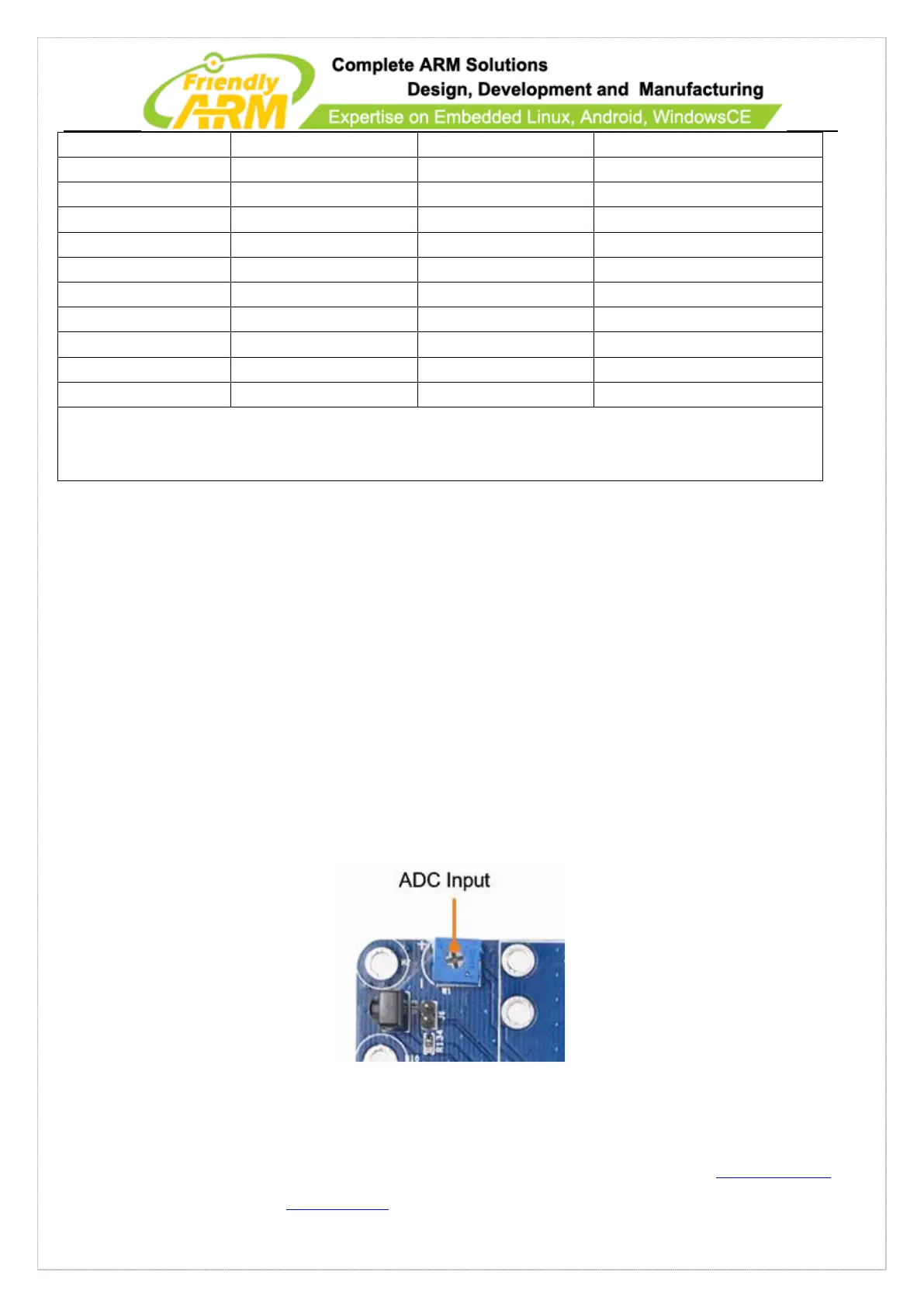

1.7.8 ADC
The Smart210 SDK 1305 doesn’t have ADC inputs.
The TinySDK/ADK has 6 ADC channels for different purposes:
- AIN0 is connected to a variable resistor W1 for testing
- AIN0,1,4, 5, 6 and 7 are connected to CON6
The S5PV210’s AD conversion can be configured to 10-bit or 12-bit data for 0V ~
3.3V
Note: the Smart210 SDK 1305 doesn’t have this
