3 Technology

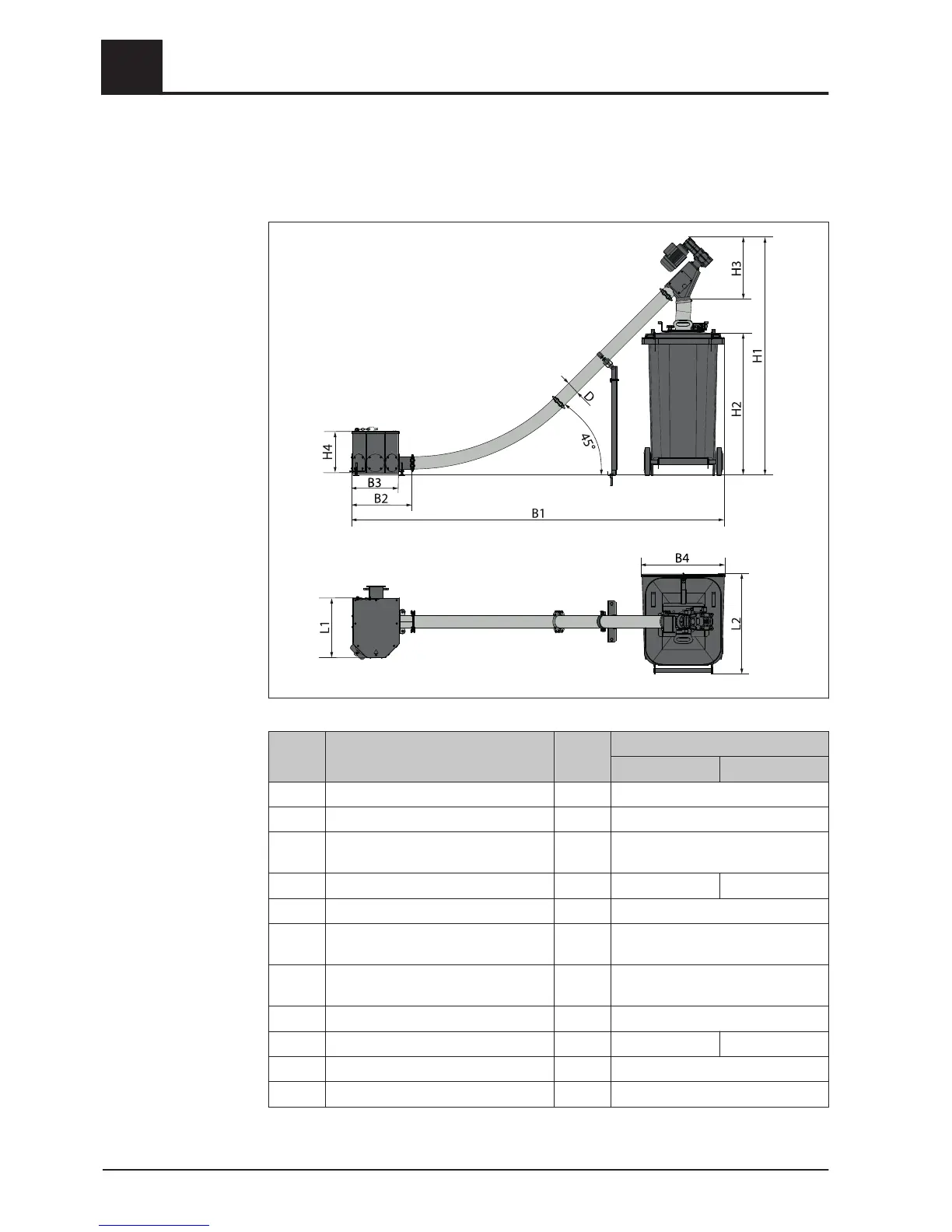

3.1 Dimensions of ash transfer box for T4 / TX
Dimensi
on
Description Unit Ash discharge system for
T4 TX
H1 Total height of ash discharge system mm 1,725
H2 Height of standard dustbin mm 1,040
H3 Height of drive unit and gravity shaft
(excluding high-temperature hose)
mm 470
H4 Height of ash transfer box mm 305 325
W1 Total width of ash discharge system mm 2,700
W2 Width of ash transfer box
incl. connection flange
mm 430
W3 Width of ash transfer box
without connection flange
mm 330
W4 Width of standard dustbin mm 600
L1 Length of ash transfer box mm 430 340
L2 Length of standard dustbin mm 725
D Hose diameter mm 90
3
Technology
Dimensions of ash transfer box for T4 / TX
