Froling T4 - Standard Dustbin

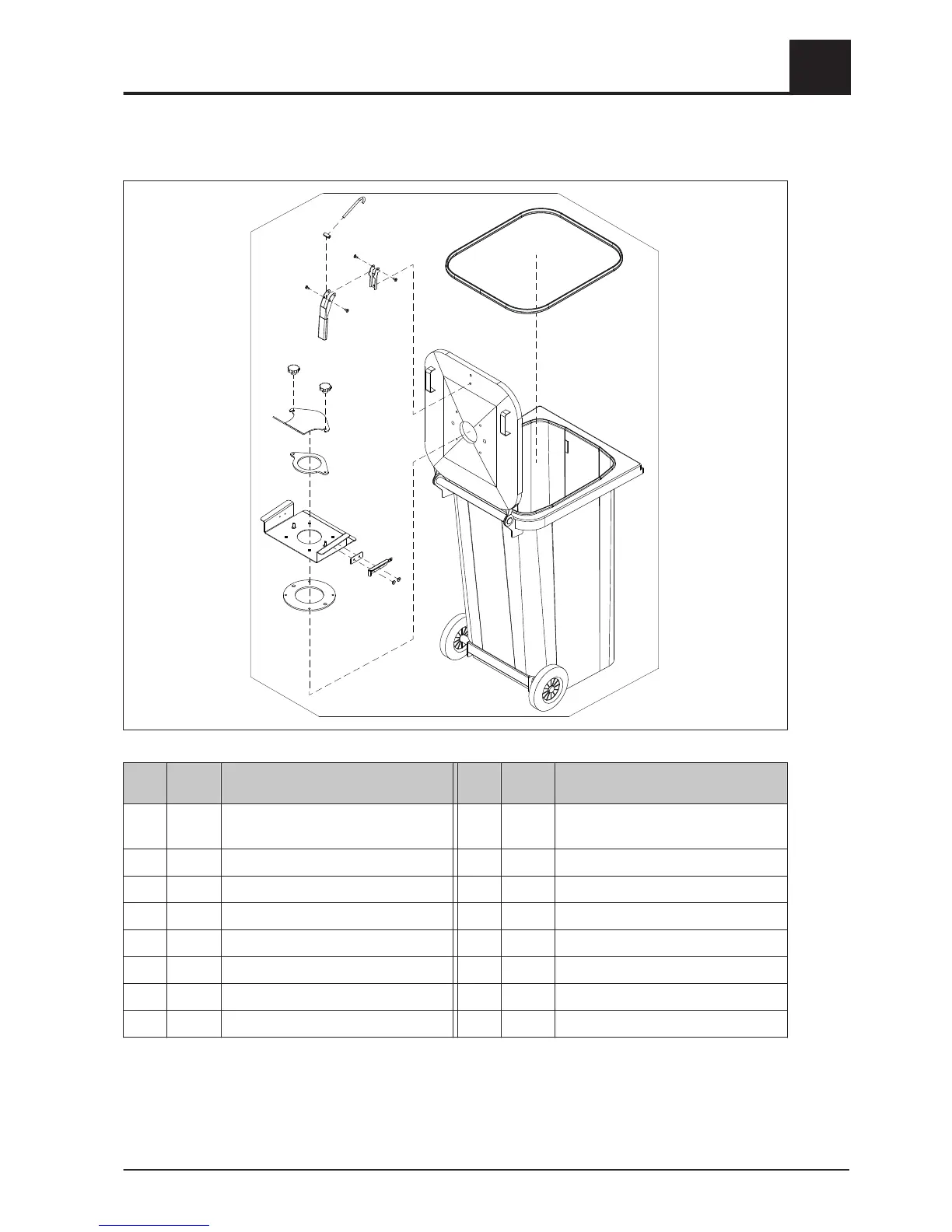

4.5.4 Standard dustbin
1
2
4
3
5
6
7
8
8
9
1
0
11
11
12
13
13
13
13
14
15
16
Item Qty
[units]
Description Item Qty
[units]
Description
1 1 Standard dustbin with
attachments
9 1 Silicone foam seal
2 1 240 l standard dustbin 10 1 Locking plate
3 1 Rubber seal for profile 11 2 Star knob
4 1 Silicone foam seal 12 1 Bracket
5 1 Flange bracket 13 4 M6x9 flat-headed screw
6 1 Spacer plate 14 1 Clamping plate
7 1 Key plate 15 1 Bearing pin
8 2 Bush 16 1 Hooked bracket
Assembly
4
Assembly overview
Installation and Operating Instructions Ash discharge into a standard dustbin | M1590214_en 19
