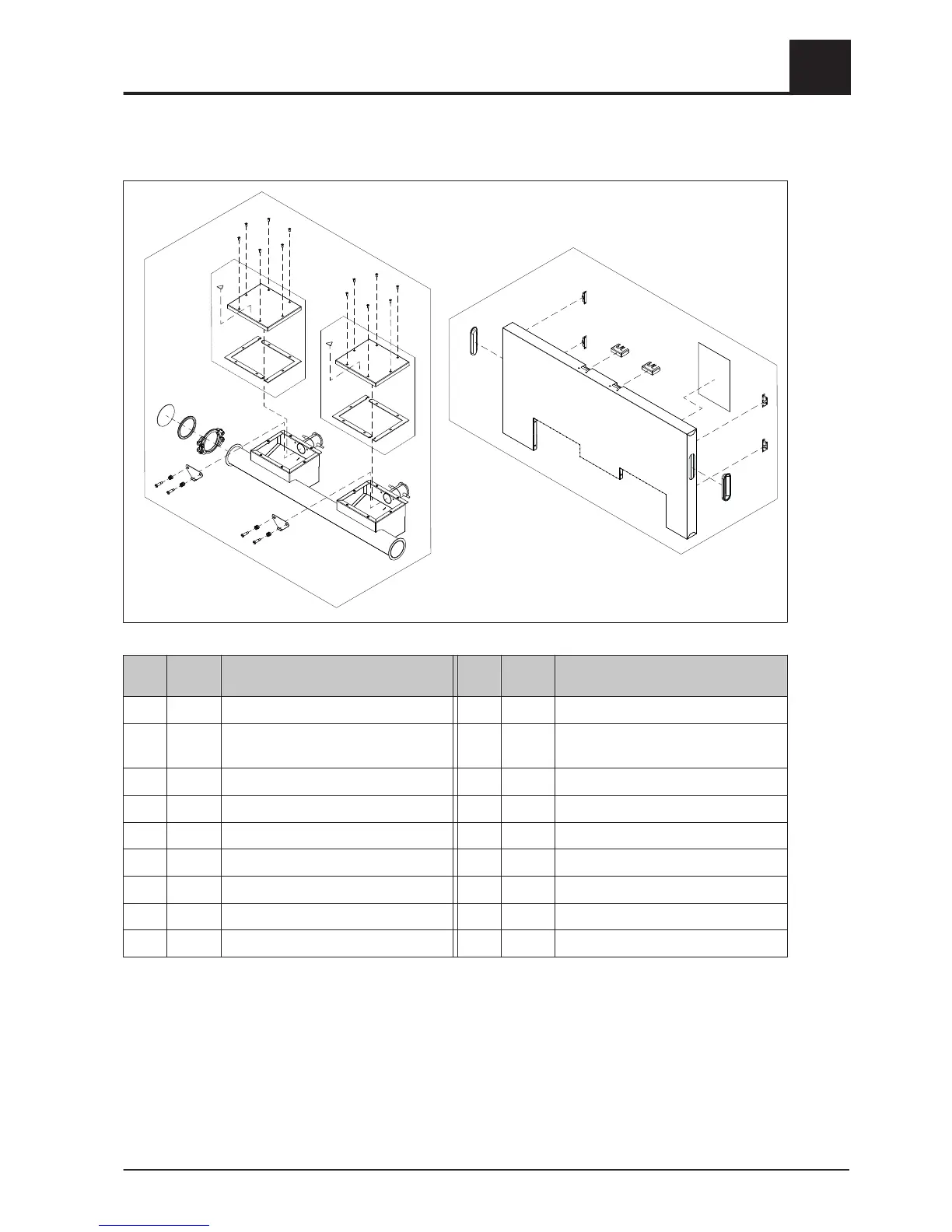

4.5.2 Ash transfer box for P4 Pellet
1
2
3
3
4
4
4
4
5
5
5
5
6
7
8
9
9
10
11
11
12
12
12
12
12
12
12
12
12
12
12
12
10
10
10
13
14
14
15
15
15
15
16
16
17
Item Qty
[units]
Description Item Qty
[units]
Description
1 1 Complete ash transfer box 10 4 Silicone foam seal
2 1 Welded-assembly ash transfer
box
11 2 Sticker, “Warning! Hot surface!”
3 2 Locking plate 12 12 Countersunk bolt
4 4 Pressure spring 13 1 Cladding (underneath, complete)
5 4 Flat-headed screw 14 2 Grip recess
6 1 Tension ring 15 4 Double ball catch
7 1 Ring seal 16 2 Key plate
8 1 Cover plate 17 1 Sticker, quick reference guide
9 2 Cover, complete
Assembly
4
Assembly overview
Installation and Operating Instructions Ash discharge into a standard dustbin | M1590214_en 17
