Froling T4 - Hose with Screw, Supporting Post and Gravity Shaft

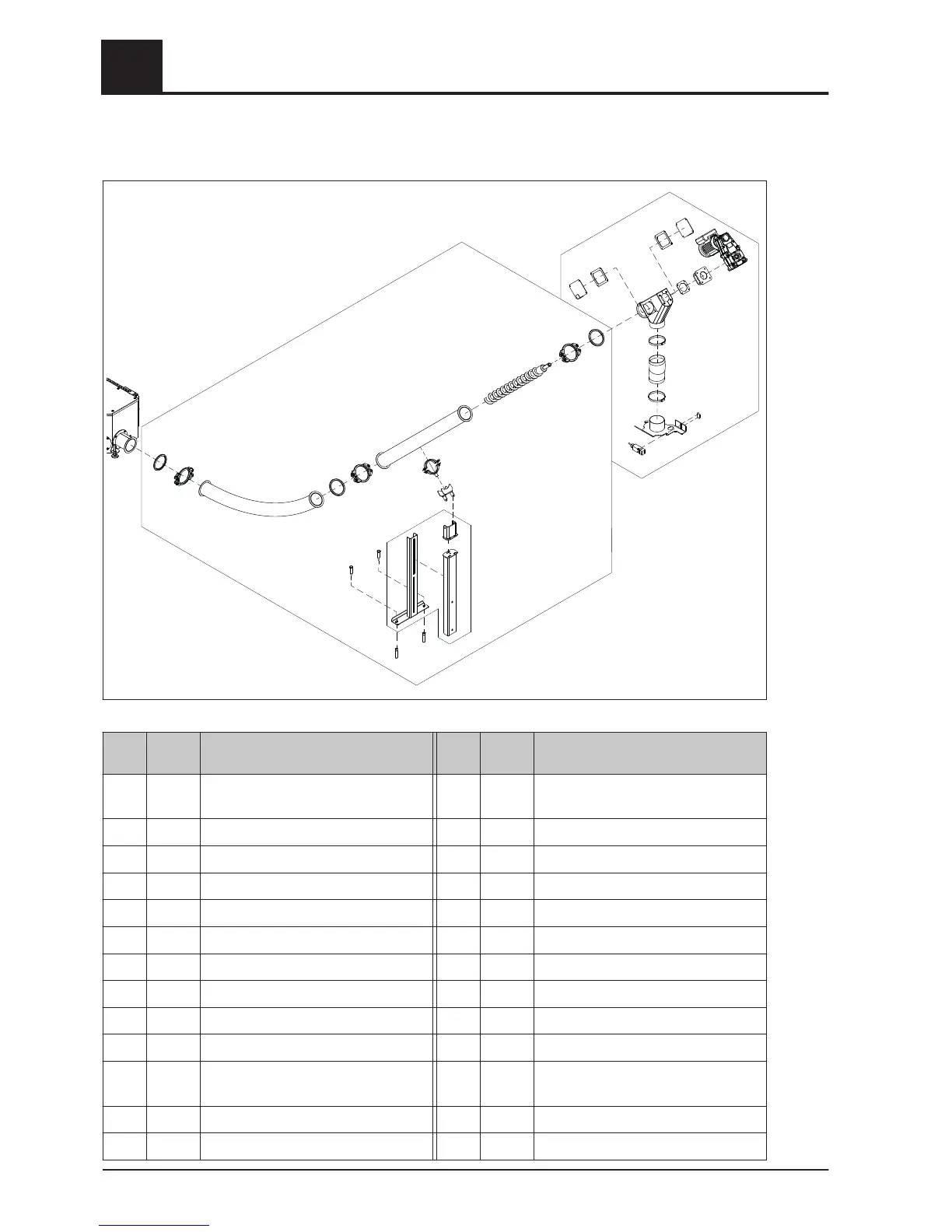

4.5.3 Hose with screw, supporting post and gravity shaft
15
16
17
18
17
18
19
20
19
21
22
23
24
25
26
1
2
3
4
2
3
3
2
5
6
7
8
9
10
11
12
12
13
13
14
Item Qty
[units]
Description Item Qty
[units]
Description
1 1 Hose with screw and supporting
post
14 1 Coreless screw
2 3 Ring seal 15 1 Gravity shaft unit, complete
3 3 Tension ring 16 1 Gravity shaft bracket
4 1 Pipe bend 17 2 Silicone foam seal
5 1 Straight pipe with flange 18 2 Inspection cover
6 1 Pipe clamp 19 2 Hose clamp
7 1 Attachment bracket 20 1 High-temperature hose
8 1 Swivelling supporting post 21 1 Gravity shaft connection flange
9 1 Upper bracket 22 1 Safety switch
10 1 Support plate with rotary disc 23 1 Silicone foam seal
11 1 Ground section for supporting
post
24 1 Adapter flange
12 2 Dowel 25 1 Offset geared motor
13 2 Frame screw 26 1 Counter plate
4
Assembly
Assembly overview
18 Fröling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com
