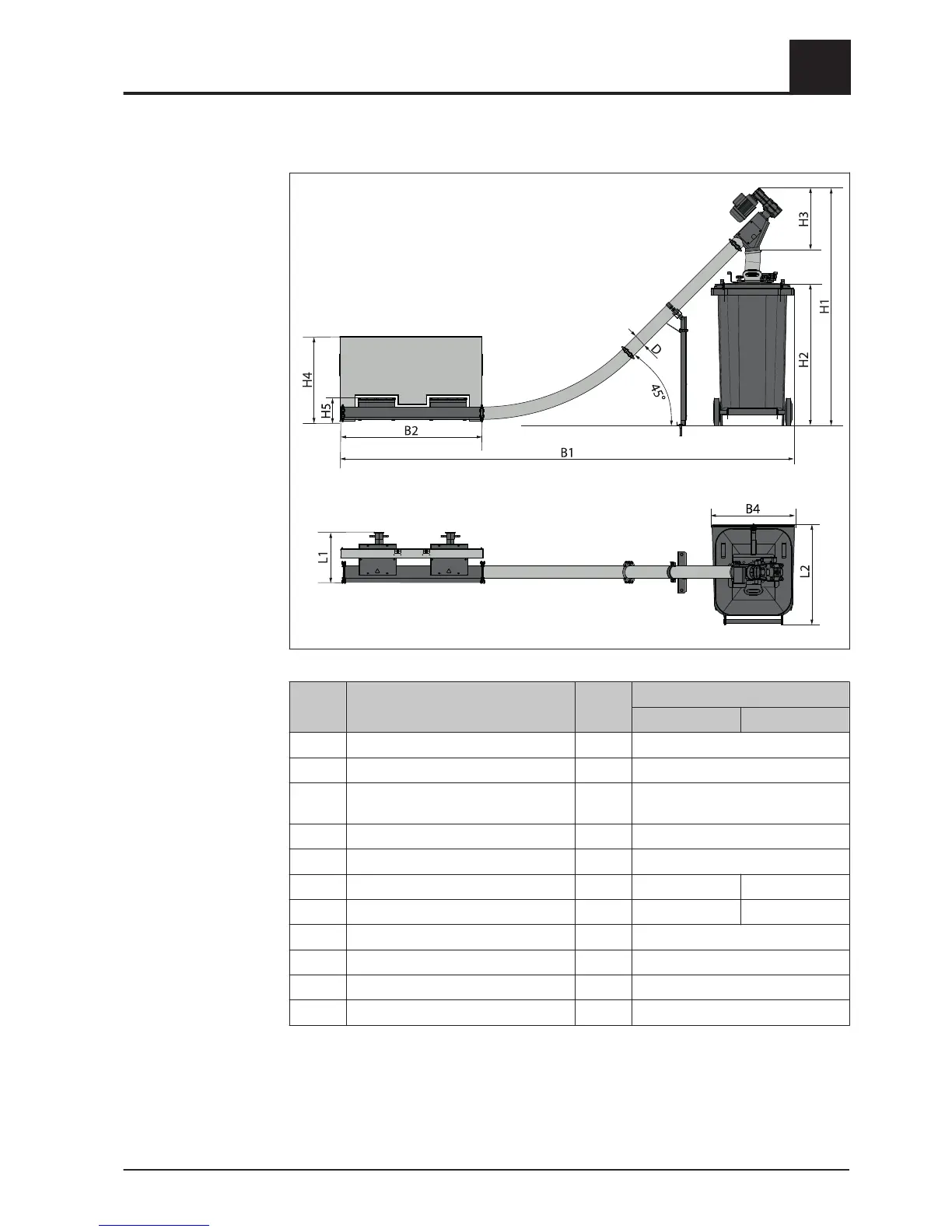

3.2 Dimensions of ash transfer box for P4 Pellet
Dimensi
on
Description Unit Ash transfer box for P4 Pellet
45-60 70-105
H1 Total height of ash discharge system mm 1,725
H2 Height of standard dustbin mm 1,040
H3 Height of drive unit and gravity shaft
(excluding high-temperature hose)
mm 470
H4 Height of cladding mm 615
H5 Height of ash transfer box mm 165
W1 Total width of ash discharge system mm 3,295 3,465
W2 Width of ash transfer box mm 1,020 1,110
W4 Width of standard dustbin mm 600
L1 Length of ash transfer box mm 370
L2 Length of standard dustbin mm 725
D Hose diameter mm 90
Technology
3
Dimensions of ash transfer box for P4 Pellet
Installation and Operating Instructions Ash discharge into a standard dustbin | M1590214_en 11
