4.6 Assembling the ash discharge system
WARNING
Working on a system which is operational/hot:
Risk of serious injuries from automatic start-up of the system and severe burns
from hot parts and the flue gas pipe!
When working on the system:
❒ always wear protective gloves
❒ only operate the boiler using the handles provided
❒ switch off the boiler by tapping “Boiler off” at the mode icon
➥ The boiler follows the shutdown procedure and switches to “Boiler off”
status
❒ switch off the main switch and take precautions to prevent accidental
switching on
❒ allow the boiler to cool off for at least 1 hour
❒ once all of the tasks have been completed, turn the main switch back on and
switch the boiler on in the desired mode
NOTICE! These instructions show how to install the ash discharge system to the right
of the boiler (when looking at it from the front). To install the system in a different
position, modify the ash transfer box and follow the same steps but to the other side of
the boiler.
4.6.1 Modifying the ash transfer box for P4 Pellet (where required)
When delivered, the cover plate is mounted to the left-hand side of the ash transfer
box (so that the ash discharge system can be mounted to the right of the boiler).
Where necessary, the ash discharge system can also be installed to the left of the P4
Pellet boiler.
Carry out the following steps to modify the ash transfer box:

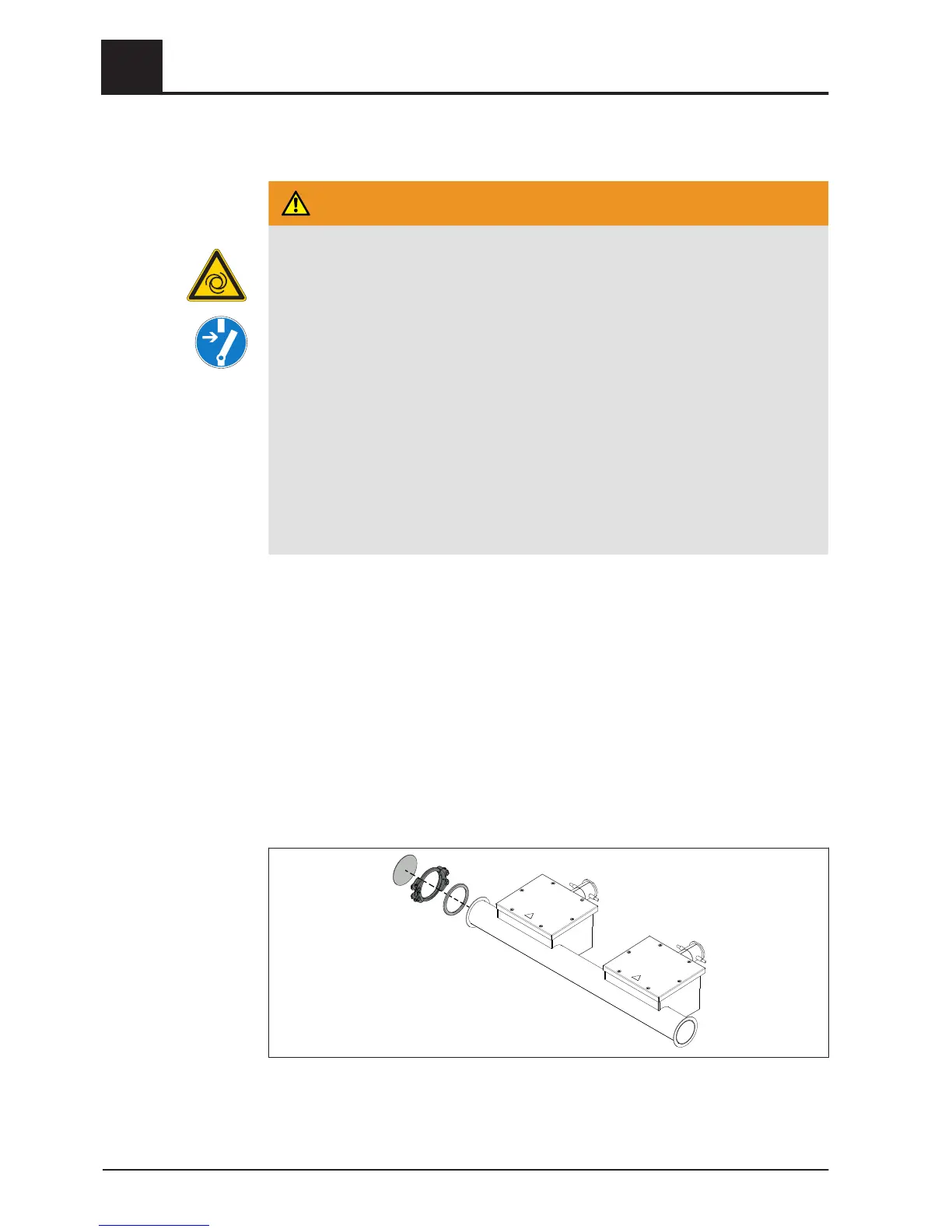

❒ Remove the tension ring and the cover plate with the seal and then reassemble on
the other side
NOTICE! Make sure to complete the following steps on the opposite side!
4
