4.7.5 Connecting the ash discharge system to the P4 Pellet

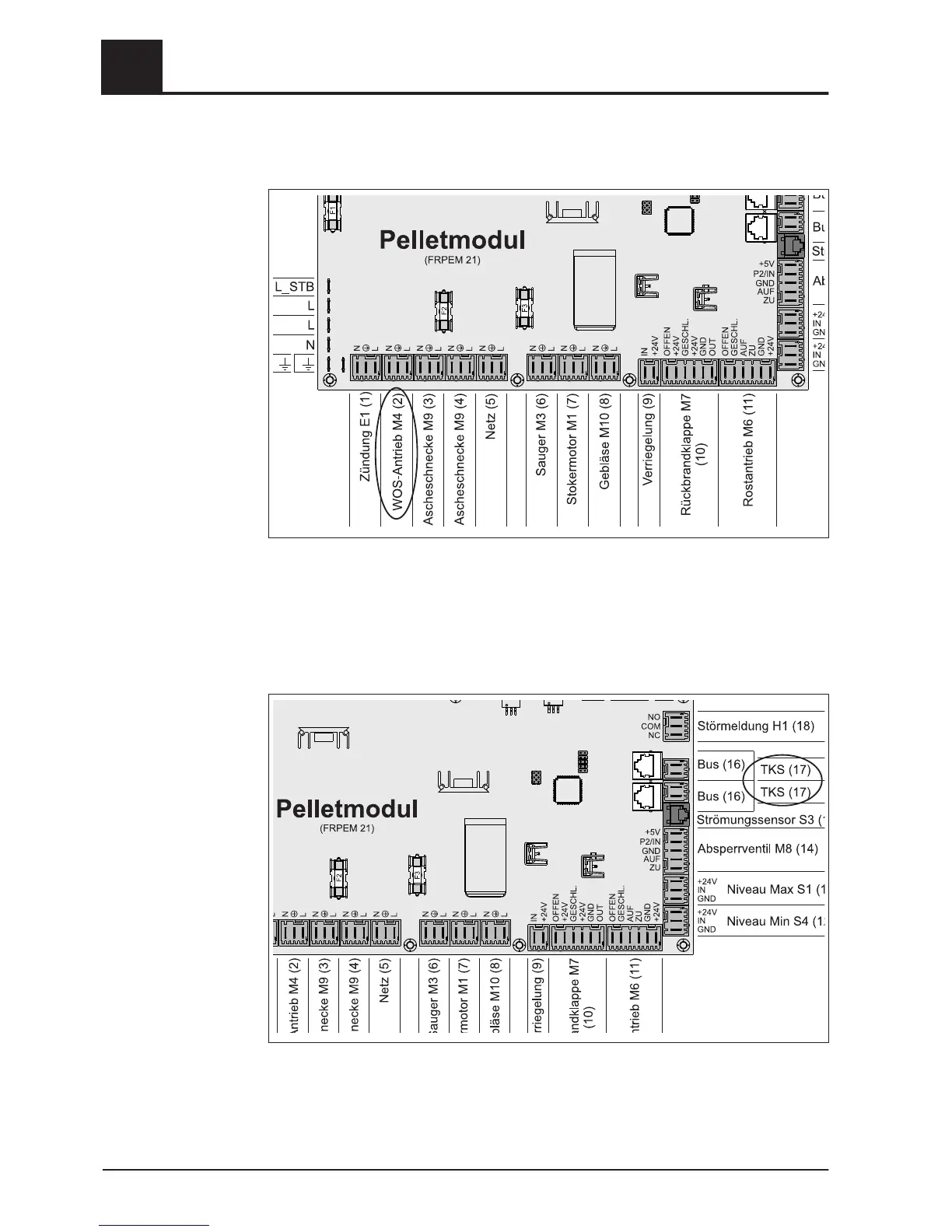

❒ Insert the cables from the drive unit into the boiler controller
❒ Connect a cable additionally to the “EOS drive M4 (2)” output on the pellet
module
➥ the ash discharge system runs simultaneously with the EOS
➥ no noise pollution during the set “off times”
4.7.6 Connecting the safety switch on the standard dustbin to the P4 Pellet
❒ Remove any of the boiler safety switches on the pellet module
❒ Connect the plug on the standard dustbin safety switch to the free input
“TKS(17)”
