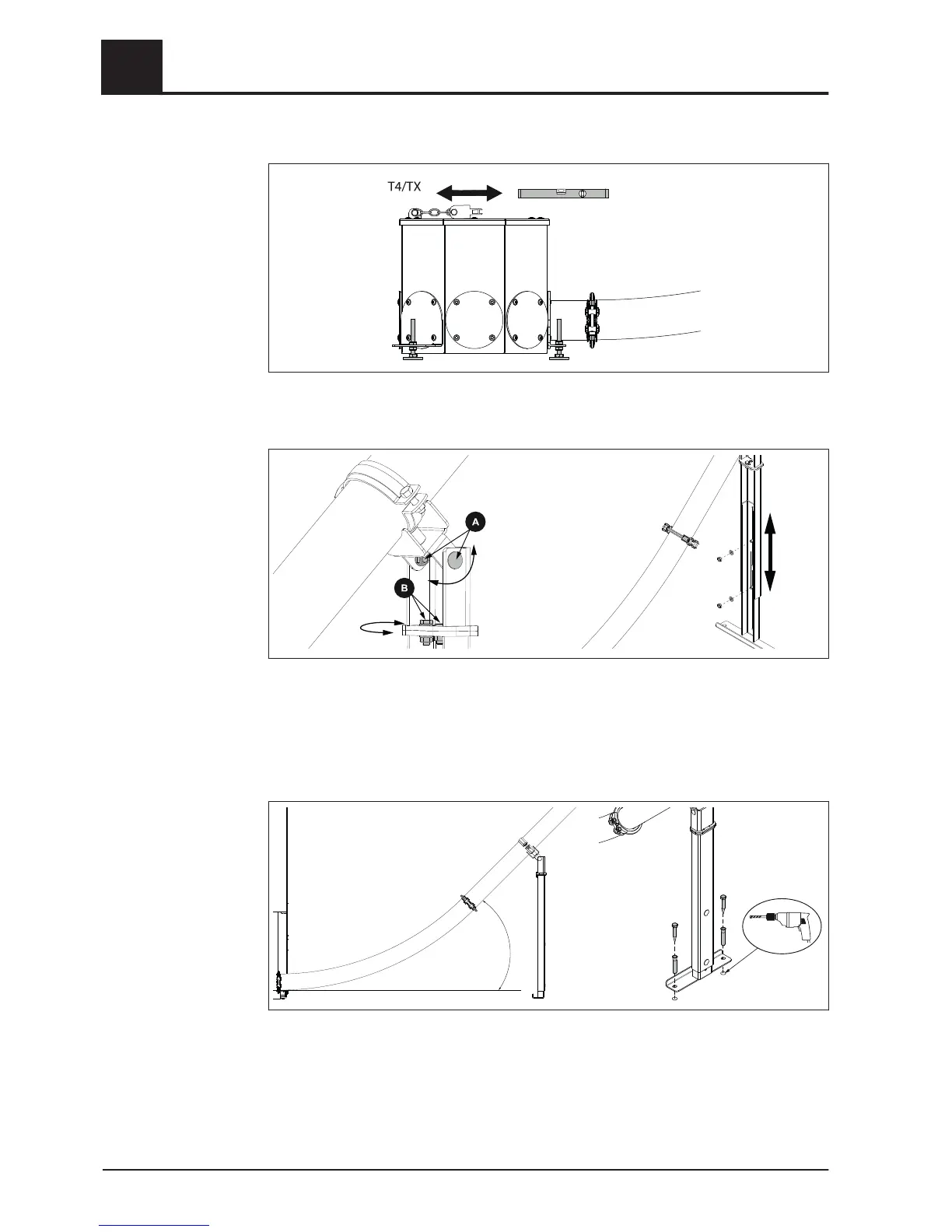

4.6.8 Aligning the ash discharge system
❒ Straighten up the ash transfer box
➥ Adjust the supporting posts as required
❒ Loosen the screws on the supporting post bracket
➥ Set the correct angle (A)
➥ Rotate the supporting post if necessary (B)
❒
Loosen the screws on the supporting post stand
➥ Set the correct height
4 5 °
❒ Align the discharge pipe
➥ Angle of pipe: 45°
❒
Tighten the screws on the bracket and supporting post stand
❒ Screw the supporting post into the floor
NOTICE! The material supplied for fixing the supporting post is just a guide. Ensure
you use material best suited to the surface!
For the T4 / TX:
4
Assembly
Assembling the ash discharge system
