4.5 Assembly overview

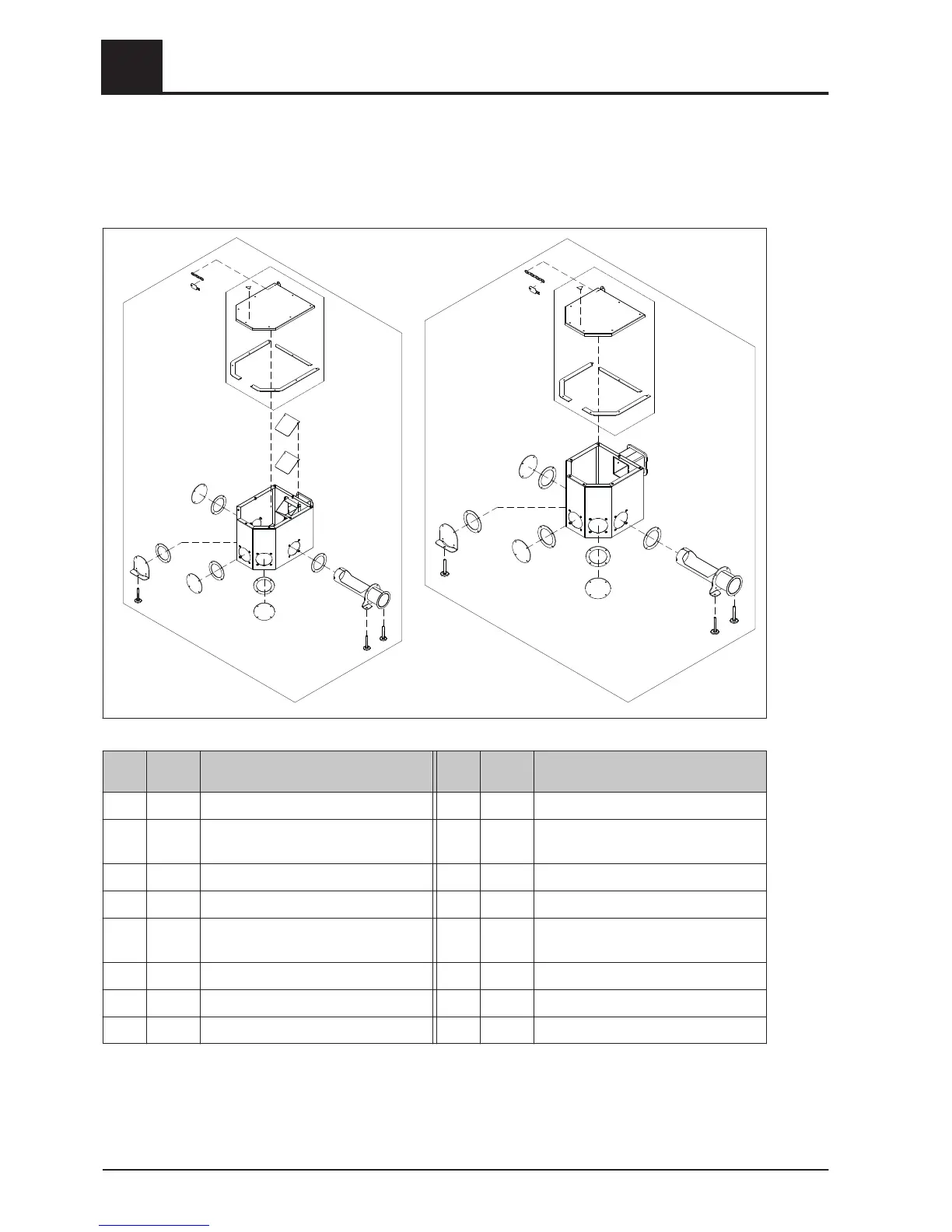

4.5.1 Ash transfer box for T4 / TX
15
15
T4
TX
1
2
3
3
3
3
3
4
4
4
5
6
6
6
7
9
1
0
11
12
13
14
8
1
8
9
10
11
12
13
14
2
3
3
3
3
3
4
4
4
5
6
6
6
7
Item Qty
[units]
Description Item Qty
[units]
Description
1 1 Complete ash transfer box 9 1 Cover, complete
2 1 Welded-assembly ash transfer
box
10 1 Silicone foam seal (left)
3 5 Silicone foam seal 11 1 Silicone foam seal (centre)
4 3 Cover plate 12 1 Silicone foam seal (right)
5 1 Connection flange with guide 13 1 Sticker, “Warning! Hot
surface!”
6 3 Adjustable foot 14 1 Chain
7 1 Cover plate with edge 15 1 Key plate
8 2 Ash flap (only T4)
4
Assembly
Assembly overview
