Froling T4 - Connecting the Ash Discharge System to the T4; Connecting the Safety Switch on the Standard Dustbin to the T4

4.7.3 Connecting the ash discharge system to the T4

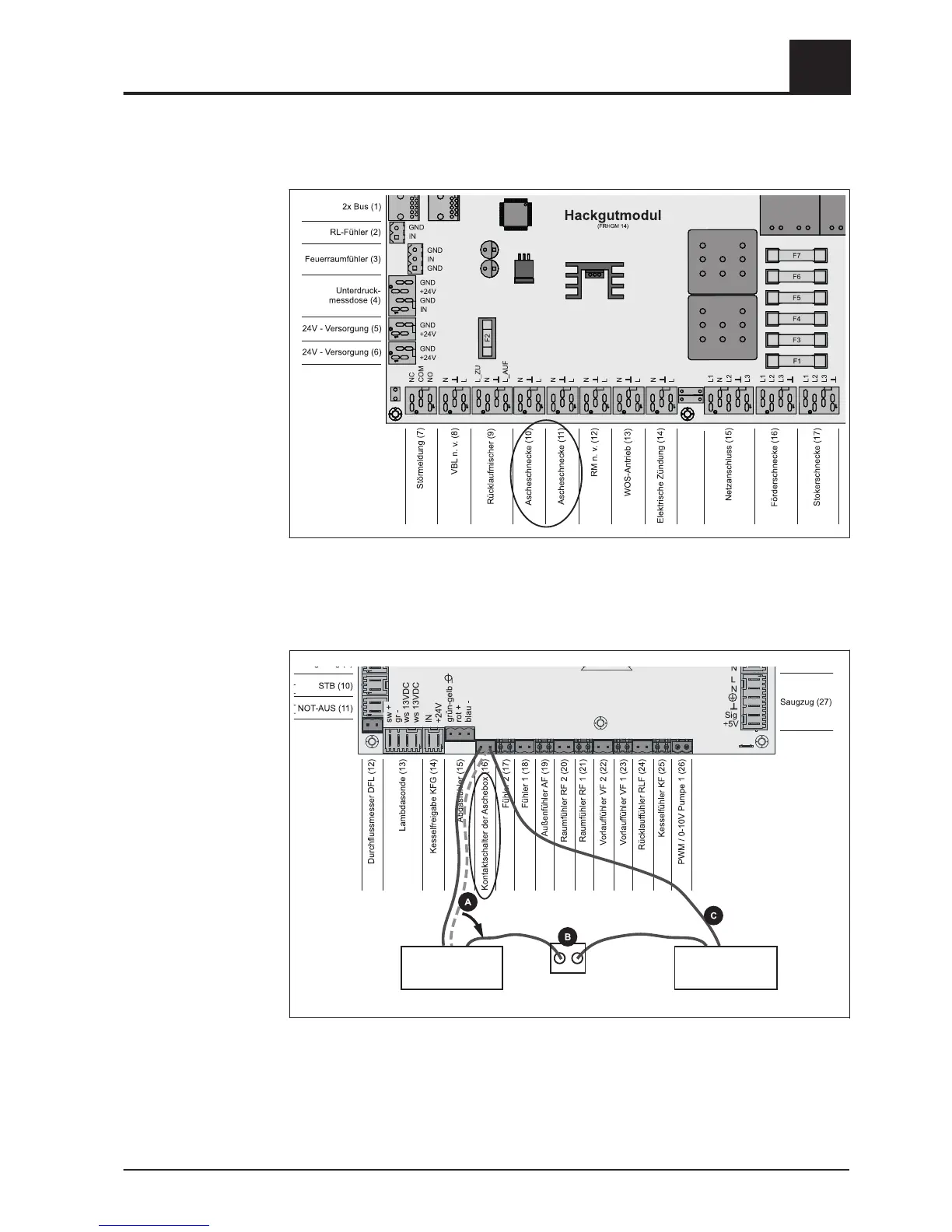

❒ Insert the cables from the drive unit into the boiler controller
❒ Connect the cables to the free “Ash screw (10 / 11)” output on the wood
chip module
4.7.4 Connecting the safety switch on the standard dustbin to the T4
Kernmodul
(FRKEM 25)
Boiler
safetyswitch
Standarddustbin
safetyswitch
❒ Disconnect one cable from the boiler safety switch (A) on the core module and
connect to one of the cables on the standard dustbin safety switch via a terminal
(B)
❒
Connect the second cable from the standard dustbin safety switch (C) to the
contact you just disconnected on the “Ash box contact switch (16)” output
Assembly
4
Connecting the system
