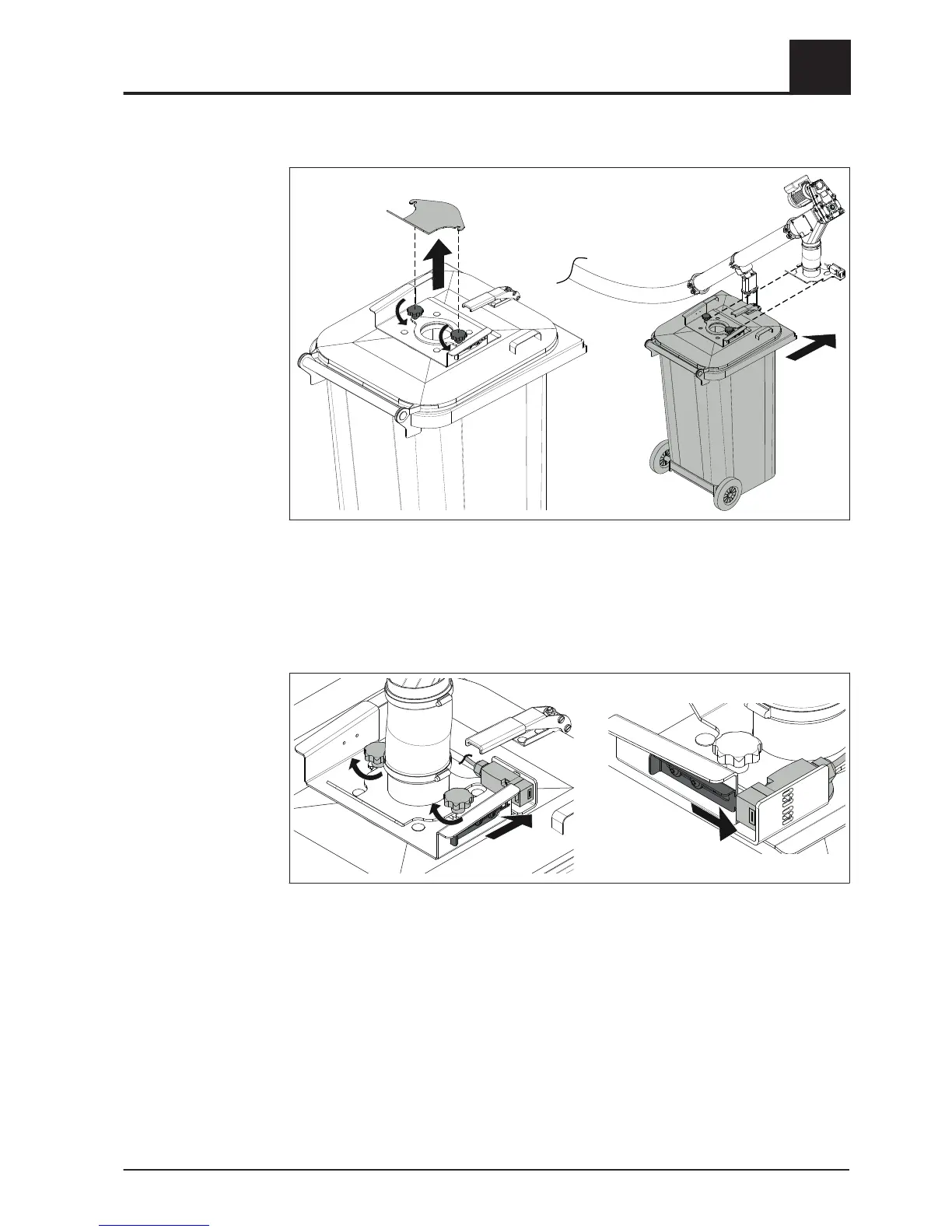

4.6.9 Assembling the standard dustbin
❒ Loosen the star shaped screws and remove the locking plate
➥ Store the locking plate in a suitable location - it will be needed when disposing
of the ash
Tip: hang the locking plate on the hook of the gravity shaft bracket inspection
cover
❒
Position the dustbin underneath the gravity shaft
❒ Replace the locking plate with the flange on the end of the hose and attach to the
dustbin by tightening the star shaped screws
❒
Push the key plate into the safety switch
Assembly
4
Assembling the ash discharge system
Installation and Operating Instructions Ash discharge into a standard dustbin | M1590214_en 27
