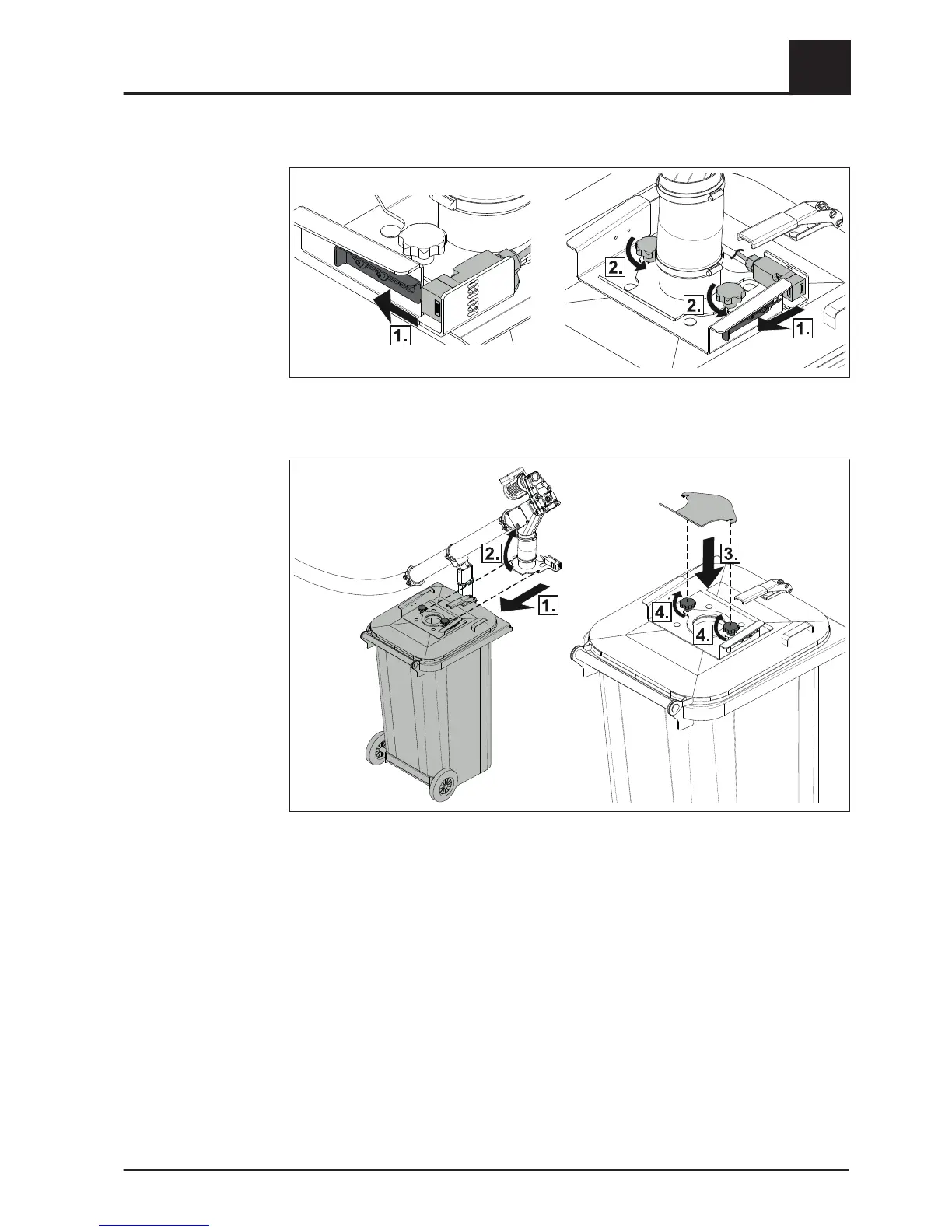

5.1.2 Emptying the dustbin
1. Remove the key plate from the safety switch
2.
Loosen the star shaped screws
1. Remove the dustbin from the connection flange
2.
Hang the flange on the hook of the gravity shaft bracket inspection cover
3. Replace the flange with the locking plate
4. Fix the locking plate in place using the star shaped screws
5. Take the dustbin to the emptying point and empty it
6. Reassemble the dustbin ⇨ See "Assembling the standard dustbin" [page 27]
– the boiler will start up automatically once the key plate has been reinserted
into the safety switch
Tip: for easier transport and emptying of the dustbin, attach forklift hooks to it
(available in stores).
Servicing
5
Inspection and cleaning
Installation and Operating Instructions Ash discharge into a standard dustbin | M1590214_en 33
