Fronius IG Plus 5.0-1 User Manual

134
Lift up plastic dividers in the area of
the string fuses
Preparation
(continued)
After replacing the fuse:
- Find out and correct the cause for the defective fuse
4
2
3
2
1
DC+
3

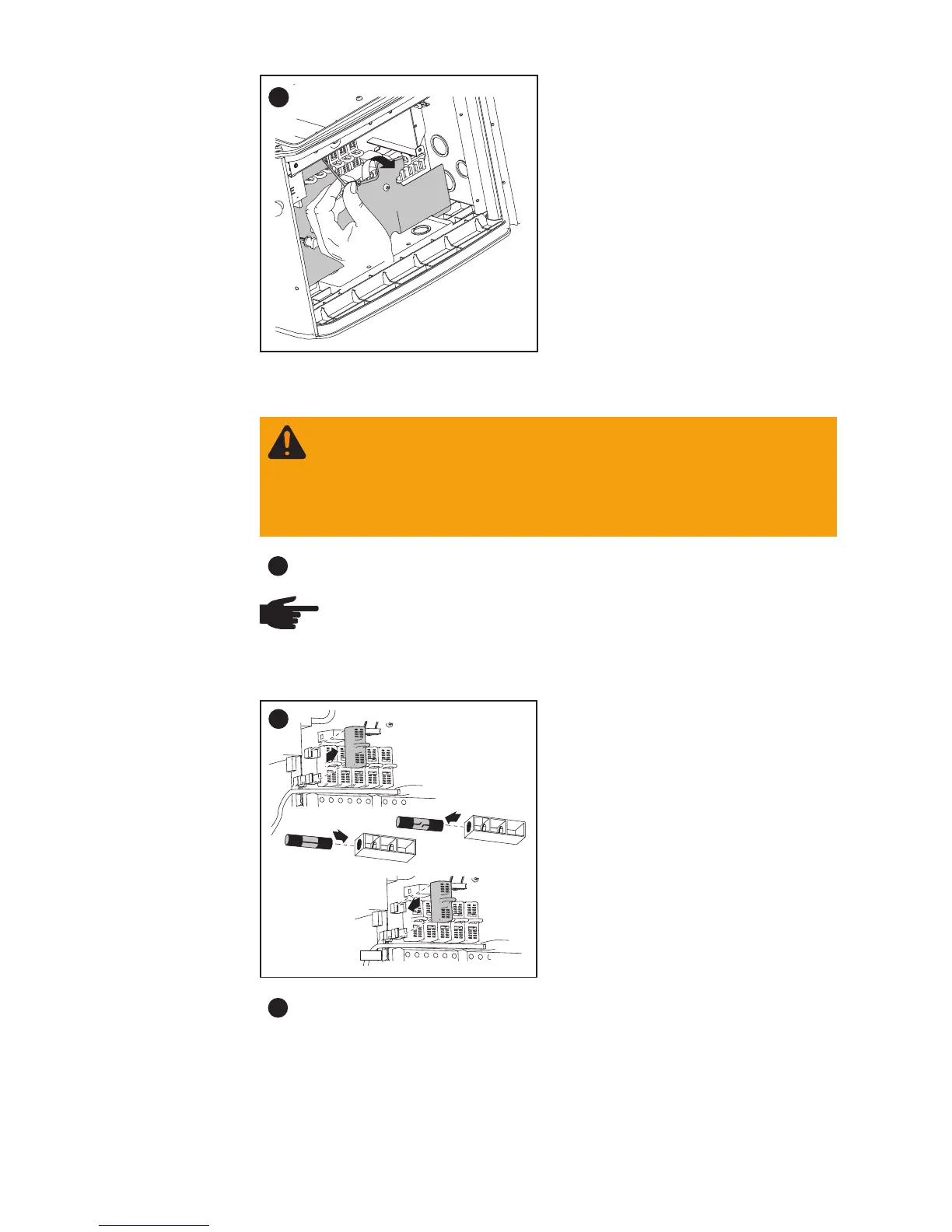

Replacing
String Fuses
NOTE Only use fuses for solar modules that meet the Criteria
for the Proper Selection of String Fuses
Test the fuse holder at the terminal for continuity
1
WARNING! An electrical shock can be fatal. Danger from DC
voltage from solar modules.
- Never remove a fuse, while it is under load.
- Fuse covers are for installation purposes only. They offer
no protection against contact.
3
1
Fuse data: Diameter 0.406 x 1.378 - 1.496 in.
(10.3 x 35 - 38 mm), 600 V DC

Fronius IG Plus 5.0-1 Specifications

General

Nominal AC Power	5000 W
AC Nominal Voltage	230 V
Frequency	50 / 60 Hz
Max Apparent AC Power	5000 VA
Max Output Current	21.7 A
THD	< 3 %
Inverter Design	Transformerless
AC Connection	Screw terminals
