Fronius IG Plus 5.0-1 User Manual

27
Fronius IG
Plus Installati-
on

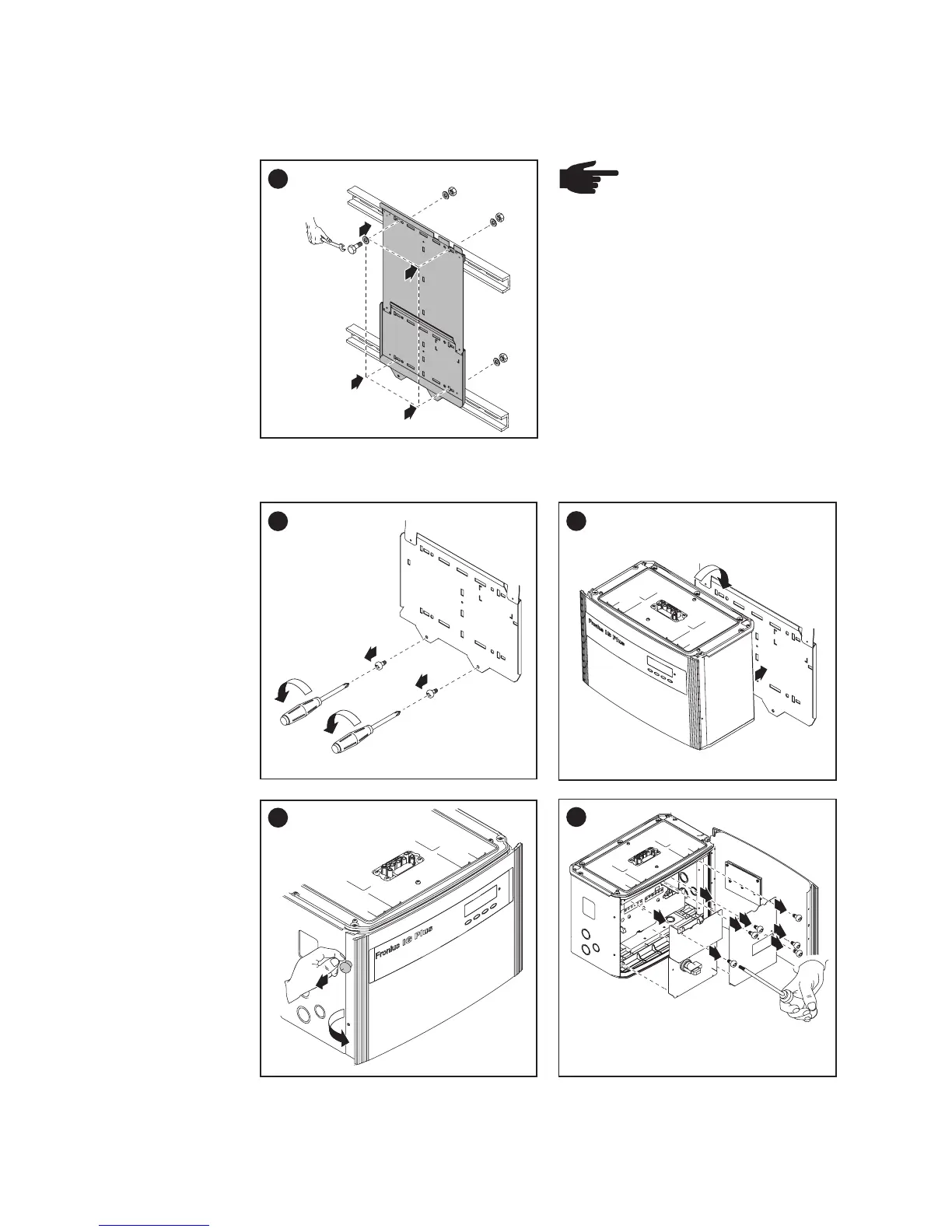

Attaching the
Wall Bracket
to a Metal
Carrier
1
4 x
3
4
22
1
(*)
Important The cut out segment marked (*) represents the placement of
the inverter display. Use this to ensure a comfortable display height for
easy reading.
NOTE When installing
using a metal carrier, the
Fronius IG Plus should not
be exposed to rainwater or
water spray at the back.
Ensure proper rainwater or
spray water protection.
1
2
1
1
2
2
3
2
1
4
1
2
3
4
6
5
7
8

Fronius IG Plus 5.0-1 Specifications

General

Nominal AC Power	5000 W
AC Nominal Voltage	230 V
Frequency	50 / 60 Hz
Max Apparent AC Power	5000 VA
Max Output Current	21.7 A
THD	< 3 %
Inverter Design	Transformerless
AC Connection	Screw terminals
