Fronius IG Plus 5.0-1 User Manual

73
Product description Fronius IG Plus
Keys and
Symbols
(1)
(2)
(3)(4)(5)(6)

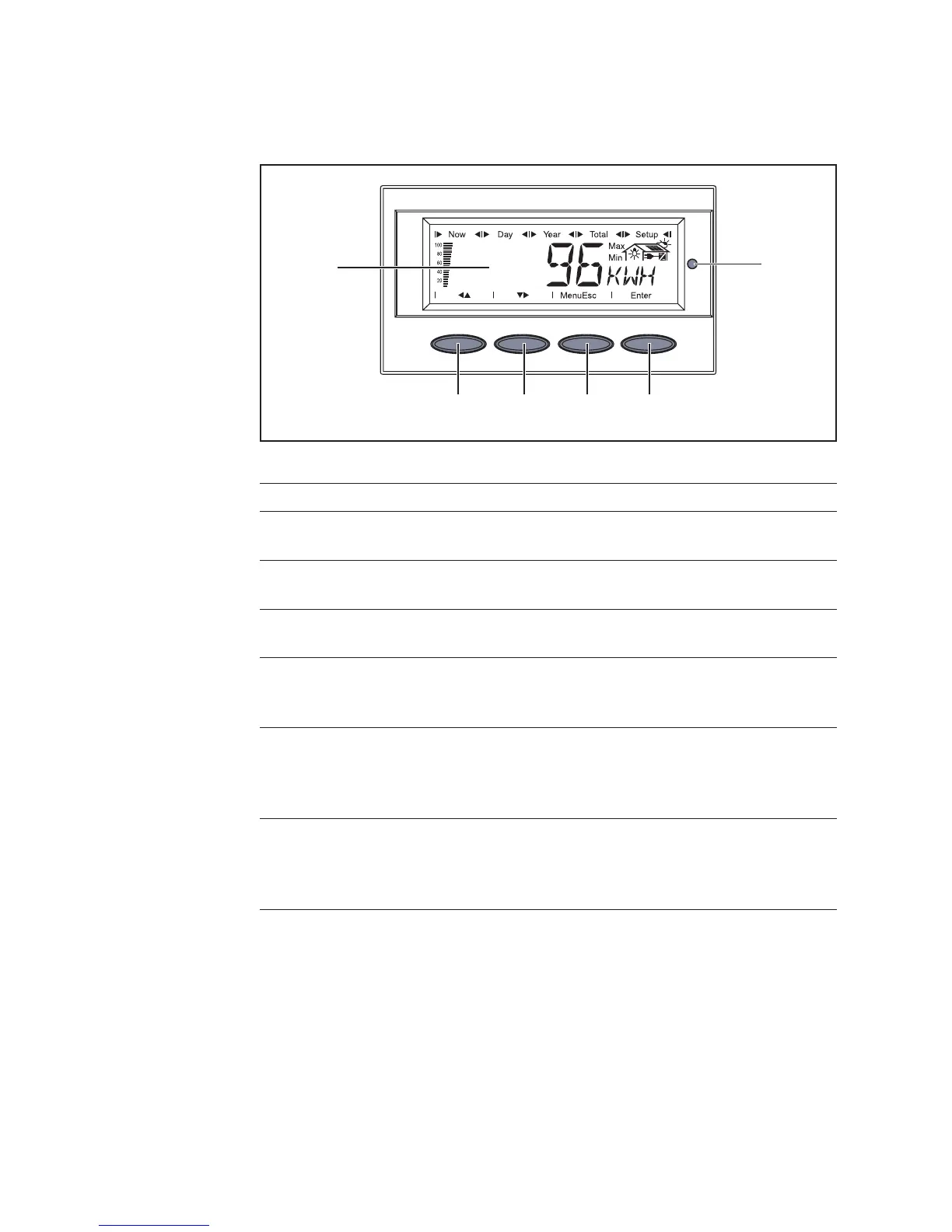

Keys and Symbols on the Fronius IG Plus
Display Power for the display comes from the solar modules via safety-low volta-
ge. The display is, therefore, available only during daylight hours.
Important The Fronius IG Plus display is not a calibrated measuring
instrument. A slight deviation of a few percent points is intrinsic to the
system. A calibrated meter is required to make calculations for the utility
company.
Item Function
(1) Display
for displaying values, settings and menus
(2) Operating Status LED
for displaying the operating status
(3) ‘Enter’ key
for confirming a choice
(4) ‘Menu / Esc’ key
switching to the menu level (‘Menu’) or exit from the setup menu
(‘Esc’)
(5) ‘Down/Right’ key
depending on the selection:
for navigating down
for navigating right
(6) ‘Left/Up’ key
depending on the selection:
for navigating left
for navigating up

Fronius IG Plus 5.0-1 Specifications

General

Nominal AC Power	5000 W
AC Nominal Voltage	230 V
Frequency	50 / 60 Hz
Max Apparent AC Power	5000 VA
Max Output Current	21.7 A
THD	< 3 %
Inverter Design	Transformerless
AC Connection	Screw terminals
