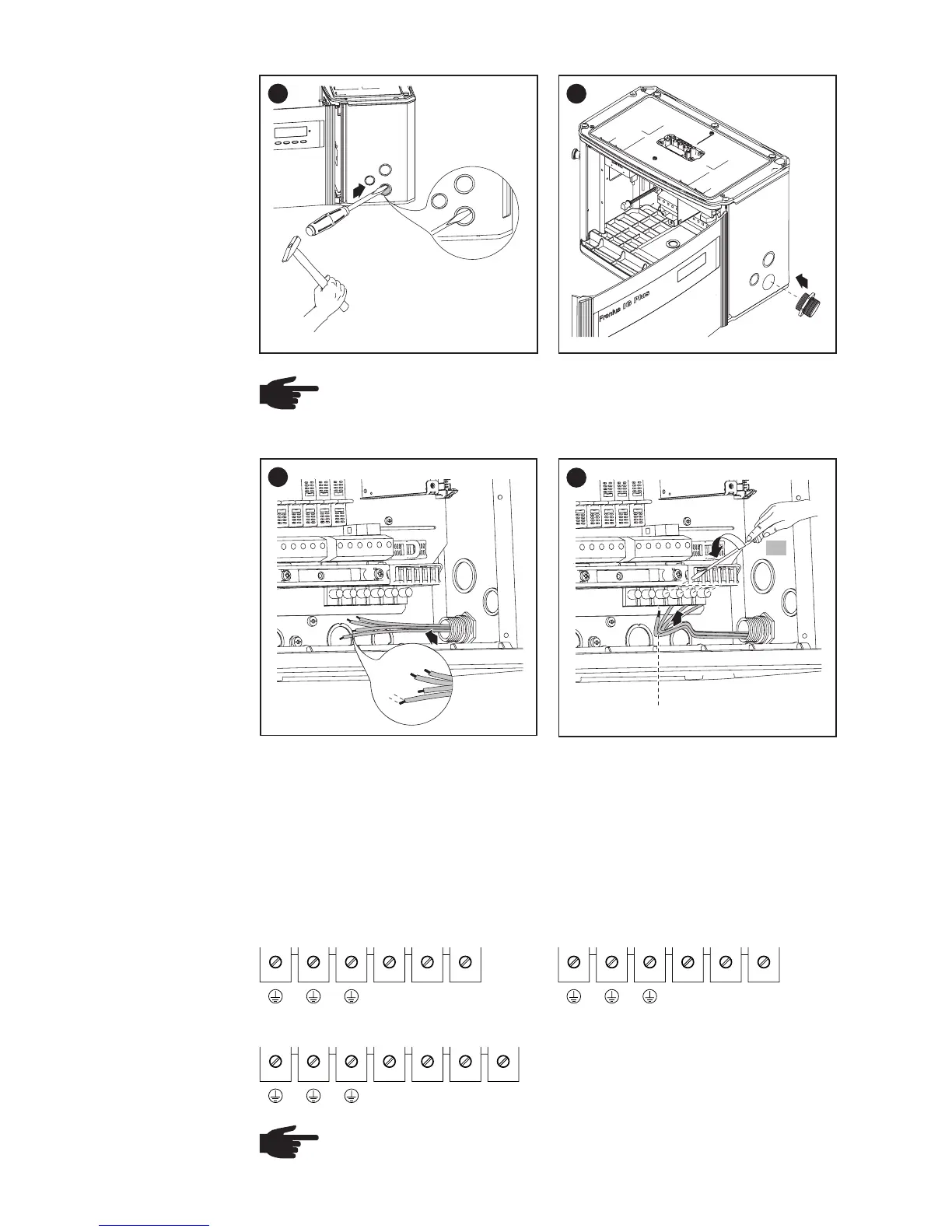

Connecting
the Fronius IG
Plus to the
Public Grid
(AC)
L1 L2 N
1 phase - 277 V
GET
GET
1
1
2
Conduit
NOTE Only use water tight conduit fittings and conduits.
Conduit fittings and conduits are not part of the scope of delivery
for the inverter
1/2 in.
3
1
*
* Connect grid grounding / grounding conductor to the right terminal
** Tightening torque:
- stranded wires .............. 1.25 ft. lb.
- solid wires..................... 0.81 ft. lb.
Connect the AC wires to the AC-side terminals depending on the power
grid and phase quantity of the inverter:
L1 N N.C.
NOTE
Form a min. 4 in. wire loop using all wires.
**
1 phase - 208 V / 240 V
3 phases - 208 V / 240 V / 277 V
L1 L2 NL3
GET = Grounding Electrode Terminal
N.C. = Not connected

Fronius IG Plus 5.0-1 Specifications

General

Nominal AC Power	5000 W
AC Nominal Voltage	230 V
Frequency	50 / 60 Hz
Max Apparent AC Power	5000 VA
Max Output Current	21.7 A
THD	< 3 %
Inverter Design	Transformerless
AC Connection	Screw terminals
