Fronius IG Plus 5.0-1 User Manual

108

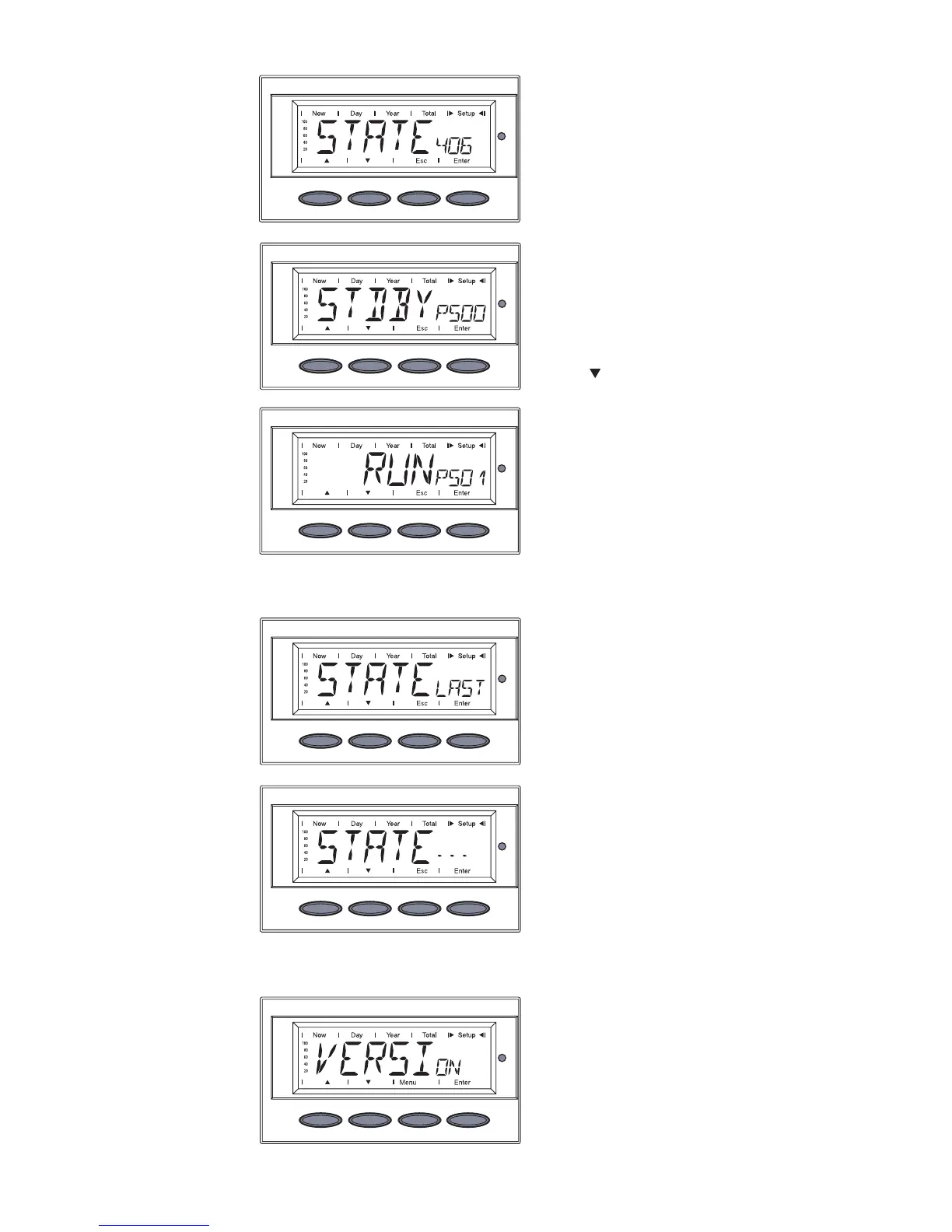

the last saved status message.
4. Press the ‘Esc’ key
The status of the first power
stage set PS00 is shown again
5. Use the ‘Down’ key to select the
second or third power stage set
PS01 or PS02, if available.
The status of the selected
power stage set is shown, e.g.:
RUNPSO1
RUN = active grid feed
6. Press the ‘Enter’ key to display
the last status message saved
Displaying
menu item
‘STATE
PS
(continued)
the last saved status message.
7. Press the ‘Esc’ key 2x to exit
menu item ‘STATEPS’
The display switches between
...
‘STATELAST’
and
1. Select menu item ‘VERSION’
2. Press the ‘Enter’ key
Displaying
menu item
‘VERSION’

Fronius IG Plus 5.0-1 Specifications

General

Nominal AC Power	5000 W
AC Nominal Voltage	230 V
Frequency	50 / 60 Hz
Max Apparent AC Power	5000 VA
Max Output Current	21.7 A
THD	< 3 %
Inverter Design	Transformerless
AC Connection	Screw terminals
