Fronius IG Plus 5.0-1 User Manual

60
Start up Operation
Your Fronius IG Plus unit has been pre-configured in the factory and is
ready for operation. You only have to set the available power grid for
startup.
To change your inverter settings, please see section ‘The Setup Menu’ in
the chapter ‘Operation’.
Factory pre-
set configura-
tion
Requirements
for Starting up
Operation
- Fronius IG Plus connected to the public grid (AC)
- Fronius IG Plus connected to the solar modules (DC)
- 3 plastic dividers set in
- 2 metal covers mounted
- power stage set mounted
NOTE
Do not operate the Fronius IG Plus without fuse covers.
Start up Ope-
ration
1
off
on
1
2
ON

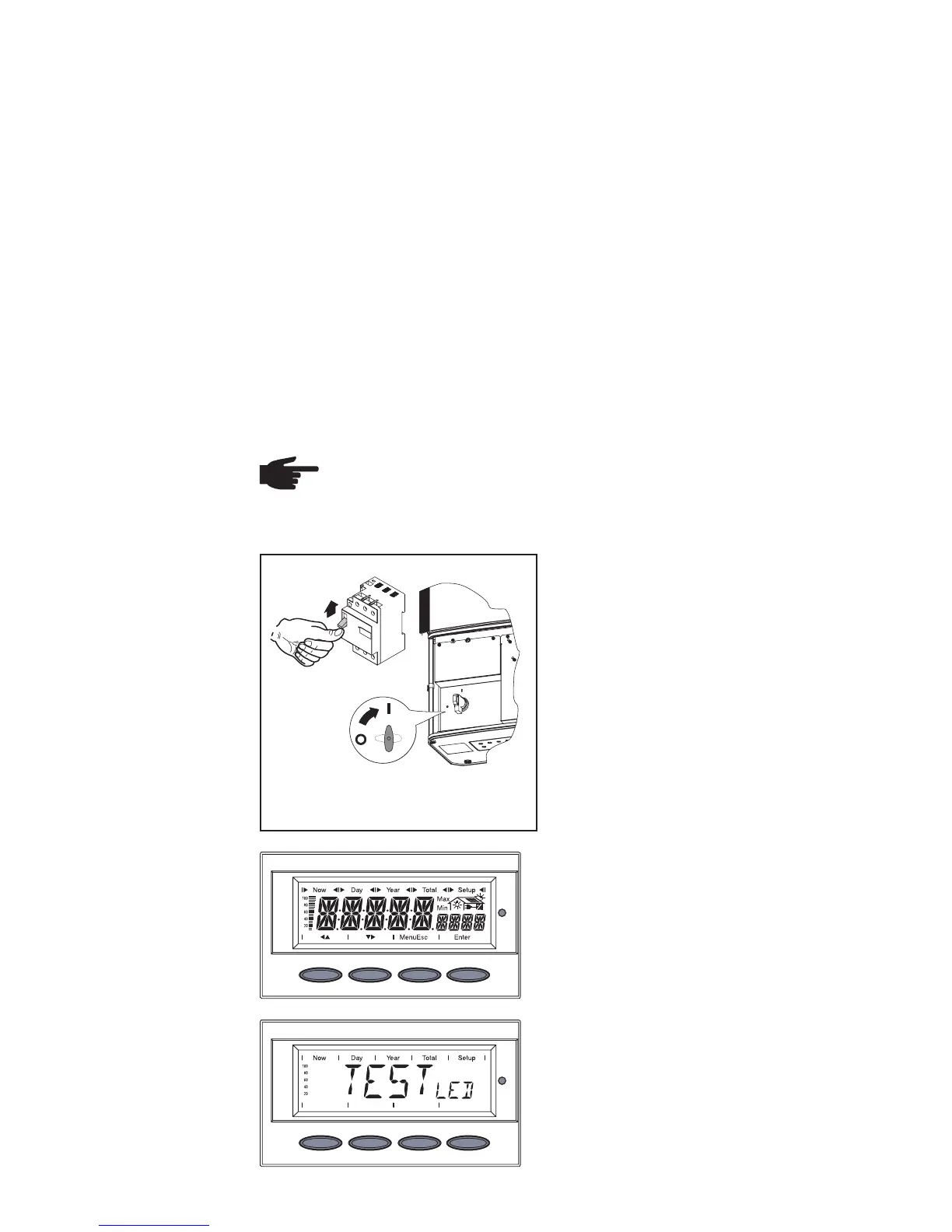

1. Turn on AC disconnect
2. Flip DC main switch to position
- 1 -
As soon as the photovoltaic
modules produce sufficient
power, the Operating Status
LED lights up orange.
The orange LED indicates that
the feed-in mode of the Fronius
IG Plus will begin shortly.
The screen displays the startup
phase
- Segment test
All display elements light up
for about one second
- The Fronius IG Plus unit
goes through a master
check list for several se-
conds
The display shows ‘TEST’
and indicates the respective
component which is being
tested (for example ‘LED’)
AC

Fronius IG Plus 5.0-1 Specifications

General

Nominal AC Power	5000 W
AC Nominal Voltage	230 V
Frequency	50 / 60 Hz
Max Apparent AC Power	5000 VA
Max Output Current	21.7 A
THD	< 3 %
Inverter Design	Transformerless
AC Connection	Screw terminals
