(1) (2) (3) (4)
(5)(6)(7)
(2)(1) (2)(1)
Selecting a
display mode

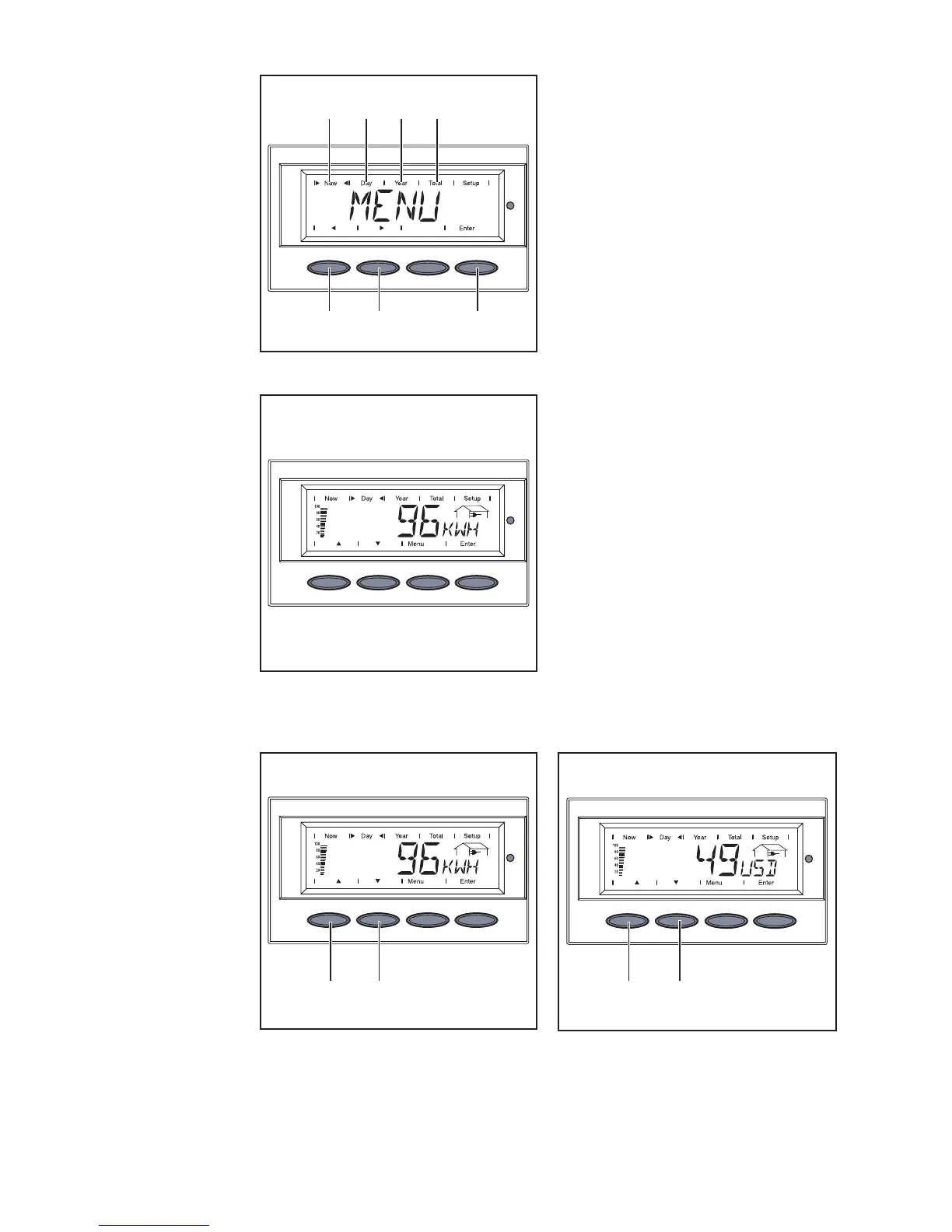

1. Accessing Menu Levels
2. Use the ‘left (7) or ‘right’ (6)
keys to select your preferred
display mode (1) - (4)
3. Press ‘Enter’ (5)
Selecting a Display Mode
The selected display mode is
shown
Important The ‘Year’ menu option
is supported only when the optional
Datalogger is connected. This
system upgrade includes a real-
time clock.
Example: ‘Day’ display mode
Scrolling
Between Dis-
play functions
1. Selecting a desired display mode
2. Scroll through the available display values using the ‘Up’ (1) and
‘Down’ (2) keys
Example: ‘Fed-in Energy’ display value
Example: ‘Earnings’ display value

Fronius IG Plus 5.0-1 Specifications

General

Nominal AC Power	5000 W
AC Nominal Voltage	230 V
Frequency	50 / 60 Hz
Max Apparent AC Power	5000 VA
Max Output Current	21.7 A
THD	< 3 %
Inverter Design	Transformerless
AC Connection	Screw terminals
