Fronius IG Plus 5.0-1 User Manual

59

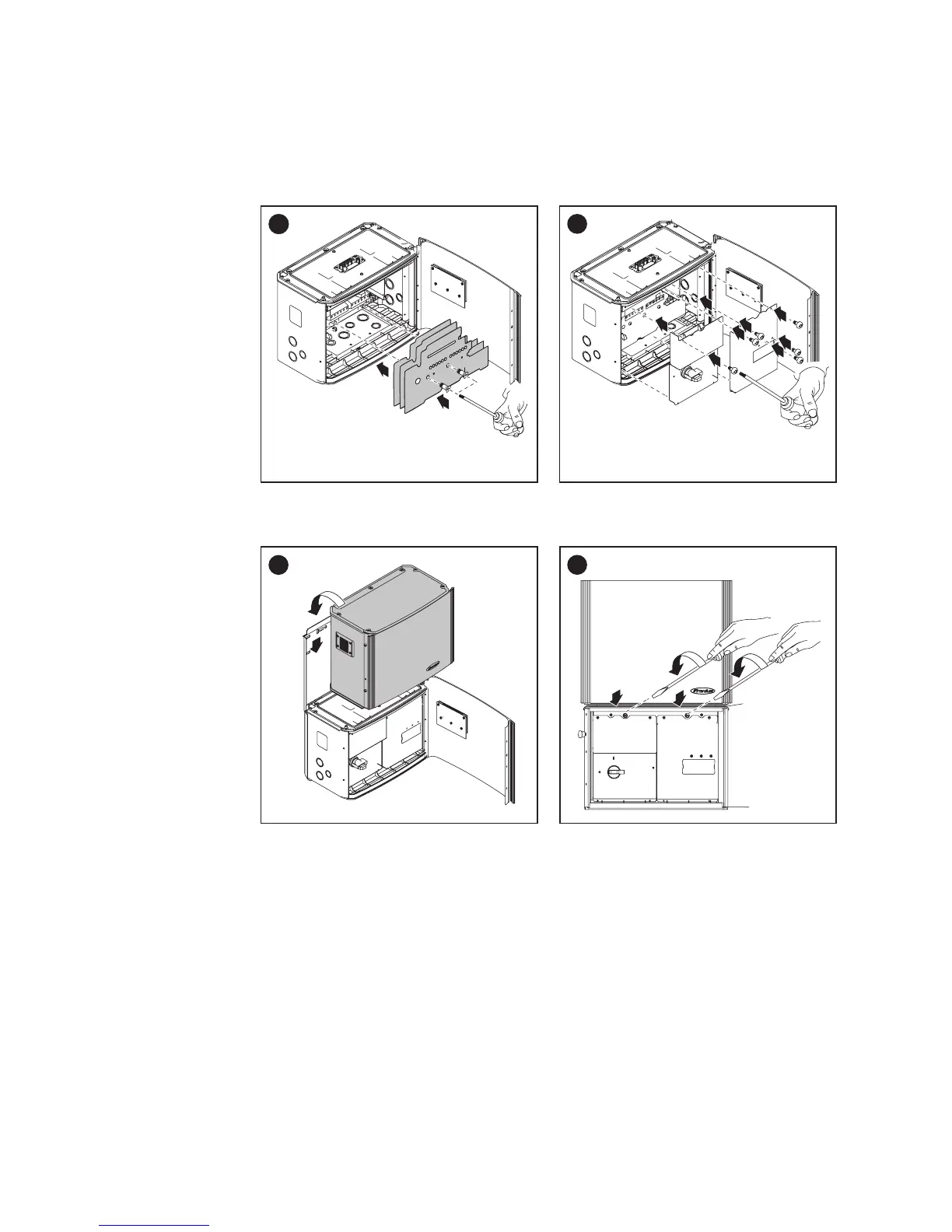

Attaching Power Stage Sets and Closing the Fro-
nius IG Plus
Preparation
Attaching
Power Stage
Sets And
Closing the
Fronius IG
Plus
1
2
1
2
1
2
3
5
4
6
8
7
1
2
1
2
1
1
2
3
Opening the
Fronius IG
Plus for Ser-
vice/Mainten-
ance
Procedure for opening the Fronius IG Plus for service or maintenance:
1. Disconnect the AC and DC supply from the inverter
2. Open the connection area
3. Turn off DC main switch
4. Allow the capacitors to discharge (5 minutes)
5. Remove metal covers
6. Remove the plastic dividers
7. Remove string fuses
8. Disconnect DC wire
9. Disconnect AC wire
The Fronius IG Plus is now operational.

Fronius IG Plus 5.0-1 Specifications

General

Nominal AC Power	5000 W
AC Nominal Voltage	230 V
Frequency	50 / 60 Hz
Max Apparent AC Power	5000 VA
Max Output Current	21.7 A
THD	< 3 %
Inverter Design	Transformerless
AC Connection	Screw terminals
