Fronius IG Plus 5.0-1 User Manual

102
Setting menu
item ‘IG-NR’

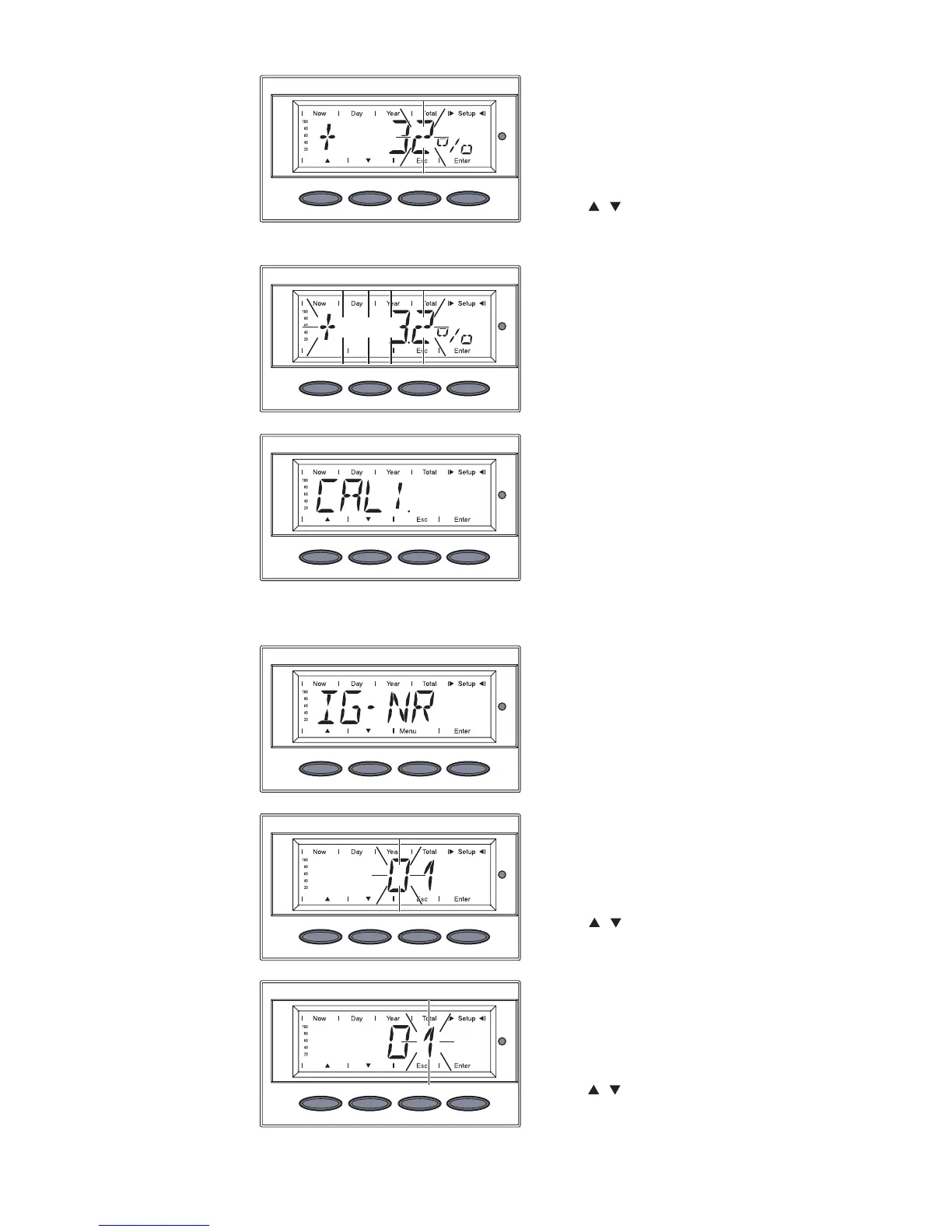

1. Select menu item ‘IG-NR’
2. Press the ‘Enter’ key
The inverter number is shown,
the first digit flashes.
3. Use the ‘Up’ and ‘Down’ keys to
select a value for the first digit
4. Press the ‘Enter’ key
The second digit flashes
5. Use the ‘Up’ and ‘Down’ keys to
select a value for the second
digit
6. Press the ‘Enter’ key
The digit after the decimal point
flashes
22. Use the ‘Up’ and ‘Down’ keys to
select a value for the digit after
the decimal point
23. Press the ‘Enter’ key
The set correction value flashes
24. Press the ‘Enter’ key
The set correction value is now
accepted
‘CALI.’ is shown
25. Press the ‘Esc’ key 2 x to exit
menu item ‘YIELD’ or to
maintain previous setting
Setting menu
item ‘YIELD’
(continued)

Fronius IG Plus 5.0-1 Specifications

General

Nominal AC Power	5000 W
AC Nominal Voltage	230 V
Frequency	50 / 60 Hz
Max Apparent AC Power	5000 VA
Max Output Current	21.7 A
THD	< 3 %
Inverter Design	Transformerless
AC Connection	Screw terminals
