Fronius IG Plus 5.0-1 User Manual

85
Options If the DatCom component for the required options are not available, the
message "N.A." (not available) is shown.

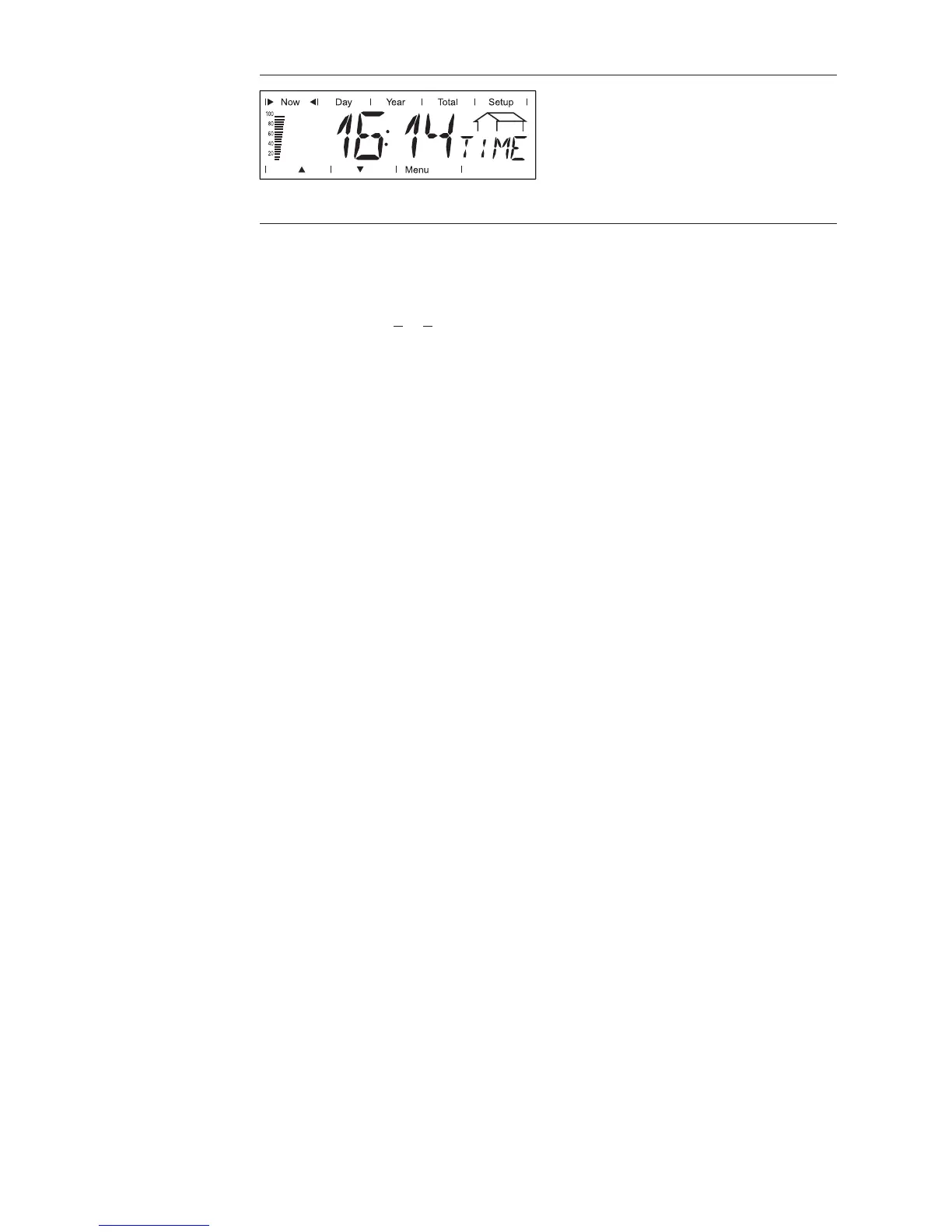

Time of the day (optional data-
logger)
When the time on the Fronius IG
Plus or a system upgrade is chan-
ged, this changes the time on all
connected devices via Solar Net.
Within display
mode ‘Now’
displayed data
(continued)

Fronius IG Plus 5.0-1 Specifications

General

Nominal AC Power	5000 W
AC Nominal Voltage	230 V
Frequency	50 / 60 Hz
Max Apparent AC Power	5000 VA
Max Output Current	21.7 A
THD	< 3 %
Inverter Design	Transformerless
AC Connection	Screw terminals
