Fronius IG Plus 5.0-1 User Manual

18
Fronius IG Plus

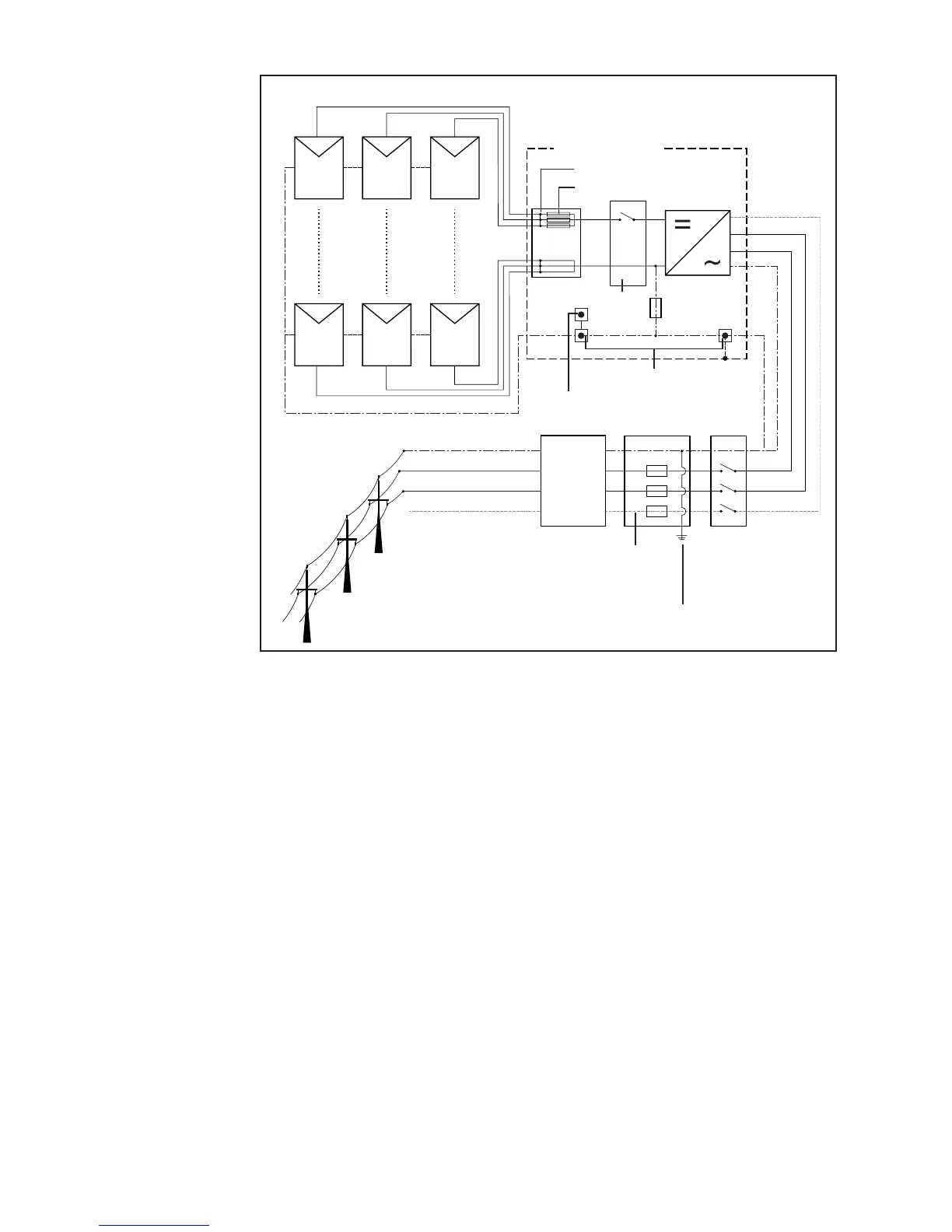

Connection
Diagramm
Energy-
meter
AC distribution
panel
DC disconnect
DC terminal block
String fuses
DC +
DC -
PV frame ground
L1
L2
N
Grounding terminal
Grounding electrode terminal *
L1
N**
L2
L3
L3***
Main grounding system
* may be required by local authorities
** may be required depending on grid configuration
*** depending on inverter type
Lockable AC
disconnect
switch
Overview ‘Fronius IG Plus Installation and Connection’ contains the following sec-
tions:
- Fronius IG Plus Connection Options
- Knockouts on the Fronius IG Plus
- Choosing the Location
- Fronius IG Plus Installation
- Connecting the Fronius IG Plus to the Public Grid (AC)
- Connecting Solar Module Strings to the Fronius IG Plus (DC)
- Attaching Power Stage Sets and Closing the Fronius IG Plus

Fronius IG Plus 5.0-1 Specifications

General

Nominal AC Power	5000 W
AC Nominal Voltage	230 V
Frequency	50 / 60 Hz
Max Apparent AC Power	5000 VA
Max Output Current	21.7 A
THD	< 3 %
Inverter Design	Transformerless
AC Connection	Screw terminals
