Fronius IG Plus 5.0-1 User Manual

52
Solar Module
Ground at
Positive Pole:
Inserting
String fuses
into the Froni-
us IG Plus
(continued)

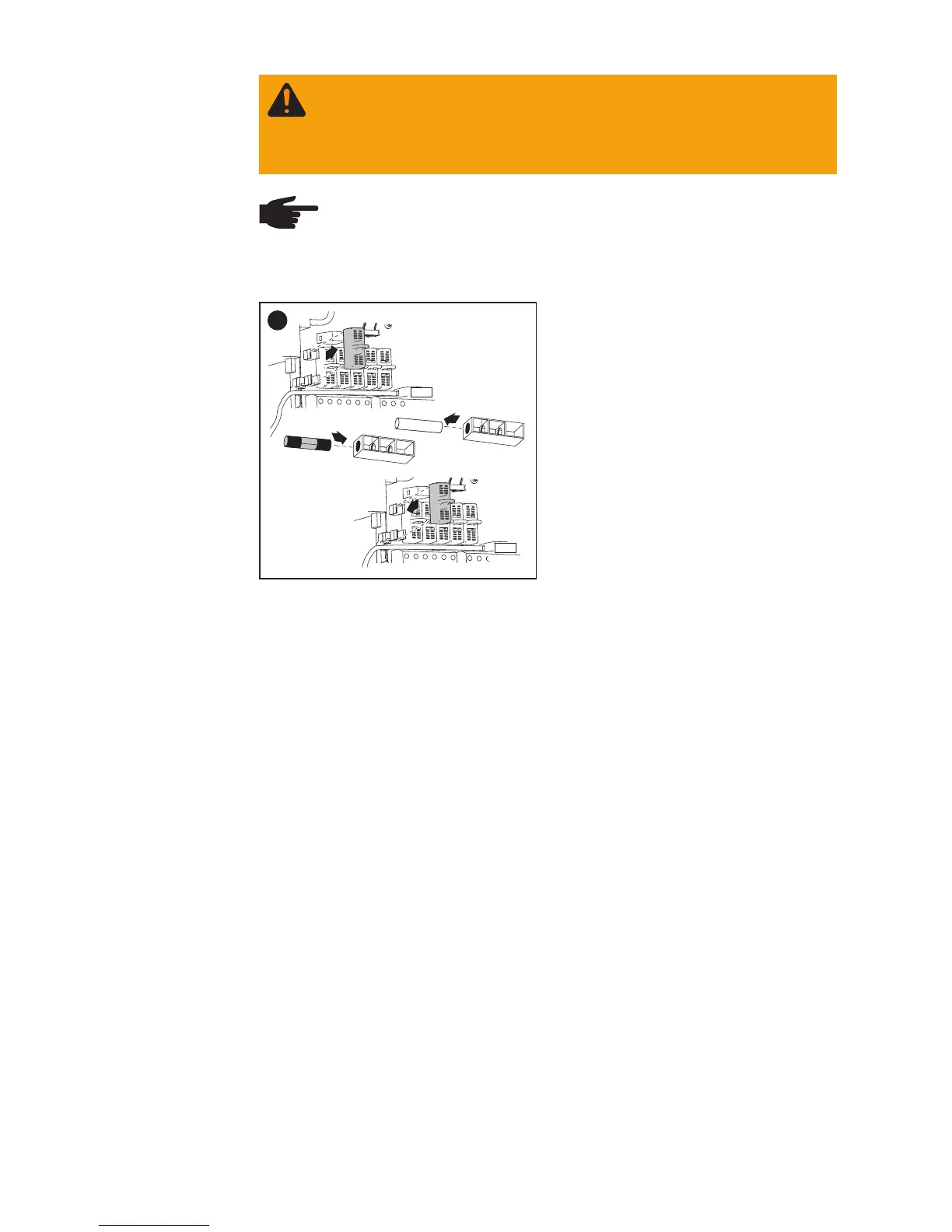

NOTE
- Insert fuses only with a fuse cover in the respective fuse
holder
- Do not operate the Fronius IG Plus without fuse covers
1
4
2
3
2
DC-
DC-
WARNING! An electrical shock can be fatal. Danger from DC
voltage from solar modules.
Fuse covers are for installation purposes only. They offer no
protection against contact.

Fronius IG Plus 5.0-1 Specifications

General

Nominal AC Power	5000 W
AC Nominal Voltage	230 V
Frequency	50 / 60 Hz
Max Apparent AC Power	5000 VA
Max Output Current	21.7 A
THD	< 3 %
Inverter Design	Transformerless
AC Connection	Screw terminals
