Fronius IG Plus 5.0-1 User Manual

62

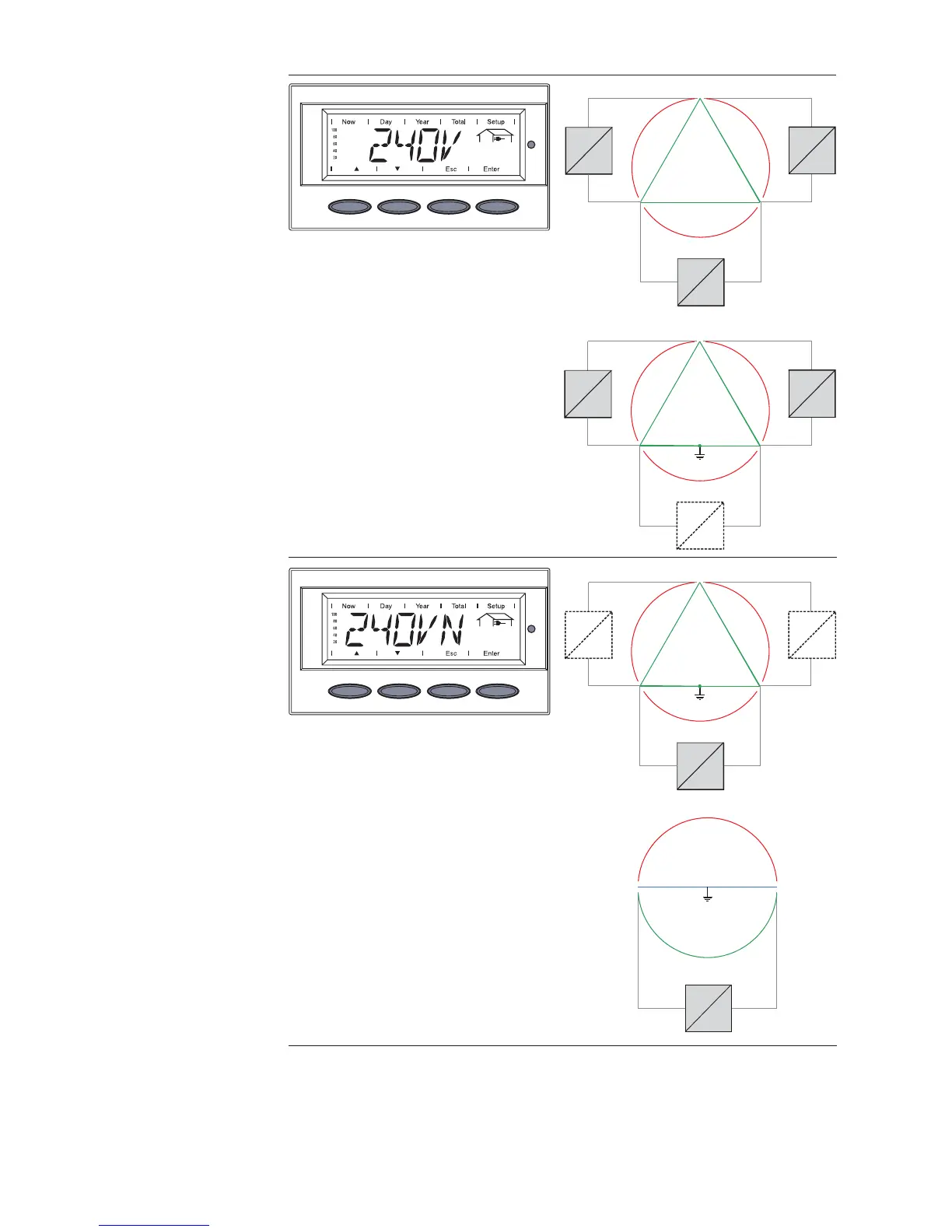

Selecting the
public grid
(continued)
Grid voltage 240 V Delta
No neutral conductor in the system
Neutral conductor monitoring is deactivated
240 V
240 V
240 V
120 °
120 °
12 0 °
L1
L2L3
=
~
=
~
=
~
Grid voltage 240 V: 120 V Stinger
Neutral conductor available in the system
Neutral conductor monitoring is activated
240 V
240 V
120 °
120 °
12 0 °
120 V120 V
L3
L1
N
L2
=
~
=
~
=
~
180 °
120 V 120 V
240 V
L1 L2
N
=
~
Grid voltage 240 V: 120 V Split Phase
Neutral conductor available in the system
Neutral conductor monitoring is activated
240 V
240 V
120 °
120 °
12 0 °
120 V120 V
L3
L1
N
L2
=
~
=
~
=
~

Fronius IG Plus 5.0-1 Specifications

General

Nominal AC Power	5000 W
AC Nominal Voltage	230 V
Frequency	50 / 60 Hz
Max Apparent AC Power	5000 VA
Max Output Current	21.7 A
THD	< 3 %
Inverter Design	Transformerless
AC Connection	Screw terminals
