- Operation of feeding energy
into the grid
After conclusion of the tests,
the Fronius IG Plus unit starts
feeding energy into the grid.
The display shows the present
power feeding into the grid.
The Operating Status LED
lights up green, and the Fronius
IG Plus unit starts operating.
Important For more information about the startup phase, please see
chapter 'Operation', section 'Product Description Fronius IG Plus' (Startup
Phase, Test Procedure).
Startup Phase
at Startup
Operation
(continued)

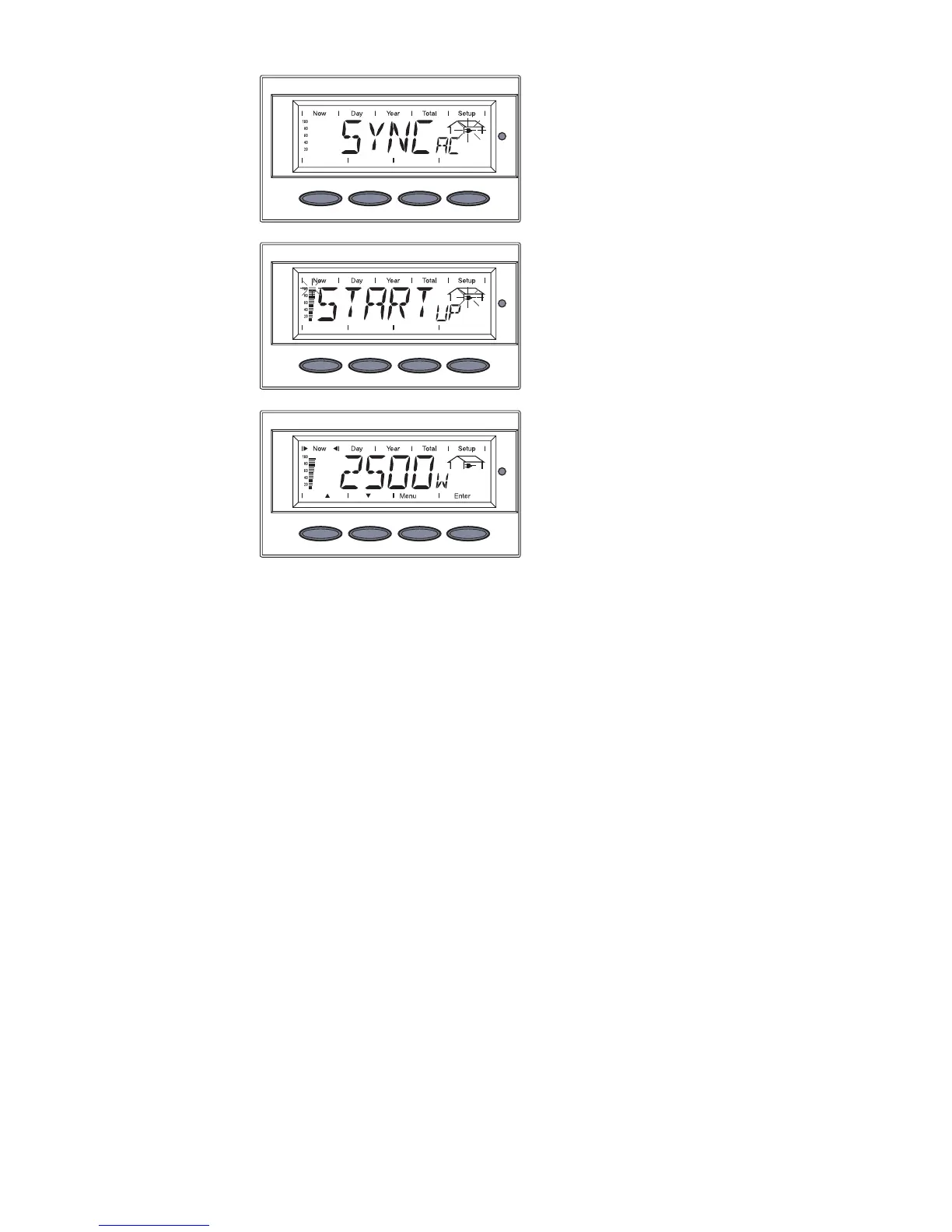

Next, the display shows
- Startup test
Before the Fronius IG Plus unit
starts feeding energy into the
grid, the conditions of the grid
are tested in detail in accor-
dance with regulations.
The display shows ‘STARTUP’
‘SYNCAC’, the grid icon blinks

Fronius IG Plus 5.0-1 Specifications

General

Nominal AC Power	5000 W
AC Nominal Voltage	230 V
Frequency	50 / 60 Hz
Max Apparent AC Power	5000 VA
Max Output Current	21.7 A
THD	< 3 %
Inverter Design	Transformerless
AC Connection	Screw terminals
