42
Screwing the Robacta Reamer V Easy, Robacta
Reamer V to the underlying surface
Screwing the
cleaning device
and installation
stand to the un-
derlying surface
NOTE!
Different fixings may be required to set up the installation stand depending on the
type of underlying surface (foundation).
Fixings are therefore not included in the scope of supply of the installation stand. The in-
staller is responsible for selecting the right type of fixing.
Place the optional installation stand on a level, firm and vibration-free surface (foun-
dation)
- Position the installation stand in such a way that the distance the robot has to trav-
el to the cleaning device on the installation stand is as short as possible

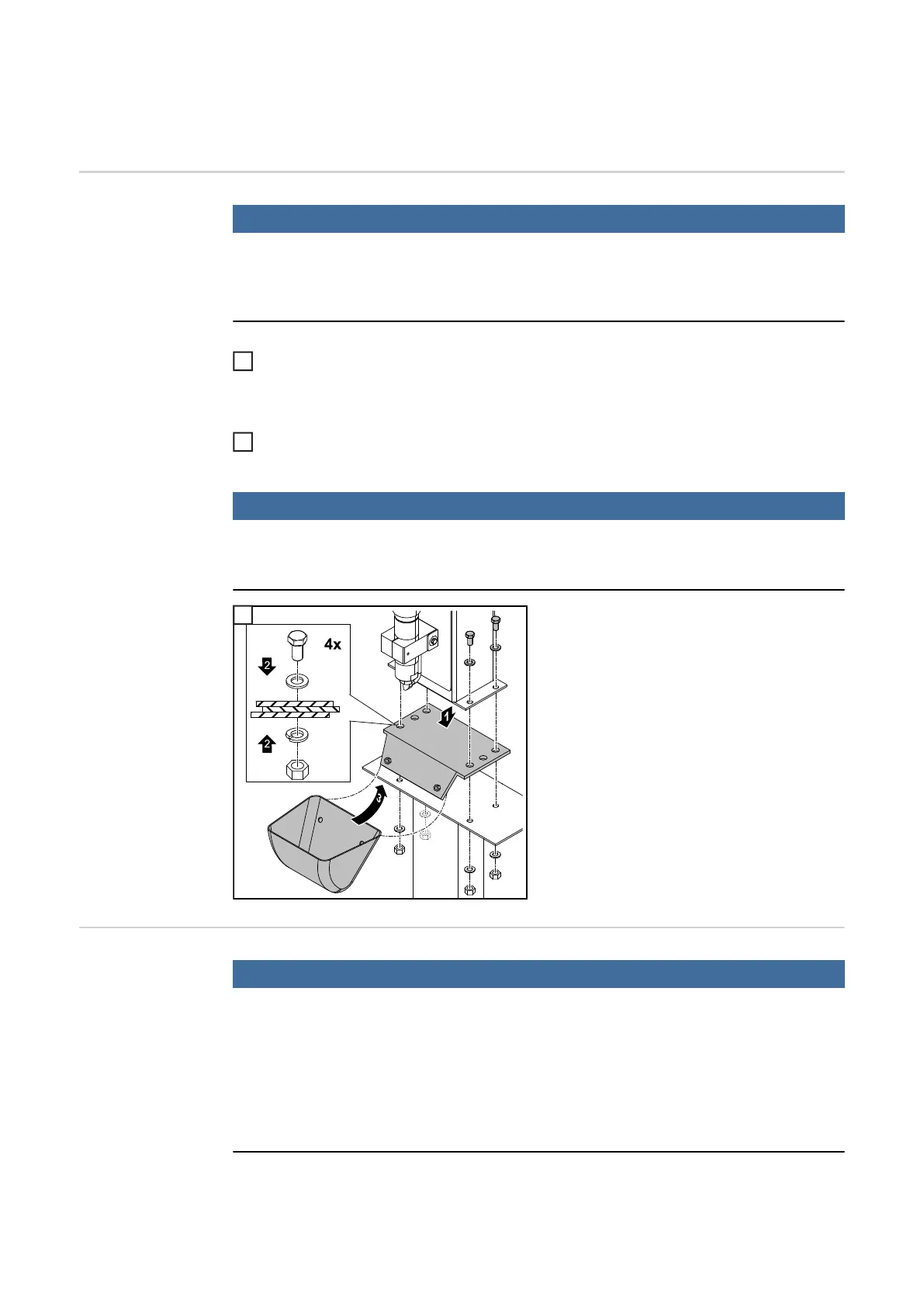

Screw the installation stand to the underlying surface (foundation) using the appropri-
ate fixings
NOTE!
Screw on the cleaning device and the spatter tray retainer using the fixings supplied
with the cleaning device.
1
Screwing the
cleaning device
to the underlying
surface
NOTE!
Different fixings may be required to fasten the device, depending on the type of un-
derlying surface (foundation).
► If the underlying surface (foundation) thickness is less than 5 mm (0.197 in.), use the
fixings supplied with the cleaning device for the work shown below.
► If the underlying surface (foundation) thickness is greater than 5 mm (0.197 in.), do not
use the fixings supplied for the work shown below. In this situation the installer is re-
sponsible for selecting the right type of fixing.
1
2
3
