Checking the Robacta Reamer V Easy and Robacta
Reamer V Easy Han6P J functions
General
NOTE!
Before starting the automatic cleaning process, the functions of the cleaning device
must be checked manually.
NOTE!
To ensure that the functions are checked properly, the welding torch must be in the
cleaning position.
Manually check-
ing the Robacta
Reamer V Easy
and Robacta
Reamer V Easy
Han6P J func-
tions
NOTE!
Functions are deactivated if the slot on the "Cleaning" screw is horizontal.
Disconnect the cleaning device from the robot control
Establish a compressed air supply to the cleaning device
The following must be checked when the functions are being performed:
- how far the cleaning cutter is inserted into the gas nozzle
- function of the gas nozzle clamping device
- function of the cleaning motor
- parting agent emerging from the parting-agent injection nozzle
1

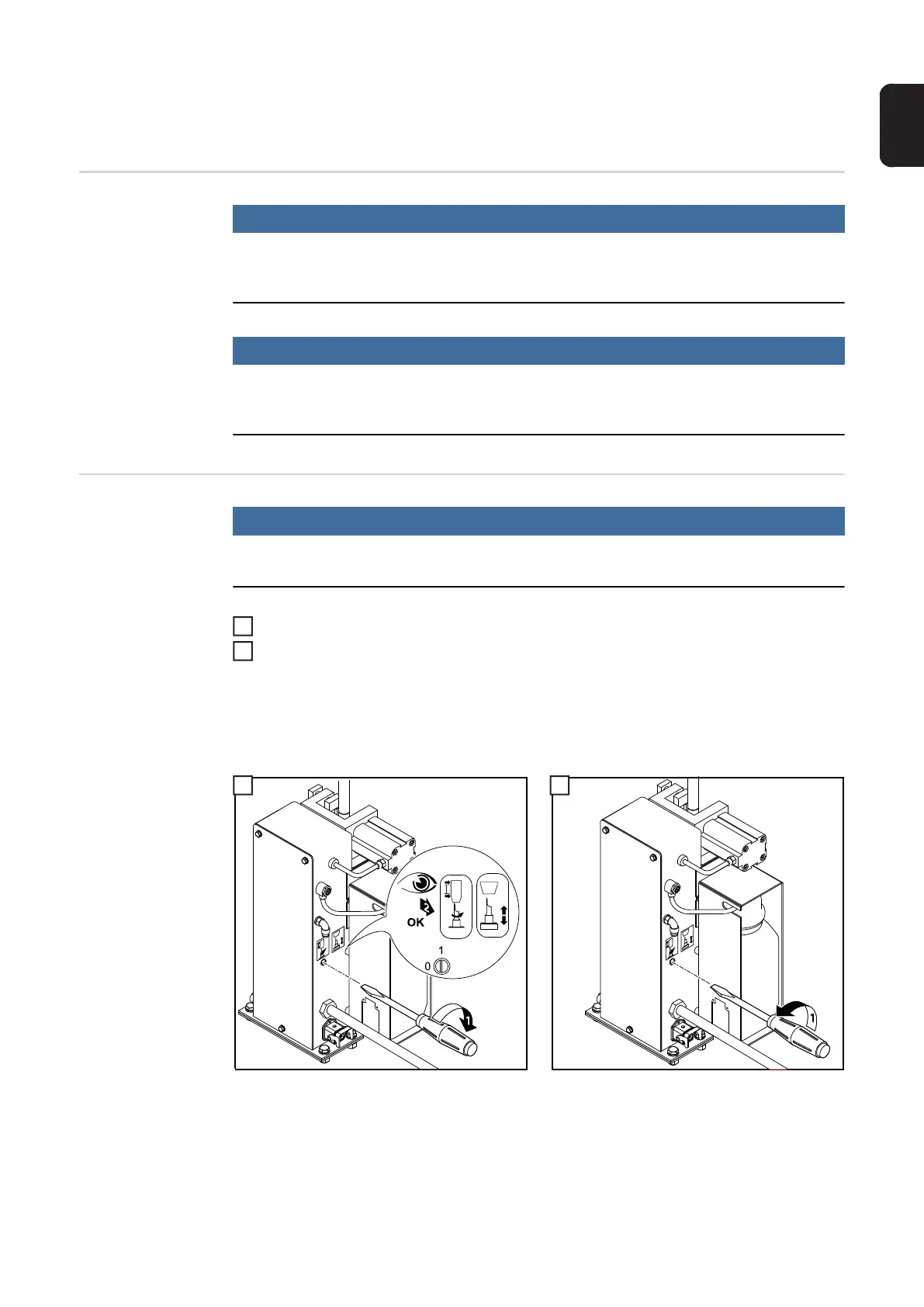

Lifting device up/down, Clamp gas nozzle/Cleaning
motor on, Spray in parting agent
2
Deactivating the functions
1
2
00
11
22
11
3
11
4
