61
EN

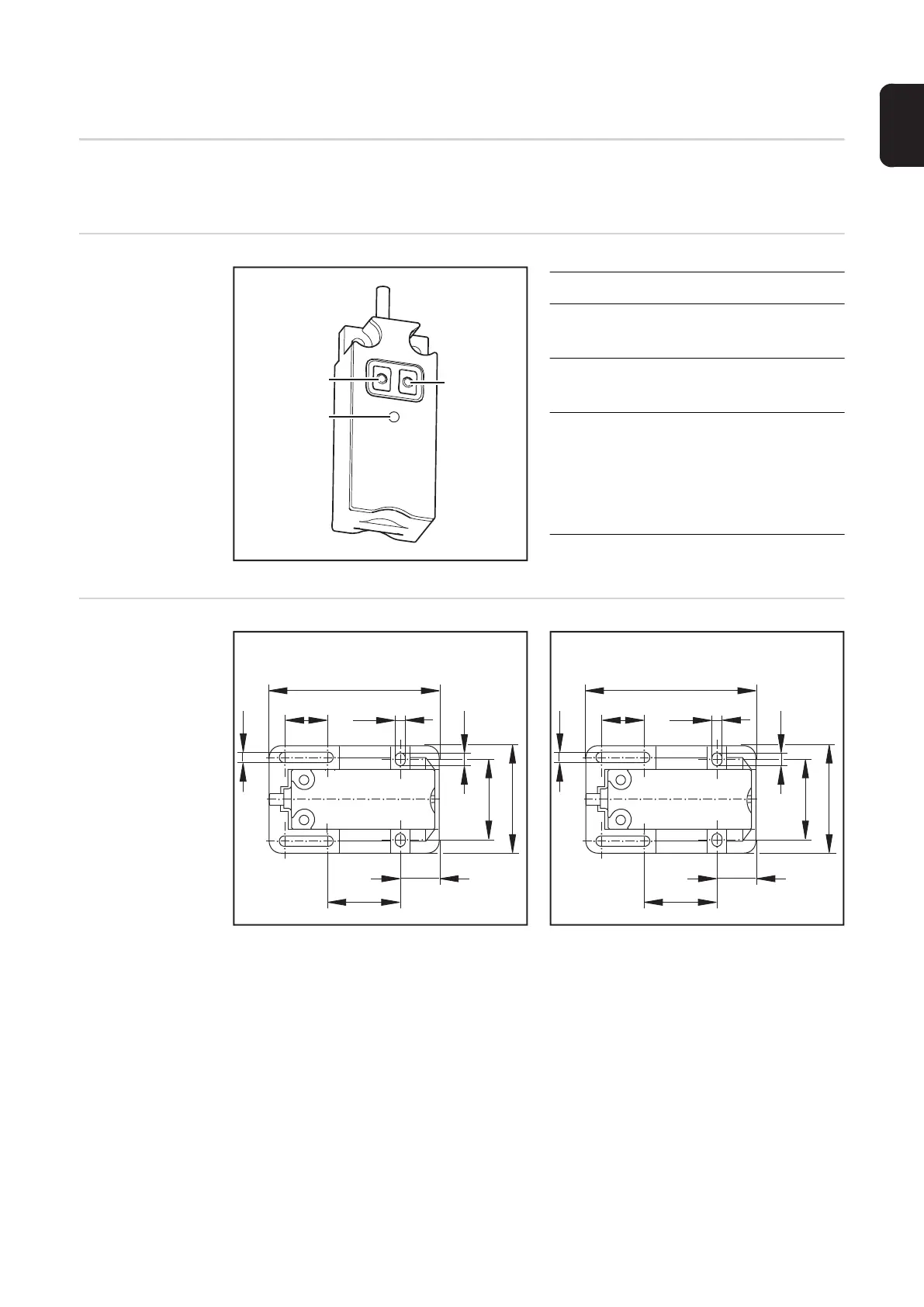

Using the fill-level control sensor
General The fill-level control sensor emits a signal once the fill level in the parting agent container
falls below a specified level.
Controls and indi-
cators on the sen-
sor
No. Function
(1) 'OUT OFF' button
for programming the sensor
(2) 'OUT ON' button
for programming the sensor
(3) LED
indicates the sensor operating sta-
tus
- LED on/flashing: sensor is active
- LED on/not flashing: sensor is not
active
Installation adapt-
er borehole di-
mensions
(1)
(2)
(3)
57
15 3,2
4,2
28
36
13
24
3,2
mm
2.24
0.59 0.13
0.17
1.10
1.42
0.51
0.94
0.13
inch
