Robacta Reamer V control elements, connections
and mechanical components
Robacta Reamer
V control ele-
ments, connec-
tions and
mechanical com-
ponents

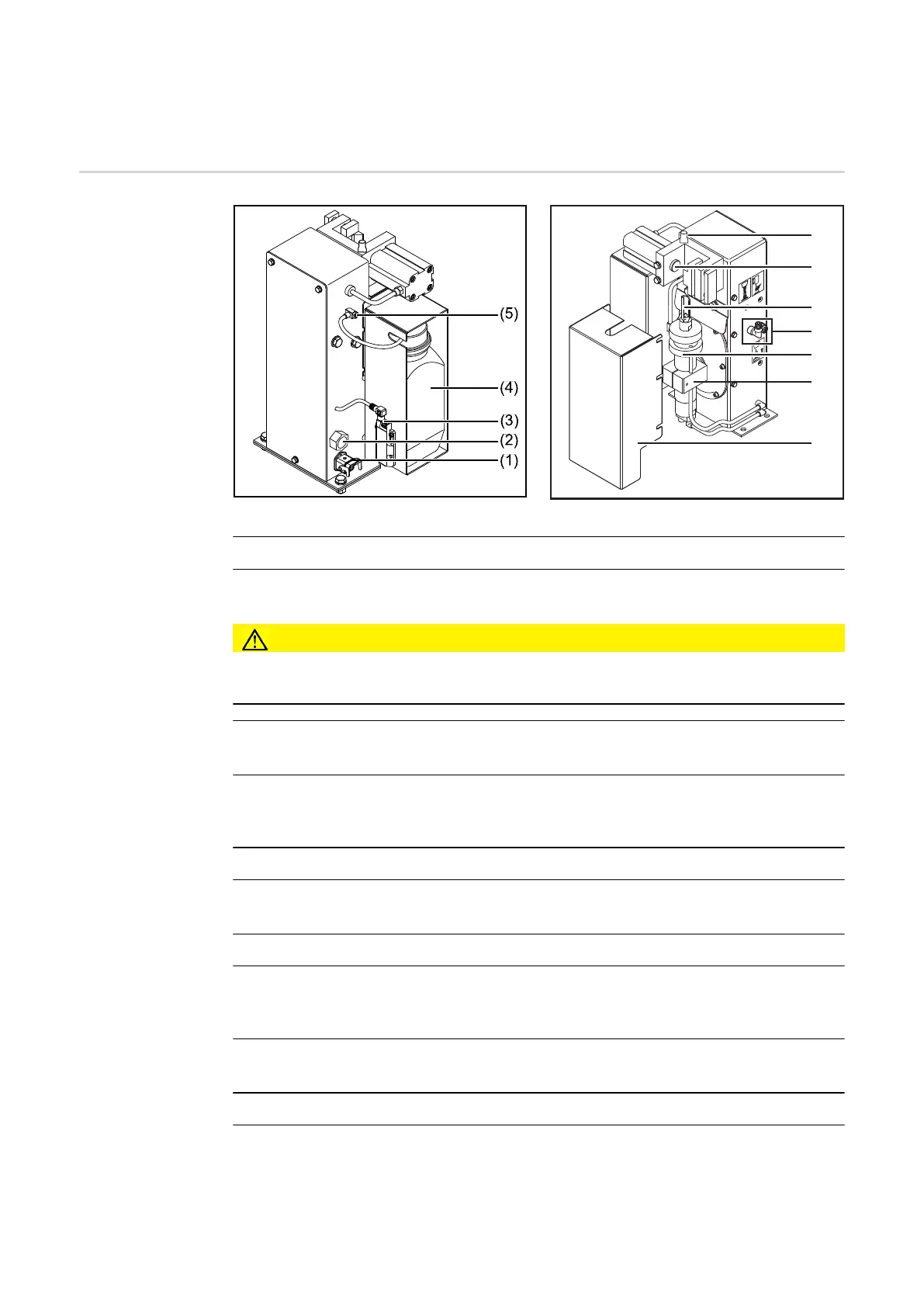

Side view Front view
No. Function
(1) Standard I/O connection socket (X1)
for a + 24 V DC supply
CAUTION!
Risk of damage to standard I/O connection (X1) supply due to overcurrent.
Secure supply against overcurrent with a 500 mA slow-blow fuse.
(2) Compressed air connection
for a dry compressed air supply at 6 bar (86.99 psi)
(3) Fill-level control sensor
emits a signal once the fill level in the parting agent container falls below a specified
level
(4) Parting agent container
(5) Parting agent adjuster
for adjusting the amount of parting agent sprayed inside the gas nozzle
(6) Protective covering
(7) Lifting device
lifts the cleaning motor and the cleaning cutter when cleaning the inside of the gas
nozzle
(8) Cleaning motor with parting-agent injection nozzle
drives the cleaning cutter
(9) Compressed air and electrical connections for wire cutter option
(10) Cleaning cutter
with internal through hole for the parting-agent injection nozzle
(7)
(6)
(9)
(10)
(11)
(12)
(8)
