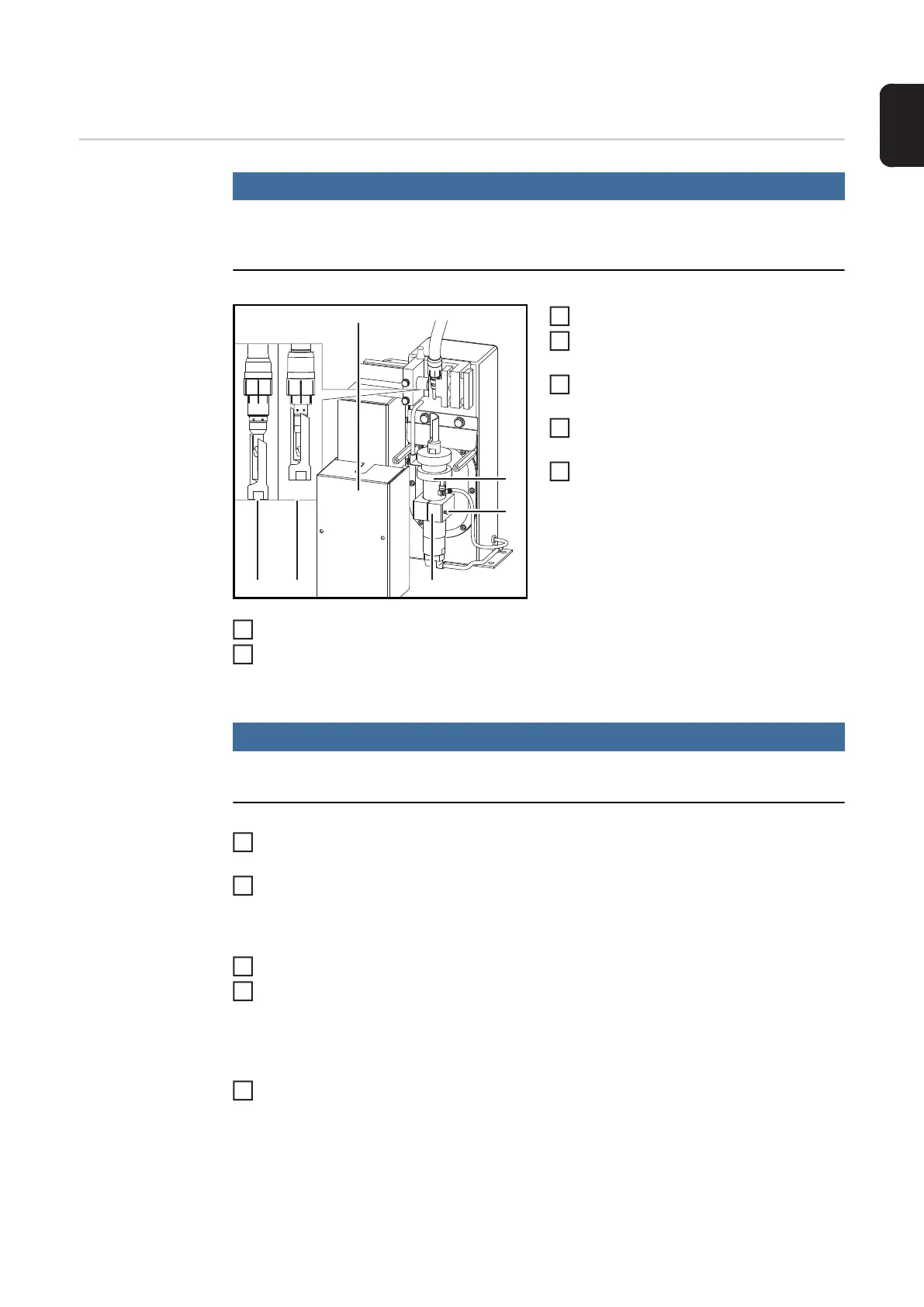

Adjusting the lifting device
Adjusting the lift-
ing device
NOTE!
The lifting device is adjusted in the same way for all Robacta Reamer V cleaning de-
vices.
Remove the protective covering (1)
Remove the gas nozzle from the torch
neck
Loosen the screw (2) on the lifting de-
vice
Ensure that the lifting device (3) is in its
lowest lift position
Move the welding torch to the cleaning
position (approx. 1 - 2 mm / 0.039 -
0.079 in. above the protective cover-
ing, centrally with respect to the clea-
ning motor)
Manually push the lifting device (3) into its highest lift position and hold in place
Manually push the cleaning motor (4) and cleaning cutter to the cleaning position
- see diagram (5) for welding torch and spatter guard
- see diagram (6) for welding torch and insulating sleeve
NOTE!
The cleaning cutter must not touch any welding torch components.
Fix the cleaning motor (4) in this position in the lifting device (3) - tighten the screw (2)
on the lifting device
Complete a function test without the gas nozzle fitted: Move the lifting device manually
to the uppermost position
- The cleaning cutter must close around the contact tip without touching it. If the
cleaning cutter touches the welding torch components, readjust the lifting device
Fit the gas nozzle to the torch neck
Complete a function test with the gas nozzle fitted: Move the lifting device manually to
the uppermost position
- The cleaning cutter must be inserted into the gas nozzle gently, without touching
it. If the cleaning cutter touches the welding torch components, readjust the lifting
device
Fit the protective covering to the cleaning device in its original position
(1)
(2)
(3)
(4)
(5)
(6)
1
2
3
4
5
6
7
8
9
10
11
12
