Fronius Robacta Reamer V Easy User Manual

47
EN

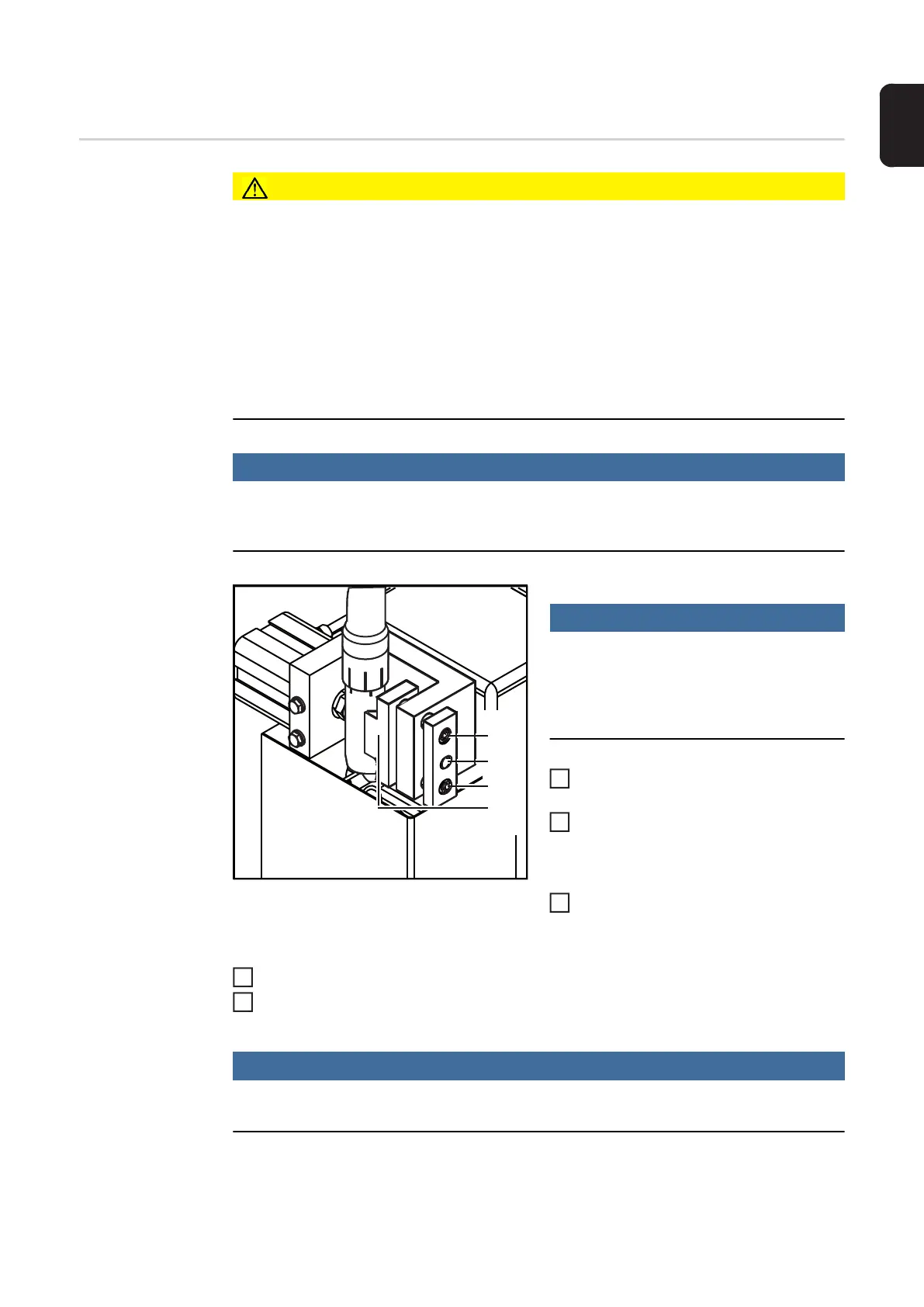

Adjust gas nozzle clamping device
Adjusting the gas
nozzle clamping
device
CAUTION!
Robacta Reamer V Easy Han6P J only:
risk of damage to the cleaning device and the welding torch if the gas nozzle clamp-
ing device is not properly adjusted.
► The gas nozzle clamping device must not be altered when using gas nozzles with an
outer diameter of 25 mm (0.98 inch) - the gas nozzle clamping device has already been
adjusted for use with gas nozzles with an outer diameter of 25 mm (0.98 inch) at the
factory.
► When using gas nozzles with an outer diameter greater/less than 25 mm (0.98 inch),
the gas nozzle clamping device must be adjusted before using it for the first time and
each time a device is replaced.
NOTE!
The gas nozzle clamping device is adjusted in the same way on the Robacta Reamer
V Easy and the Robacta Reamer V.
NOTE!
Adjust the clamping device in such a
way that no reaction forces can be trans-
ferred to the robot.
The gas nozzle must only be clamped onto
the cylindrical surface.
Loosen the Allen screws on the guide
bolts (1) and (2)
Move the welding torch to the cleaning
position
- centrally with respect to the clea-
ning motor
Using the adjusting screw (3), position
the clamping device (4) so that the
clamping device is on the gas nozzle
Tighten the Allen screws on the guide bolts (1) and (2)
Robacta Reamer V only:
Move and check the TCP tip
NOTE!
Only clamp the gas nozzle centrally above the cleaning motor.
(1)
(3)
(2)
(4)
1
2
3
4
5
