Robacta Reamer V Easy, Robacta Reamer V Easy
Han6P J control elements, connections and me-
chanical components
Robacta Reamer
V Easy, Robacta
Reamer V Easy
Han6P J control
elements, con-
nections and me-
chanical
components
NOTE!
The control elements, connections and mechanical components are shown on the
Robacta Reamer V Easy.
The control elements, connections and mechanical components are the same for the Ro-
bacta Reamer V Easy Han6P J.

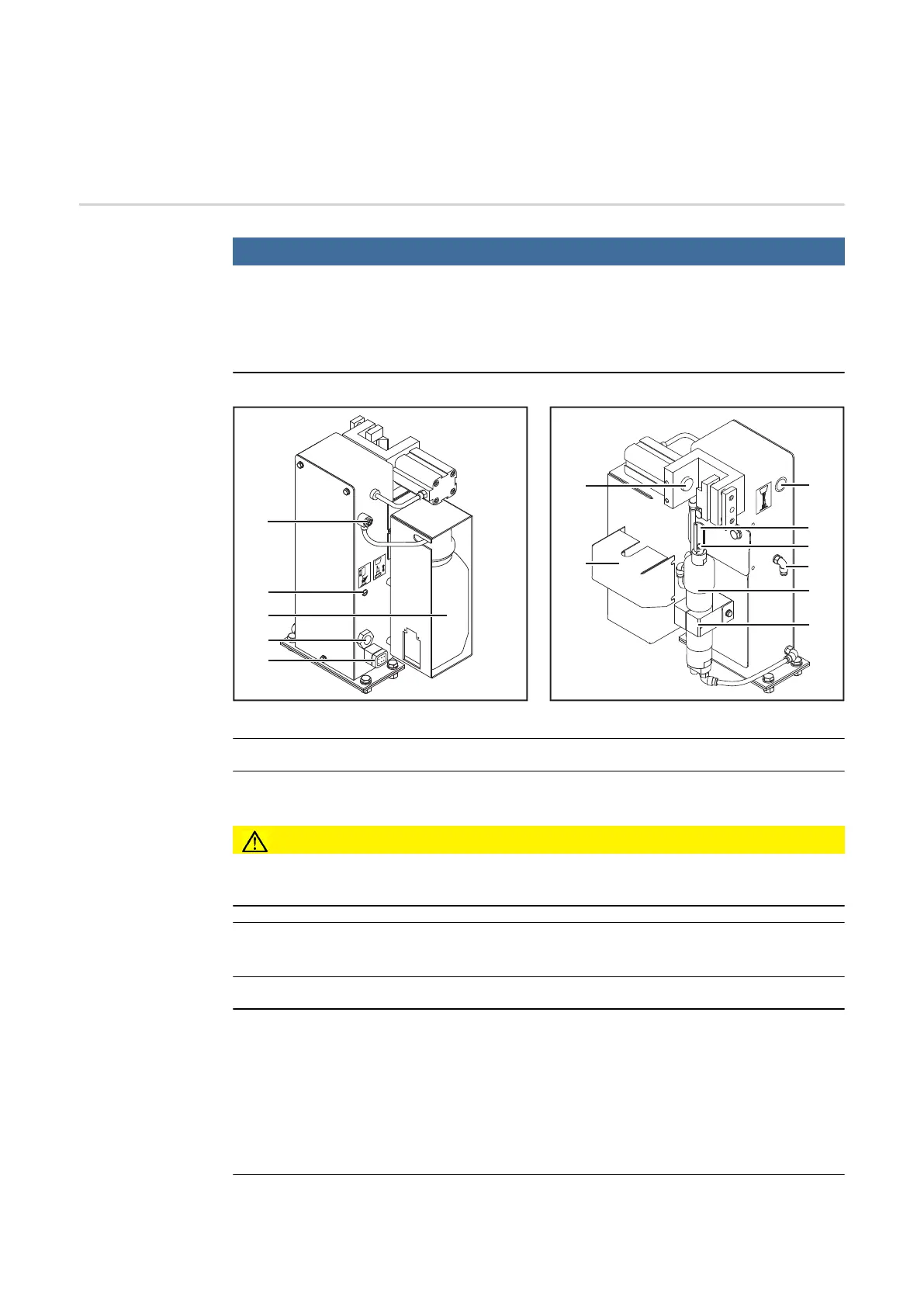

Side view Front view
No. Function
(1) Harting Han6P connection socket (X1)
for a + 24 V DC supply
CAUTION!
Risk of damage to Harting Han6P connection (X1) supply due to overcurrent.
Secure supply against overcurrent with a 500 mA slow-blow fuse.
(2) Compressed air connection
for a dry compressed air supply at 6 bar (86.99 psi)
(3) Parting agent container
(4) "Cleaning" screw
for manually testing all cleaning device functions:
- Cleaning motor on/off
- Lifting device up/down
- Gas nozzle clamping device extending/retracting
- Compressed air and parting agent supply to parting-agent injection nozzle (com-
pressed air/parting agent mixture is sprayed out of the parting-agent injection
nozzle)
(5) Parting agent adjuster
for adjusting the amount of parting agent sprayed inside the gas nozzle
(1)
(2)
(3)
(4)
(5)
(6)
(11)
(12)
(13)
(7)
(9)
(10)
(8)
