62

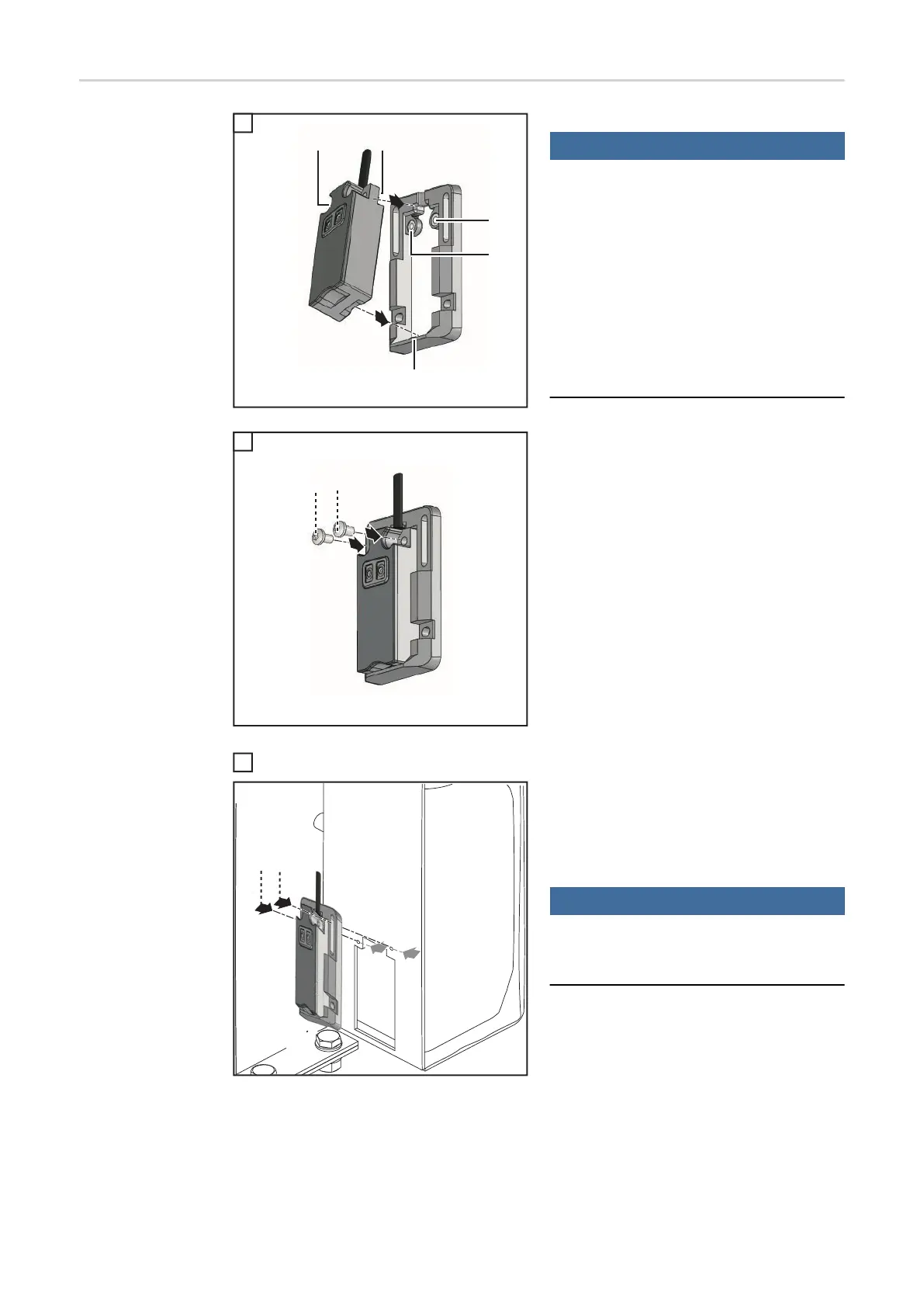

Fitting the fill-lev-
el control sensor
1
NOTE!
First press the upper part of the sensor
into the installation adapter as shown -
the sockets (1) on the installation adap-
ter must fit into the recesses (2) in the
sensor.
When the upper part of the sensor is pro-
perly lined up in the installation adapter,
press the sensor fully into the installation
adapter - the latch (3) on the installation ad-
apter must snap back over the sensor (sen-
sor audibly engages).
1
* Use the fixings supplied with the
sensor.
Screw the installation adapter and sensor on to the parting agent container housing
** Fixings are not included in the sen-
sor/installation adapter scope of
supply. The installer is responsible
for selecting the right type of fixing.
NOTE!
Ensure the fixings do not damage the
parting agent container.
(3)
(1)
(2)
(1)
(2)
2
1
1
**
2
1
2
3
****
1
1
1
1
