Manually checking Robacta Reamer V functions
General
NOTE!
Before starting the automatic cleaning process, the functions of the cleaning device
must be checked manually.
NOTE!
To ensure that the functions are checked properly, the welding torch must be in the
cleaning position.
Manually check-
ing Robacta
Reamer V func-
tions
NOTE!
When the slot for the "Lifting device up/down", "Spray in parting agent" and "Clamp
gas nozzle/Cleaning motor on" screws is positioned horizontally, function is deac-
tivated.
Disconnect the cleaning device from the robot control
Establish a compressed air supply to the cleaning device
The following must be checked when the functions are being performed:
- operation of the gas nozzle clamping device
- function of cleaning motor
1

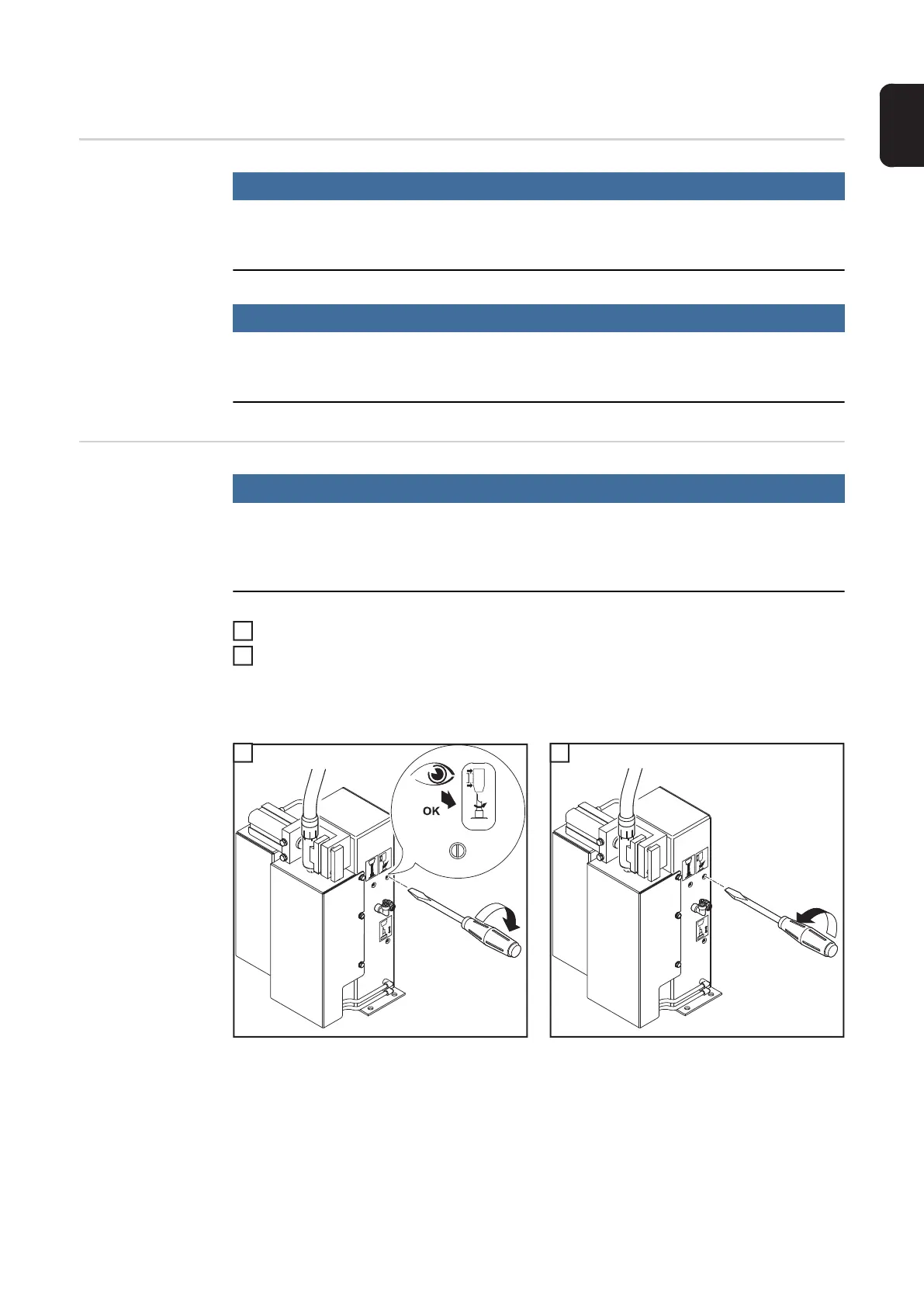

Clamp gas nozzle/cleaning motor on
2
Deactivating the functions
The following must be checked when the function is being performed:
- how far the cleaning cutter is inserted into the gas nozzle
1
2
0
1
2
1
3
1
4
