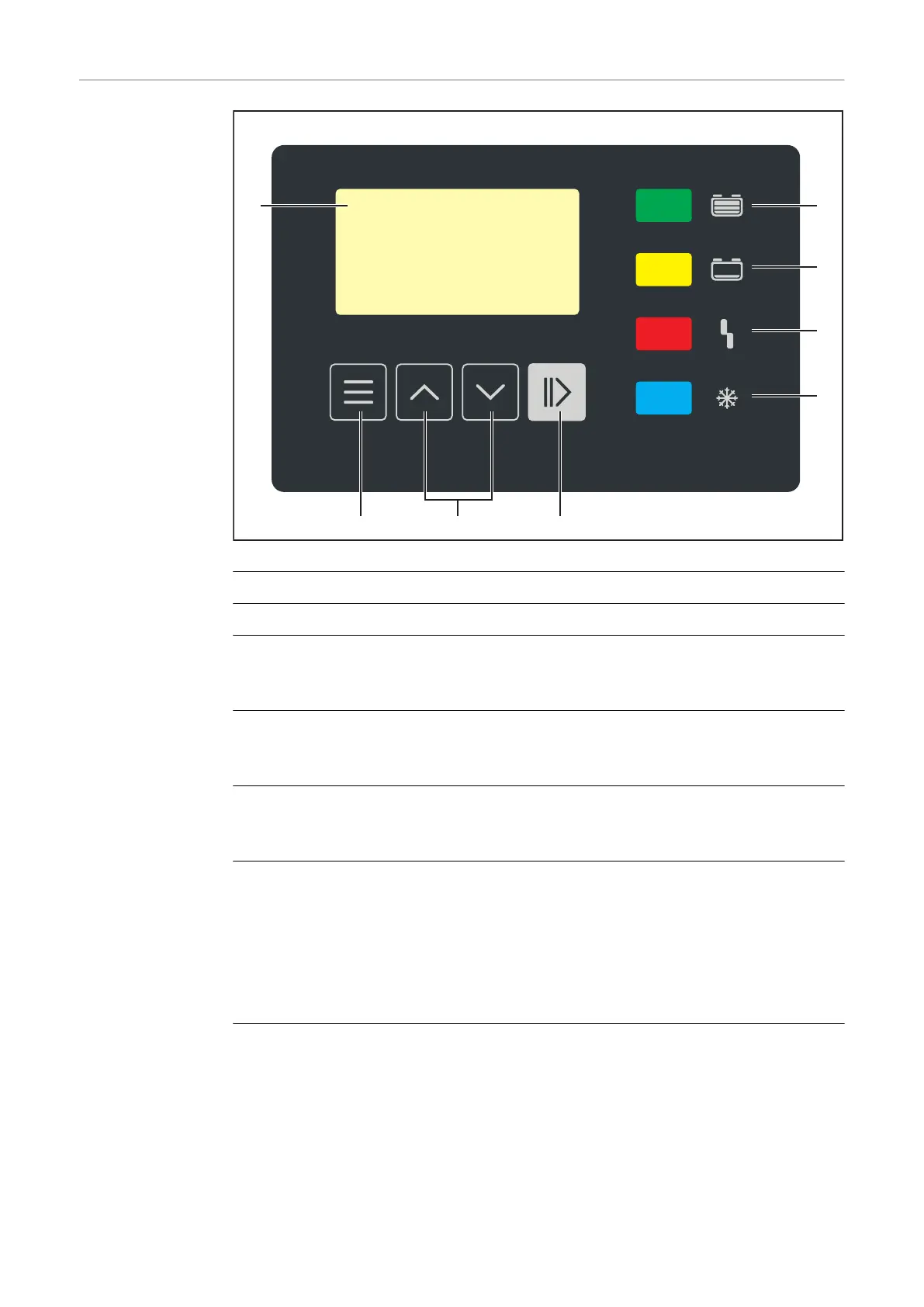

Control panel
(1) (8)
(7)
(6)
(5)
(4)(3)(2)
No. Function
(1) Display
(2) "Menu" key
Selects the desired menu.
Return to the higher-level menu.
(3) "Up/Down" keys
Selects the desired menu item.
Sets the desired value.
(4) “Pause/Start” key
For interrupting and resuming the charging process.
Confirms a menu item or setting.
(5) "Battery cooled" indicator (blue)
Indicates a cooled battery that is ready for use.
On steady: After charging has finished, the set cooling time or optionally
the battery temperature has been reached.
Flashes every second: The water refill indicator has also tripped. More in-
formation can be found under Additional functions in the “Display”
chapter.
(6) "Fault" indicator (red)
On steady: The charger outputs an error. The current conditions do not al-
low proper charging. While the red indicator is on, charging cannot take
place (charging interrupted). The relevant status code appears on the dis-
play.
Flashes briefly every 3 seconds: The charger outputs a warning. Charging
is continued despite the adverse charging parameters. The relevant status
code and the state of charge appear alternately on the display.
24
