10

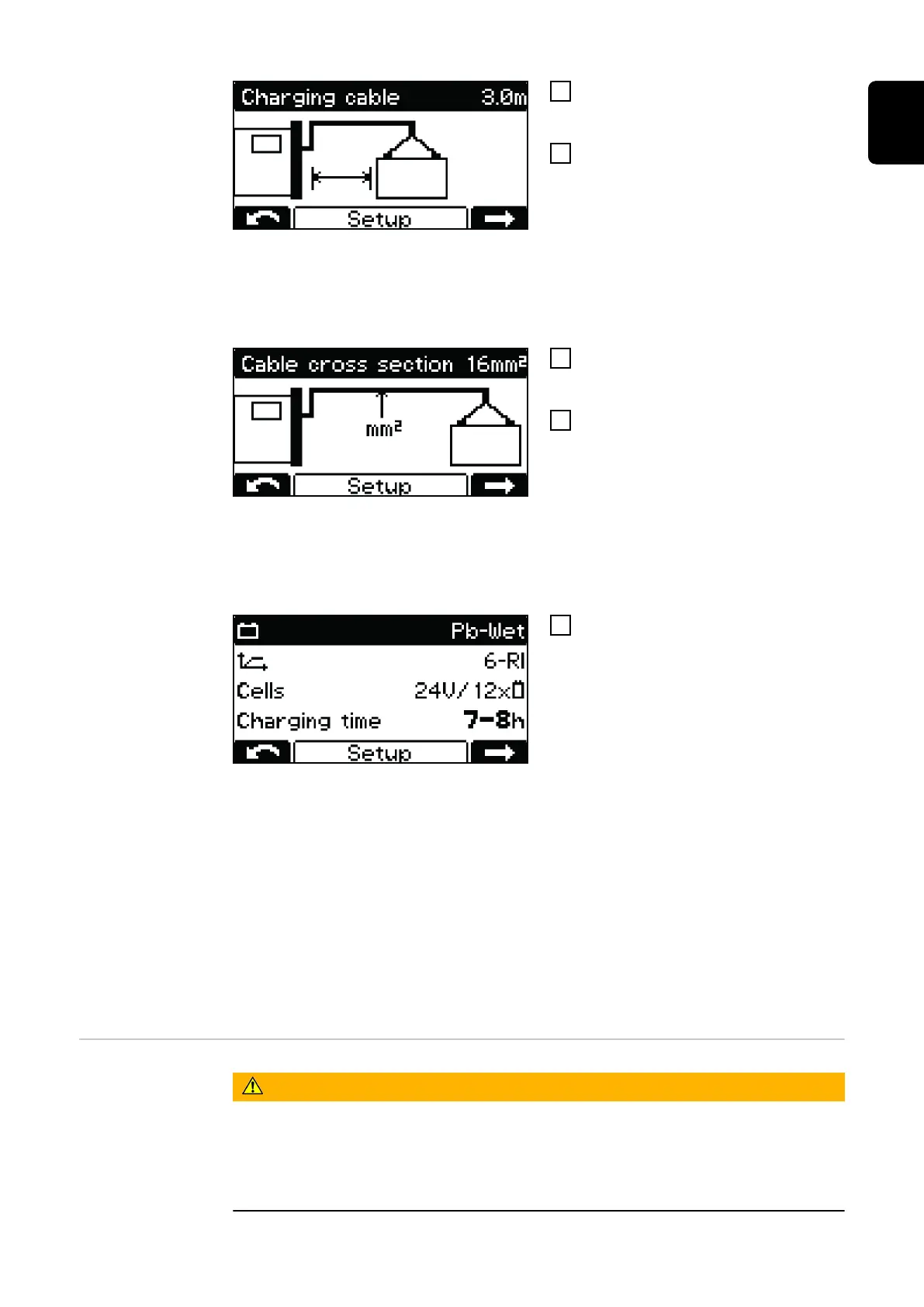

Use the "Up/Down" buttons to set
the appropriate charging cable
length (m / ft).
11
Confirm with the "Pause/Start"
button.
The battery charger is configured with
the correct charging cable length ac-
cording to the order.
An incorrectly set charging cable
length can have a negative effect on
the charging process!
12
Use the "Up/Down" buttons to set
the appropriate charging cable
cross-section (mm² / AWG).
13
Confirm with the "Pause/Start"
button.
The battery charger is configured with
the correct charging cable cross-sec-
tion according to the order.
An incorrectly set charging cable
cross-section can have a negative ef-
fect on the charging process!
14
If the displayed charging configur-
ation is correct, confirm the char-
ging configuration with the "Pause/
Start" button.
The battery charger is pre-configured
according to the order.
If the battery charger has been ordered without an additional configuration, the
following settings are set as default:
-
Type of battery Pb-WET (for PzS, GiS)
-
Curve 6 - RI
-
Maximum number of cells intended for the battery charger
-
Charging time 7–8 h
If the configuration does not match the battery used, the parameters must be
adjusted accordingly.
Detailed information on the battery charger parameters can be found in the
"Configuration mode" section of the "Display" chapter Configuration mode.
Starting the
charging process
WARNING!
Danger from leaking battery acid or explosion when charging defective batter-
ies.
This can result in severe personal injury and damage to property.
▶
Before starting the charging process, make sure that the battery to be
charged is undamaged.
