Use the "Up/Down" keys to switch between the pages for each stored char-
ging process.

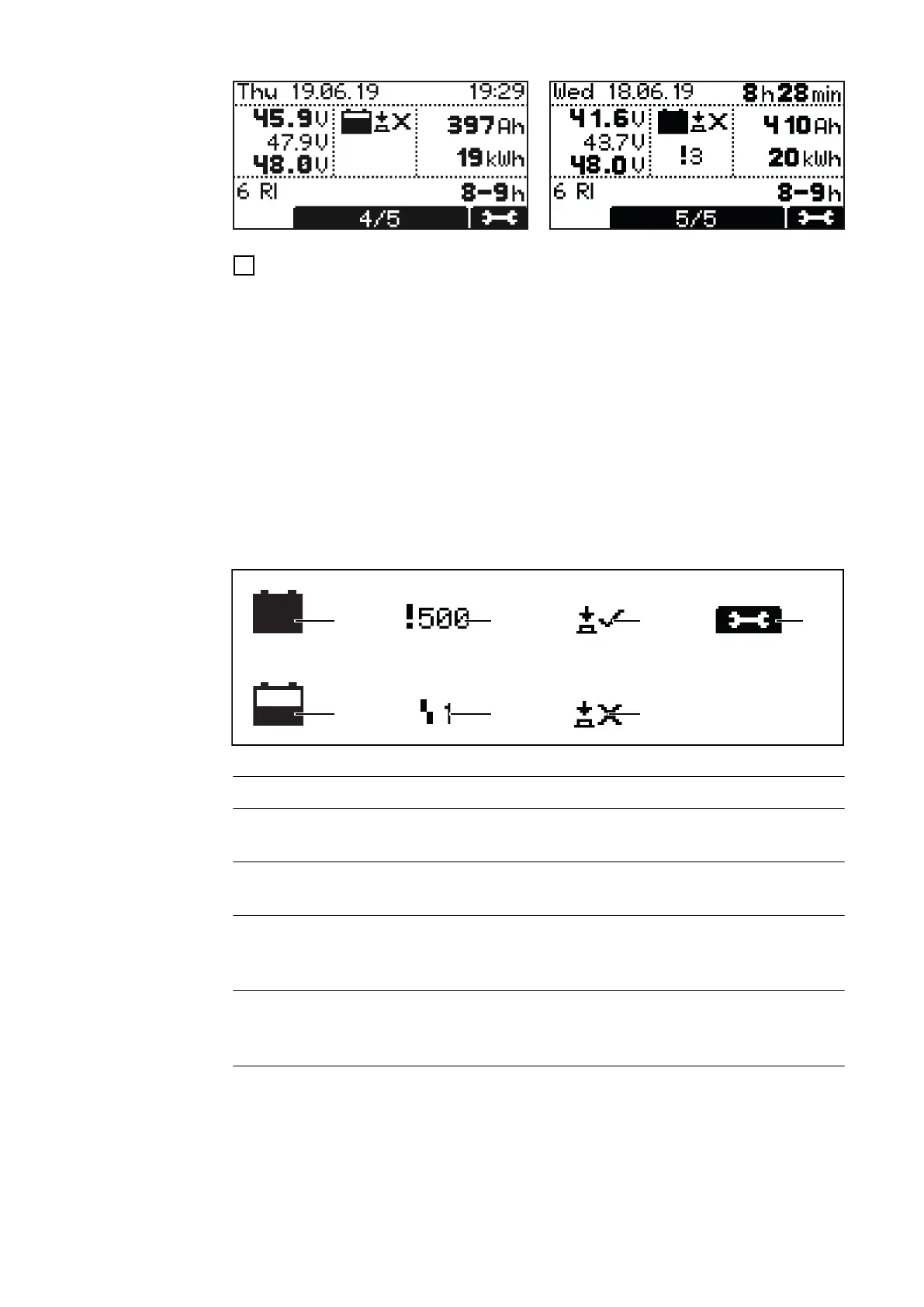

Contents of the display window
-
Charge start date, e.g.: Thursday, 19/06/14.
-
Charge start time, e.g.: 19:29 or charging time, e.g.: 8 h 28 min.
-
Voltage at charge start, e.g.: 45.9 V.
-
Voltage after 5 minutes, e.g.: 47.9 V.
-
Voltage at charge end, e.g.: 48.0 V.
-
Ah consumed, e.g.: 397 Ah.
-
kWh consumed, e.g.: 19 kWh.
-
Charging characteristic, e.g.: 6 RI.
-
Set charging time, e.g.: 8 - 9 h or set Ah, e.g.: 400 Ah or set charge end time
(not shown).
Symbols shown
No. Function
(1) Full battery
Charging has been completed.
(2) Empty battery
Charging has not been completed.
(3) Exclamation mark with number
Warning issued, with code for the corresponding status code. Detailed in-
formation can be found in the Status codes section.
(4) Symbol with number
Error issued, with code for the corresponding status code. Detailed in-
formation can be found in the Status codes section.
(5) Key symbol with a tick
Charging was stopped properly using the "Pause/Start" key.
