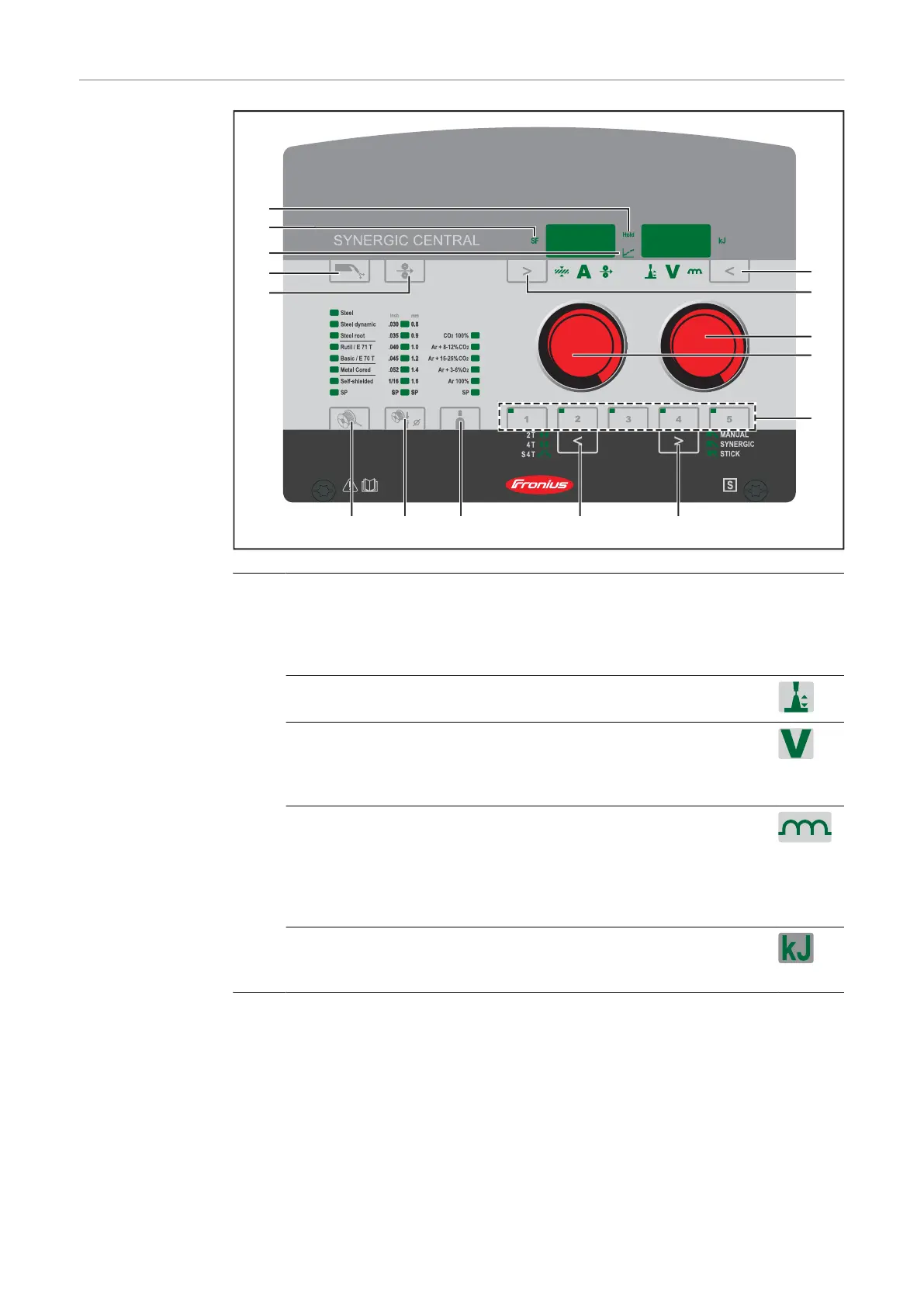

Synergic control
panel
(1)
(2)
(3)
(4)
(5)
(6)(7)
(14)
(15)
(11)
(12)
(10) (8)(9)
(13)
(1) "Parameter selection" button (right)
for selecting the following welding parameters and for changing parameters in
the Setup menu
The relevant symbol lights up when a welding parameter is selected.
- Arc length correction
for correcting the arc length
- Welding voltage in V *)
Before the start of welding, the system automatically displays a
standard value based on the programmed parameters. During
welding, the actual value is displayed.
- Dynamic
for influencing the short-circuiting dynamic at the moment of
droplet transfer
- ... harder, more stable arc
0 ... neutral arc
+ ... soft, low-spatter arc
- Real Energy Input
for displaying the energy applied during the welding operation.
**)
