Fitting/connecting the system components
Information on
system compon-
ents
The steps and activities described below include references to various system compon-
ents, such as
- Trolley
- Cooling units (TSt 3500c only)
- Welding torches, etc.
For more detailed information about installing and connecting the system components,
please refer to the appropriate operating instructions.
Mounting on the
trolley
WARNING!
Work that is carried out incorrectly can cause serious injury and damage.
▶
The following activities must only be carried out by trained and qualified personnel.
▶
All instructions in the section headed "Safety rules" must be observed.

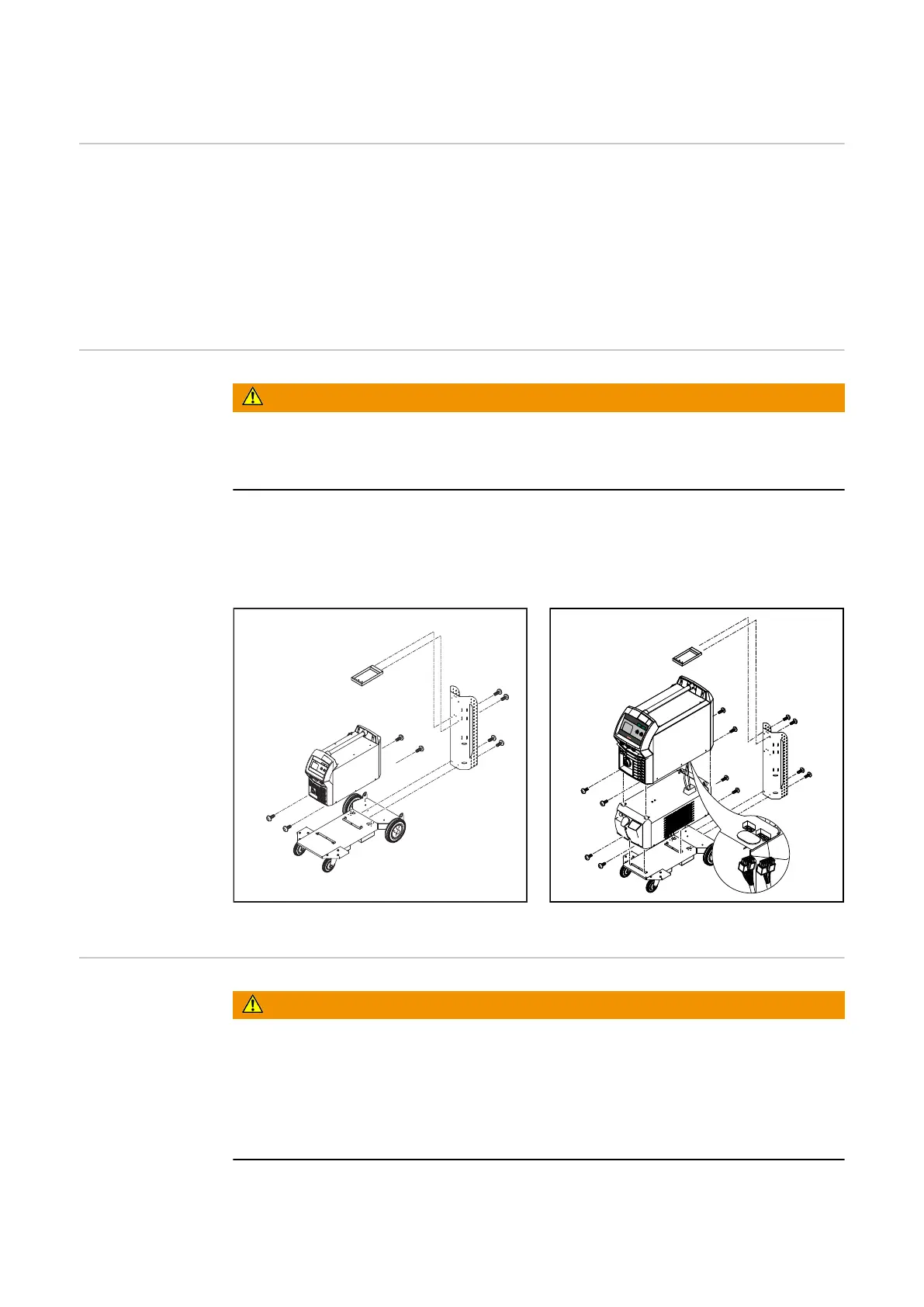

The following diagram shows an overview of how the individual system components are
put together.
For detailed information about the individual steps, please refer to the corresponding
operating instructions for the system components.
TSt 2700c TSt 3500c
Connecting the
gas cylinder
WARNING!
If gas cylinders topple over, there is a risk of very serious injury and damage.
When using gas cylinders
▶
place them on a solid, level surface in such a way that they remain stable
▶
secure the gas cylinders to prevent them from falling over
▶
fit the optional wirefeeder holder
▶
follow the gas cylinder manufacturer's safety rules.
52
