Fronius TransSteel 2700c

Connections, switches and mechanical compon-
ents

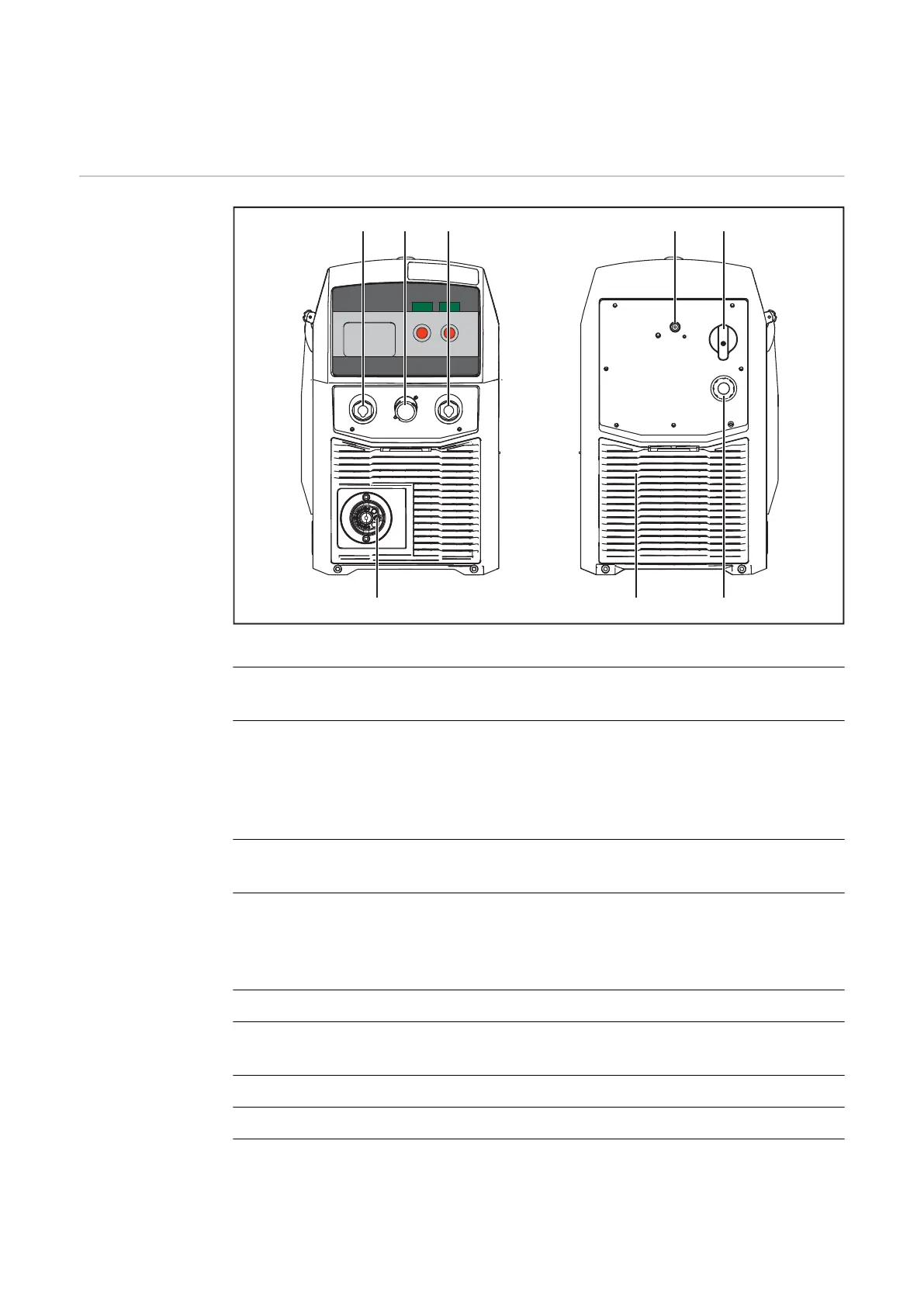

Front and rear
sides, TSt 2700c
(1) (7)(8)
(2) (3) (4) (5) (6)
TSt 2700c
(1) Welding torch connection
for connecting the welding torch
(2) (-) - Current socket with bayonet latch
used for
- connecting the grounding (earthing) cable during MIG/MAG welding
- connecting the electrode cable or grounding (earthing) cable during MMA
welding (depending on the type of electrode used)
(3) LocalNet connection
Standardised connection for remote control
(4) (+) - Current socket with bayonet latch
used for
- connecting the electrode cable or grounding (earthing) cable during MMA
welding (depending on the type of electrode used)
(5) Shielding gas connection
(6) Mains switch
for switching the power source on and off
(7) Mains cable with strain relief device
(8) Air filter
