Installing the Storage
465
3

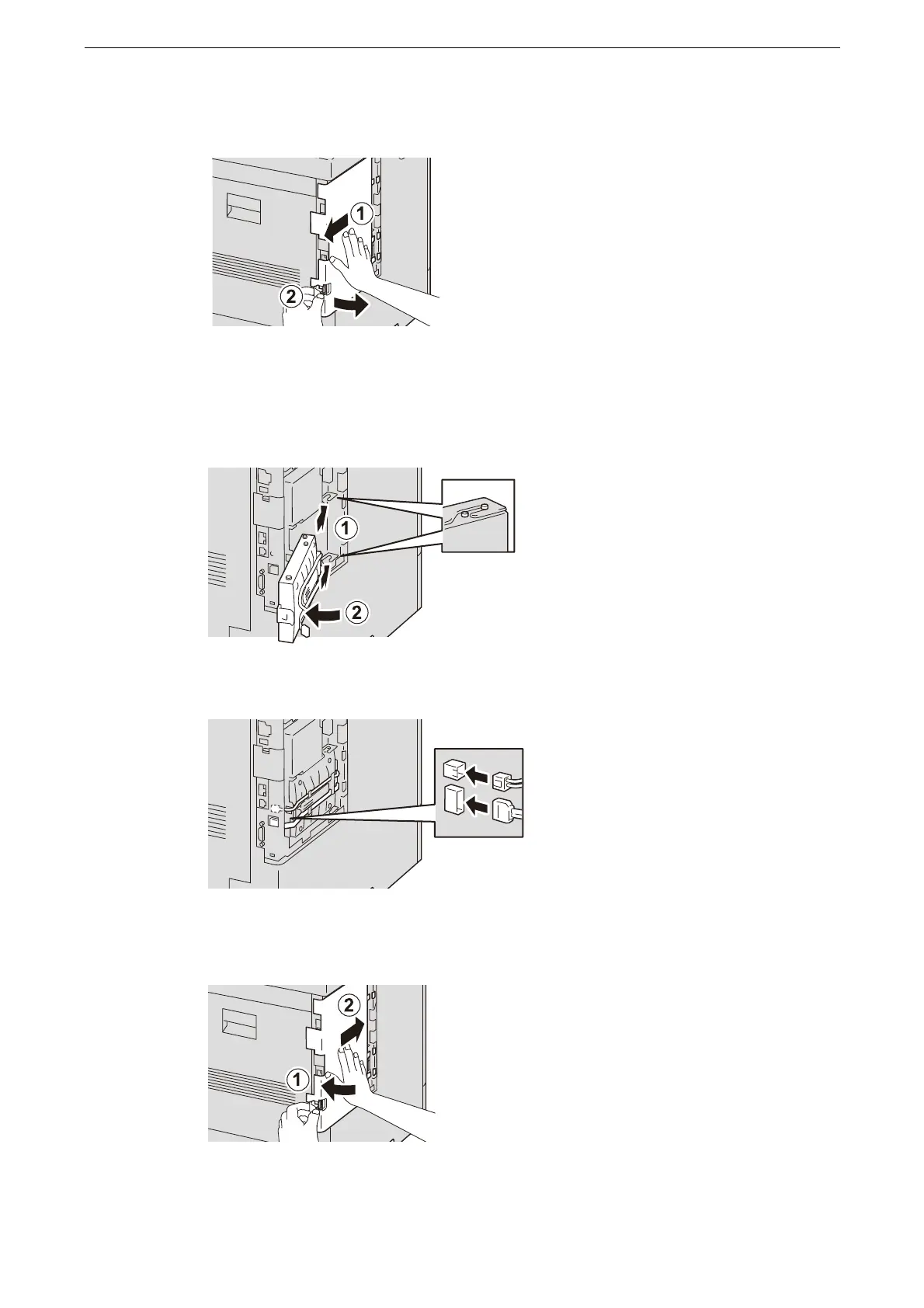

Remove the left side cover by sliding it toward the back of the device.
If the storage (optional) has already been installed, remove it.
4
With the connector cable coming out of the storage (optional) on the outside, insert it into
the frame on the controller board.
Fit the protruding section of the storage (optional) correctly into the indentation in the
frame.
5
Connect the storage (optional) connector cable to the connector on the controller board.
6
Slide the cover on the left side toward the front of the device, and insert the protrusion into
the hole on the main unit.
